VOGUISH. BRILLIANT. DURABLE.
Trio-Loop ARGB Fan
RGB Sync With Motherboard or Default Lighting
Durable Teflon Tube
Mirror Finish Pump
Hydraulic Bearing
SATA Power Connector
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Trio-Loop ARGB Fan
RGB Sync With Motherboard or Default Lighting
Durable Teflon Tube
Mirror Finish Pump
Hydraulic Bearing
SATA Power Connector

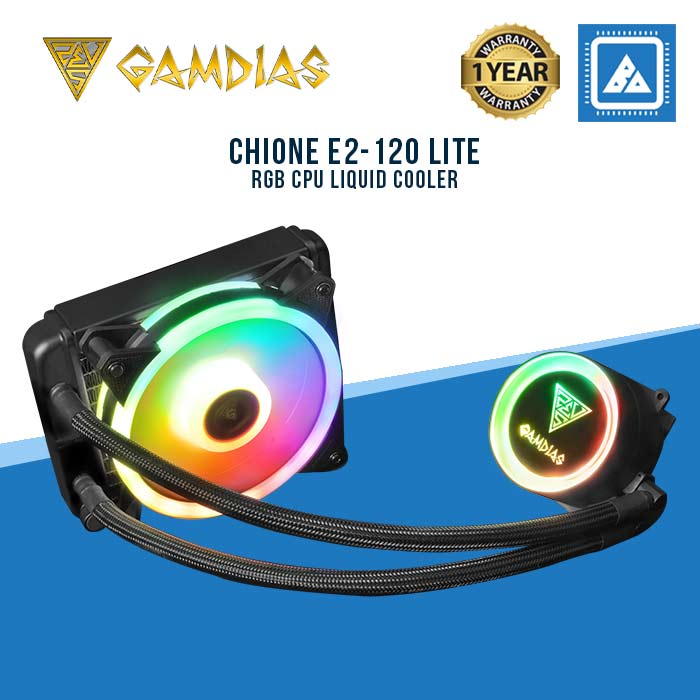

The CHIONE E2-120 LITE is a durable and compact liquid cooler featuring a trio-looped ARGB fan with silent hydraulic bearing, a durable Teflon tube, and an RGB mirror-finished pump to provide brilliant lighting and outstanding cooling performance.
THRICE THE FUN
CHIONE E2 takes a Trio-loop design with three fully addressable RGB lighting rings around the front, back, and center of the fan.
MIRROR STYLE PUMP
The unique and polished mirror pump design gives a clean finish to your set-up by fully reflecting the beauty and luminance of your case build.
DURABLE AND ELEGANT
The cooler comes with the leak-free Teflon Tube which makes this All-in-One system extremely low maintenance.
STRAIGHTFORWARD INSTALLATION
CHIONE does not take much space and offers different options for installation. The compact design makes the installation and maintenance simple.
SPECIFICATIONS
Model
CHIONE E2-120 LITE
Package Contents
Cooler1
Fan1
Thermal Grease1
Mounting KitYes
LIQUID COOLER - FAN
Dimensions120 x 120 x 25 mm
Speed1800 RPM±10%
Noise Level29 dBA
Air Flow69 CFM
Air Pressure2.7 mmH2O
BearingHydraulic
Rated Voltage12 V (Fan) / 5V(LED)
ConnectorSATA
Support Motherboard RGB Sync Connectors5V 3-pin addressable (digital) RGB header Only
Support PWM ControlNo
LIQUID COOLER
Radiator Dimensions151 x 119 x 27 mm
Tube MaterialTeflon
Base Plate MaterialCopper
Radiator MaterialAluminum
Sleeved TubeYes
Pump Rated Voltage12 V (Pump) / 5V(LED)
Pump Connector3 Pin
CompatibilityLGA2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / LGA1200
TDP180W± 10%
