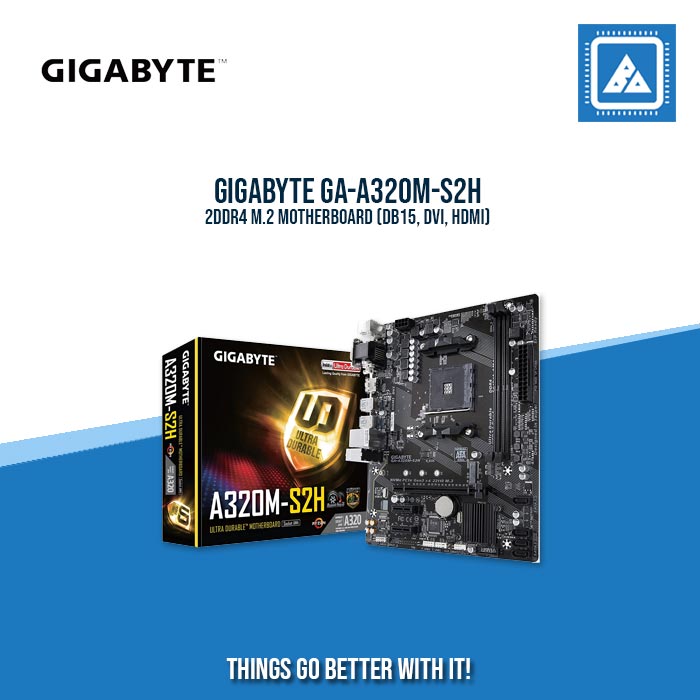

GIGABYTE GA-A320M-S2H 2DDR4 M.2 MOTHERBOARD (DB15, DVI, HDMI)
GIGABYTE GA-A320M-S2H 2DDR4 M.2 MOTHERBOARD (DB15, DVI, HDMI)

GIGABYTE GA-A320M-S2H 2DDR4 M.2 MOTHERBOARD (DB15, DVI, HDMI)

Product SKU: N/A
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Wishlist Compare
₱3,240.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • GIGABYTE™ UEFI BIOS
  • All New GIGABYTE™™ APP Center, Simple and Easy Use
  • CPU
    1. AM4 Socket: Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A320
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
      * Actual support may vary by CPU.
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB

    * Actual support may vary by CPU.
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)*
      * Actual support may vary by CPU.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
      * Actual support may vary by CPU.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
    (Note) Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
  • USB
    Chipset:
    1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x USB 3.1 Gen 1 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    13. 1 x speaker header
    14. 1 x Clear CMOS jumper
    15. 1 x chassis intrusion header
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x HDMI port
    6. 4 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 19.5cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
