Technical Specifications

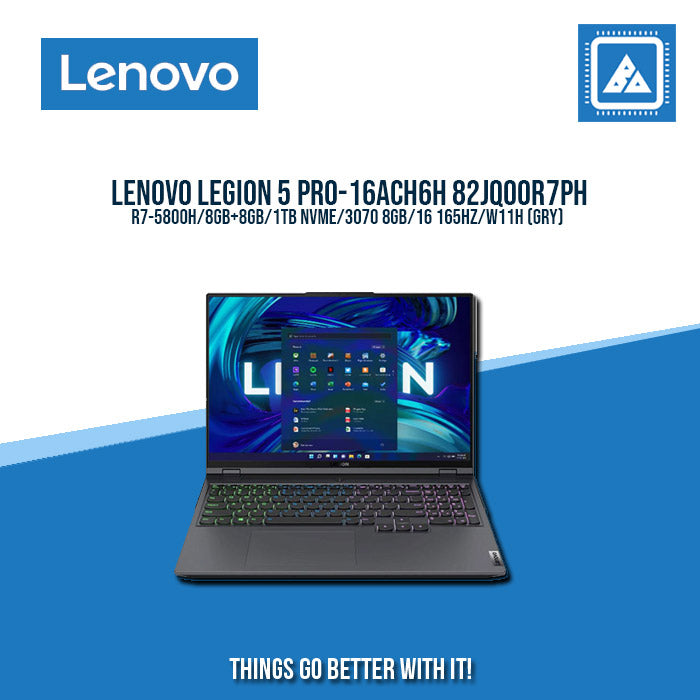

Model:  Lenovo Legion 5 Pro 16ACH6H 82JQ00R7PH

PERFORMANCE
Processor:  AMD Ryzen 7 5800H (8C / 16T, 3.2 / 4.4GHz, 4MB L2 / 16MB L3)
Graphics:  NVIDIA GeForce RTX 3070 8GB GDDR6, Boost Clock 1560 / 1620MHz, TGP 140W
Chipset:  AMD SoC Platform

Memory:  2x 8GB SO-DIMM DDR4-3200
Memory Slots:  Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory:  Up to 32GB DDR4-3200 offering

Storage:  1TB SSD M.2 2280 PCIe 3.0x4 NVMe
Storage Support:  Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 512GB ? M.2 2280 SSD up to 1TB

Card Reader:  None

Optical:  None

Audio Chip:  High Definition (HD) Audio, Realtek ALC3306 codec

Speakers:  Stereo speakers, 2W x2, Nahimic Audio

Camera:  720p with E-camera Shutter

Microphone:  2x, Array

Battery:  Integrated 80Wh
Max Battery Life:  MobileMark 2018: 4.2 hr (discrete mode) or 8.1 hr (hybrid mode)

Power Adapter:  300W Slim Tip (3-pin)

DESIGN
Display:  16" WQXGA (2560x1600) IPS 500nits Anti-glare, 165Hz, 100% sRGB, Dolby Vision, HDR 400, Free-Sync, G-Sync, DC dimmer
Touchscreen:  None

Color Calibrator:  Factory Color Calibration

Keyboard:  4-Zone RGB Backlit, English

Case Color:  Storm Grey (Top), Black (Bottom)

Surface Treatment:  Anodizing

Case Material:  Aluminium (Top), Aluminium (Bottom)

Dimensions (WxDxH):   356 x 260.4-264.4 x 21.7-26.85 mm (14.02 x 10.25-10.41 x 0.85-1.07 inches)

Weight:  2.45 kg (5.4 lbs)

CONNECTIVITY
Ethernet 100/1000M
WLAN + Bluetooth Wi-Fi 6 11ax, 2x2 + BT5.1

Standard Ports
3x USB 3.2 Gen 1
1x USB 3.2 Gen 1 (Always On)
1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4)
1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery and DisplayPort 1.4)
1x HDMI 2.1
1x Ethernet (RJ-45)
1x Headphone / microphone combo jack (3.5mm)
1x Power connector
