Product Specifications
Product No.

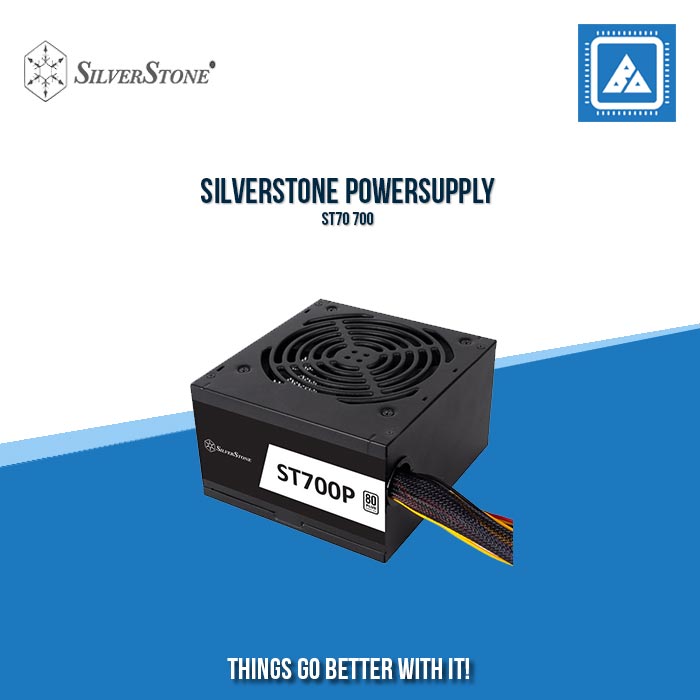

SST-ST700P
Model (safety certification)
SST-ST70F-ES230
Color
Black (lead-free paint)
Max. DC Output
700W
Power density
388W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 22A | 22A | 54A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V
130W
Combined +12V
648W
Input Voltage
180 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.（PF>0.9 at Full Load）
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Voltage Protection
Short Circuit Protection
Connectors
1 x 24 / 20-Pin motherboard connector
1 x 8-Pin EPS connector and 1 x 8 / 4-Pin ATX 12V connector
4 x 8 / 6-Pin PCIE connectors
4 x SATA connectors
3 x 4-Pin Peripheral connectors + 1 x 4-Pin Floppy connector
1 x 8-Pin EPS connector and 1 x 8 / 4-Pin ATX 12V connector
4 x 8 / 6-Pin PCIE connectors
4 x SATA connectors
3 x 4-Pin Peripheral connectors + 1 x 4-Pin Floppy connector
Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Certification
80 PLUS
Form factor
ATX
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.44 kg
