PM01-RGB
￭ Includes three 140mm RGB LED fan guards with built-in RGB LED strips for advanced lighting effect
￭ Oversized front panel mesh design inspired by supercar intake grill
￭ Removable filters with positive air pressure design for dust reduction
￭ Built-in dual-mode LED light controller for adjusting colors and modes
￭ Super clean internal look with PSU and drive bay cover
￭ Includes 8 in 1 PWM fan hub for fan control and cable management
￭ Full tempered-glass side panel
Remark
Single color mode：OFF > white > red > blue > green > light green > light blue > purple > single color breathing
Single color breathing mode：white > red > blue > green > light green > light blue > purple > gradient mode
Gradient mode：breathing gradient > color gradient > OFF
Sequence：OFF > single color mode > single color breathing mode > gradient mode > OFF
Press for 3 sec to turn off light at any time, lightly press again to resume operation mode prior to turn off.
| Motherboard RGB default mode description | |
|---|---|
| ASROCK | When RGB devices are connected without software, some models will display single color while others will default to multi-color animation display. |
| ASUS | When RGB devices are connected without software, they will default to multi-color demo mode. |
| BIOSTAR | When RGB devices are connected without software, they will default to blue color display. |
| Gigabyte | When RGB devices are connected without software, some models will display single color while others will default to multi-color animation display. |
| MSI |
When RGB devices are connected without software, they will default to single color display |
SPECIFICATIONS

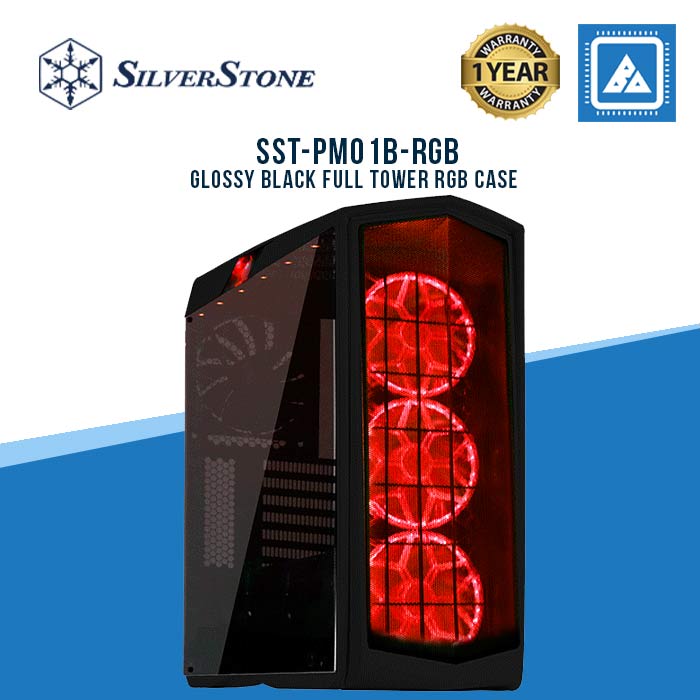

| Model No. | SST-PM01B-RGB (black + RGB LED + tempered glass window) SST-PM01C-RGB (matte black + RGB LED + tempered glass window) SST-PM01W-RGB (white + RGB LED + tempered glass window) |
|
| Material | Plastic outer shell, steel body, tempered glass side panel | |
| Motherboard | ATX (up to 12" x 10.7"), Micro-ATX | |
| Drive bay | External | -- |
| -- | ||
| Internal | 2.5" or 3.5" x 4, 2.5" x 5 | |
| Cooling system | Front | 3 x 120mm / 140mm fan slot (includes 3 x 140mm fan + RGB LED fan guards) |
| Rear | 1 x 120mm / 140mm fan slot (includes 1 x 140mm fan) | |
| Side | -- | |
| Top | 3 x 120mm fan slot or 2 x 140mm fan slot | |
| Bottom | -- | |
| Internal | -- | |
| Radiator support | Front | 2 x 120mm ; 1 x 240mm / 280mm / 360mm |
| Rear | 1 x 120mm / 140mm | |
| Top | 2 x 120mm ; 1 x 240mm / 280mm / 360mm* | |
| Bottom | N/A | |
| Expansion slot | 7 | |
| Front I/O port | USB 2.0 x 2 USB 3.0 x 2 Audio x 1 MIC x 1 |
|
| Power supply | Standard PS2(ATX) | |
| Expansion card | Support graphics card up to 16.5" (419mm), width restriction - 6.88" (174mm) | |
| Limitation of CPU cooler | 180mm | |
| Limitation of PSU | 240mm | |
| Net weight | 10.1kg | |
| Dimension | 220mm (W) x 571mm (H) x 560mm (D), 70.3 Liters 8.66" (W) x 22.48" (H) x 22.05" (D), 70.3 Liters |
|
| Extra | Built-in RGB LED controller** | |
