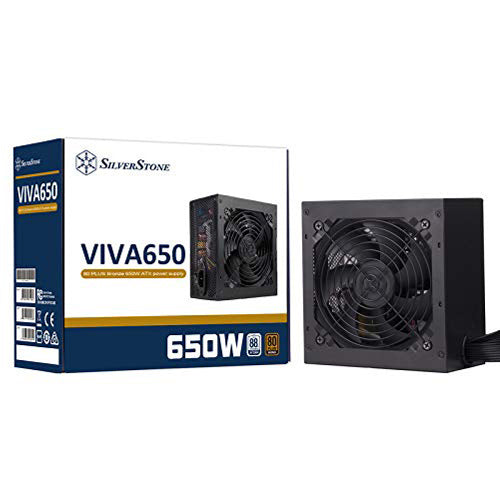

Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables
Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables
Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables
Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables
Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables
Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables
Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables
Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables

Viva 650W | 750W Power Supply 80Plus Bronze Non Modular Flat Cables

Product SKU: Viva 650W | 750W Power Supply-1
Available:
Only 5 items in stock
5 items in stock
In stock
Out of stock
Back in stock
Wishlist Compare
₱3,350.00
₱4,150.00
WATTS
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description

￭ High efficiency with 80 PLUS Bronze certification

￭ 24/7 continuous power output with 40℃ operating temperature

￭ Class-leading single +12V rail

￭ Silent running 120mm fan with 18 dBA minimum

￭ PCIe 8 pin and PCIe 6 pin connectors support

￭ All black flat cables

￭ Multiple protection circuitry

￭ Active PFC

SPECIFICATIONS

Product No.
SST-VA650-B
Max. DC Output
650W
Power density
360W per liter
Load Range

 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 20A 20A 54A 3.0A 0.3A
Peak (Amps)
 / / / / /
Min.(Amps)
 2.05A 2.05A 9.2A 0.41A 0.05A
Range (%)
 ±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
Model (safety certification)
SST-ET650
Color
Black（Lead-Free Paint）
Combined +3.3V & +5V
120W
Combined +12V
648W
Input Voltage
100 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
82% ~ 85% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector (500mm)
2 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm)
4 x 8 / 6-Pin PCIe connector ("500mm / 100mm" x 2)
6 x SATA connector ("500mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
Cooling System
Single 120mm silent fan
Form factor
Noise Level
18dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.52 Kg
Certification
80 PLUS Bronze
Other
GPU Support list
Compatible with ATX12V v2.4
