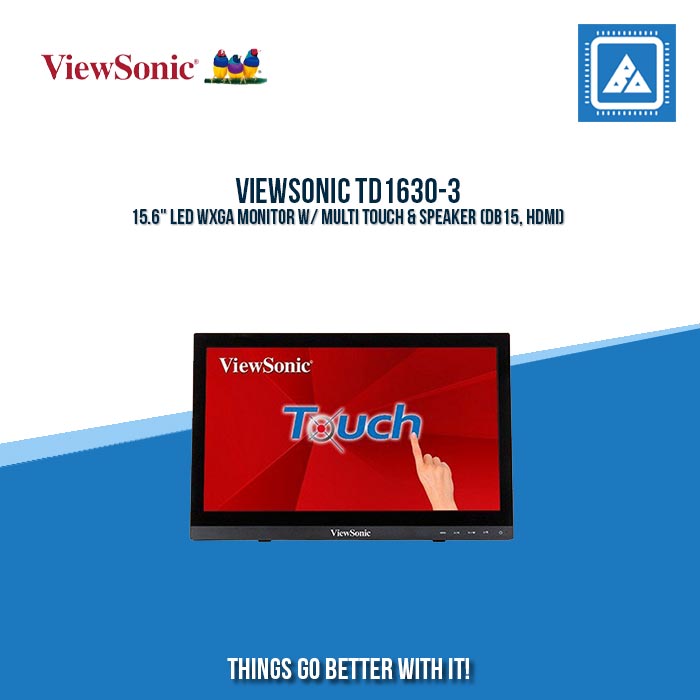

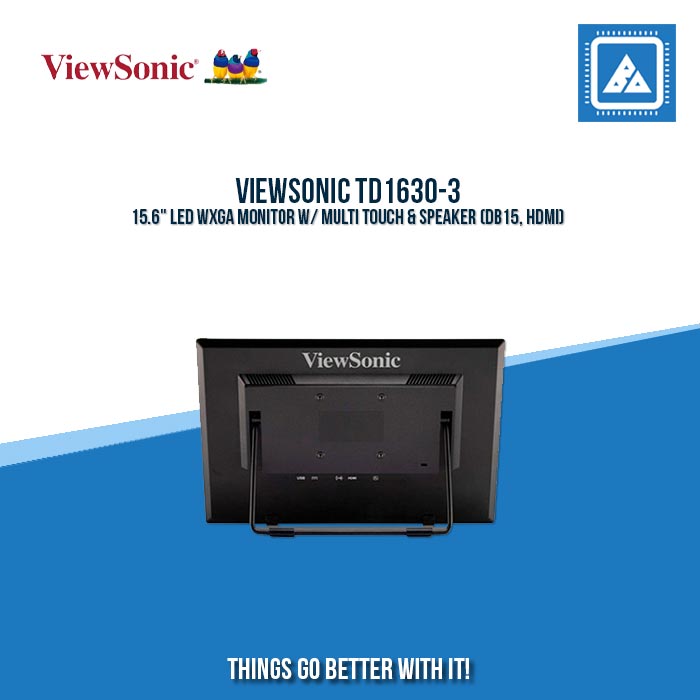

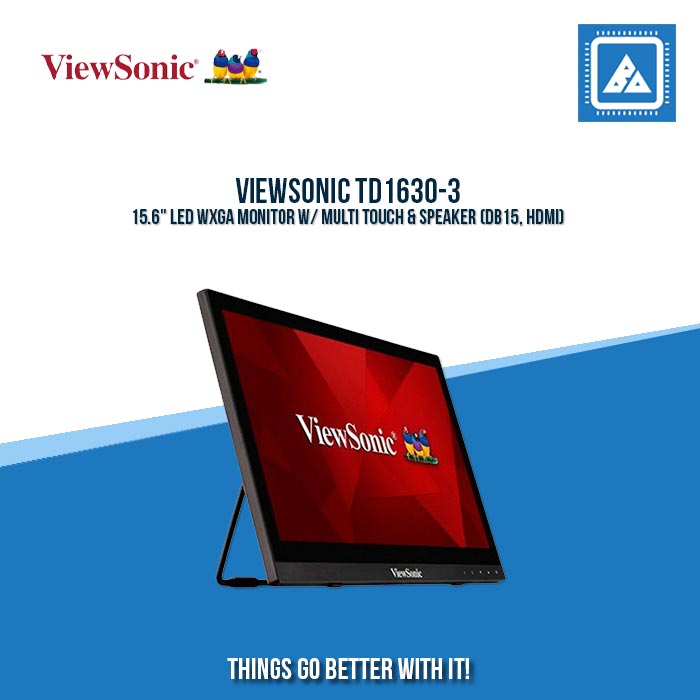

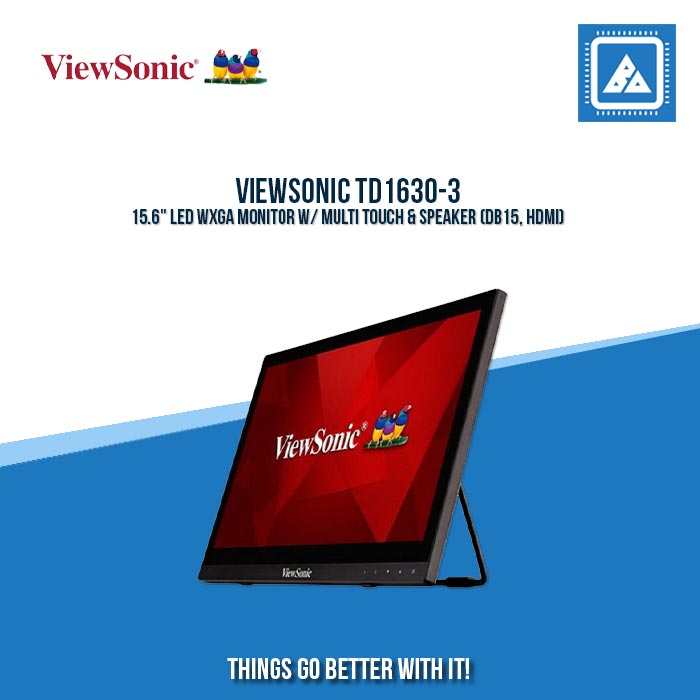

The ViewSonic TD1630-3 is a 15.6" LED monitor with WXGA resolution (1366 x 768) that features multi-touch capabilities and built-in speakers. This monitor is designed to provide a versatile and interactive display experience. Here's a product description:
The ViewSonic TD1630-3 is a 15.6-inch LED monitor that combines compact design with cutting-edge functionality. With a WXGA resolution of 1366 x 768, it delivers crisp and vibrant visuals, making it ideal for a wide range of applications. What sets this monitor apart is its multi-touch capability, allowing users to interact with the screen using touch gestures, making it perfect for interactive presentations, educational purposes, or creative work.
In addition to its touch functionality, the TD1630-3 also features built-in speakers, eliminating the need for external audio devices. This is perfect for users who require audio for their multimedia content or video conferencing.
Connectivity is made easy with multiple input options, including DB15 and HDMI ports, ensuring compatibility with various devices. Whether you're connecting it to a computer, laptop, or other multimedia sources, this monitor offers versatility and convenience.
The ViewSonic TD1630-3 is a sleek and compact monitor, making it suitable for both office and home environments. Its space-saving design ensures it can easily fit into various settings.
This monitor is a versatile and interactive solution, suitable for a range of tasks, from productivity and entertainment to collaborative work and creative projects. Experience the convenience of touch interactivity and enjoy vibrant visuals and audio with the ViewSonic TD1630-3.
| Display | Specifications |
|---|---|
| Display Size (in.) | 16 |
| Viewable Area (in.) | 15.6 |
| Panel Type | TN Technology |
| Resolution | 1366 x 768 |
| Resolution Type | WXGA (Wide XGA) |
| Static Contrast Ratio | 500:1 (typ) |
| Dynamic Contrast Ratio | 10M:1 |
| Light Source | LED |
| Brightness | 190 cd/m² (typ) |
| Colors | 262K |
| Color Space Support | 6 bit true |
| Aspect Ratio | 16:9 |
| Response Time (Typical Tr+Tf) | 12ms |
| Viewing Angles | 90º horizontal, 60º vertical |
| Backlight Life (Hours) | 15000 Hrs (Min) |
| Curvature | Flat |
| Refresh Rate (Hz) | 60 |
| Blue Light Filter | Yes |
| Color Gamut | NTSC: 45% size (Typ) |
| sRGB: 67% size (Typ) | |
| Pixel Size | 0.252 mm (H) x 0.252 mm (V) |
| Touch Screen and Compatibility | Specifications |
|---|---|
| Touch Screen | Projected Capacitive, 10-point multi-touch |
| Surface Treatment | Glossy, Hard Coating (7H) |
| Cover Glass Thickness | 0.83mm |
| PC Resolution (max) | 1366x768 |
| Mac® Resolution (max) | 1366x768 |
| PC Operating System | Windows 7/8/8.1/10/11 certified; macOS tested |
| Mac® Resolution (min) | 1366x768 |
| Connector | Specifications |
|---|---|
| VGA | 1 |
| USB 2.0 Type B | 1 |
| 3.5mm Audio In | 1 |
| HDMI 1.4 | 1 |
| Power in | DC Socket (Center Positive) |
| Audio | Specifications |
|---|---|
| Internal Speakers | 1Watts x2 |
| Power | Specifications |
|---|---|
| Eco Mode (Conserve) | 4.3W |
| Eco Mode (optimized) | 4.9W |
| Consumption (typical) | 5.5W |
| Consumption (max) | 6W |
| Voltage | AC 100-240V |
| Stand-by | 0.5W |
| Power Supply | External Power Adaptor |
| Additional Hardware | Specifications |
|---|---|
| Kensington Lock Slot | 1 |
| Controls | Specifications |
|---|---|
| Physical Controls | 1, 2, Up, Down, Power |
| On Screen Display | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| Operating Conditions | Specifications |
|---|---|
| Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing) | 20% to 90% |
| Wall Mount | Specifications |
|---|---|
| VESA Compatible | 75 x 75 mm |
| Input Signal | Specifications |
|---|---|
| Frequency Horizontal | 30 ~ 61KHz |
| Frequency Vertical | 56 ~ 75Hz |
| Video Input | Specifications |
|---|---|
| Digital Sync | TMDS - HDMI (v1.4) |
| Analog Sync | Separate - RGB Analog |
| Ergonomics | Specifications |
|---|---|
| Tilt (Forward/Back) | 15º / 50º |
| Weight (imperial) | Specifications |
|---|---|
| Net (lbs) | 2.9 |
| Net Without Stand (lbs) | 2.9 |
| Gross (lbs) | 5.5 |
| Weight (metric) | Specifications |
|---|---|
| Net (kg) | 1.3 |
| Net Without Stand (kg) | 1.3 |
| Gross (kg) | 2.5 |
| Dimensions (imperial) (wxhxd) | Specifications |
|---|---|
| Packaging (in.) | 17.8 x 15.3 x 3.4 |
| Physical (in.) | 14.9 x 9.7 x 1.5 |
| Physical Without Stand (in.) | 14.9 x 9.7 x 1.5 |
| Dimensions (metric) (wxhxd) | Specifications |
|---|---|
| Packaging (mm) | 453 x 389 x 86 |
| Physical (mm) | 379 x 247 x 37 |
| Physical Without Stand (mm) | 379 x 247 x 37 |
| General | Specifications |
|---|---|
| Regulations | CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, RCM, GEMS, BIS |
| Package Contents | TD1630-3 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 |
