Enjoy the Dazzling RGB Show

The integrated lighting button and ARGB VK120 fans with built-in LED controller, allows MX660 Mesh RGB to display amazing lighting effects. It’s also adaptable with any compatible motherboards’ 5V ARGB connection for system-wide lighting synchronization. The powerful lights come out of a stylish panel and the reflective surroundings helps reinforce the RGB effects.
* Top fans and radiators are optional, specifications might vary depending on the country or region of sale.

Three ARGB VK120 fans included

VK120 fan with Tri-Directional RGB Circle of Light that deliver a powerful and bright RGB lighting effect. In addition, VK120 equipped premium Hydro-Dynamic-Bearing and PWM function can provide more durable and silent performance.

Vertical GPU Support

This revolutionary case is both about performance and aesthetics. To bring your system’s awesomeness to the limit, MX660 Mesh RGB supports vertical GPU installation.
* Please choose either of a Vertical Graphic Card or 2.5” SSD trays on the PSU cover to install.
* Top fans and radiators are optional, specifications might vary depending on the country or region of sale.

Specifications

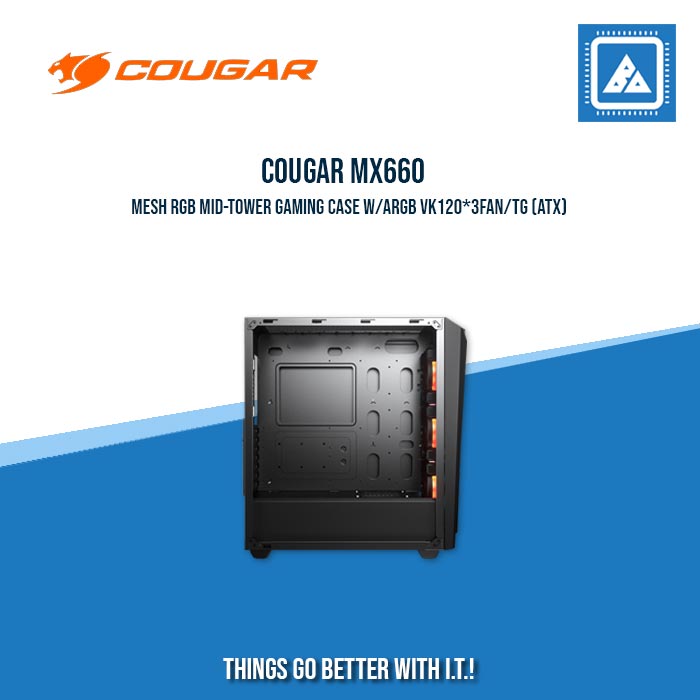

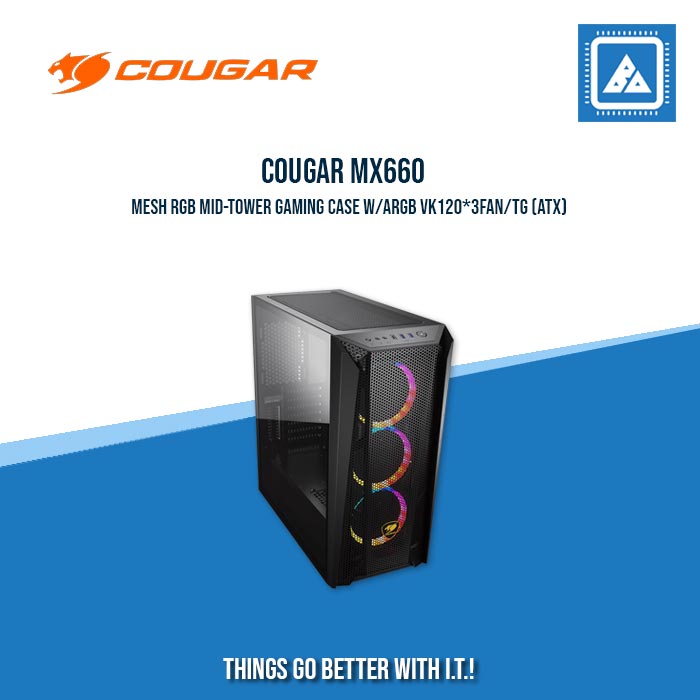

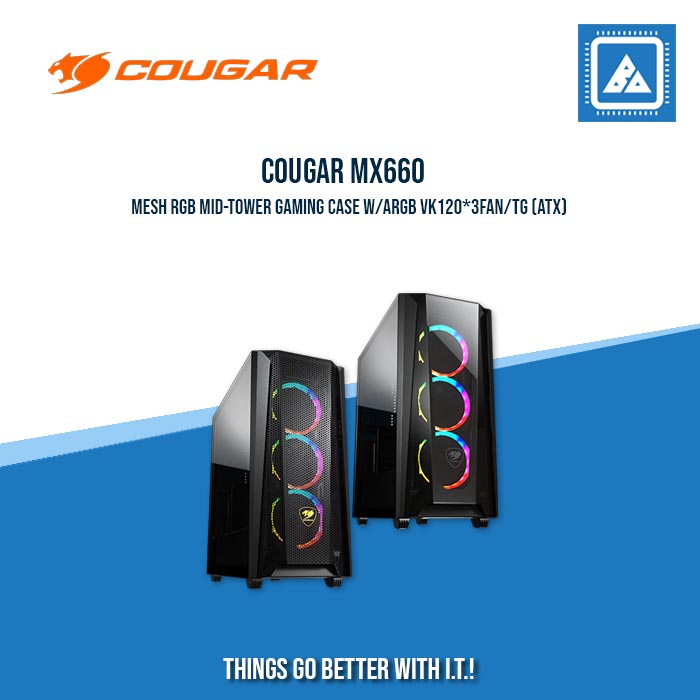

Product Name MX660 Mesh RGB
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD) 213 x 495 x 474 (mm)
8.4 x 19.5 x 19 (in)
I/O Panel Type C 3.1 x 1, USB3.0 x 2, Mic x 1 / Audio x 1, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay 5+2 ( converted from 3.5" drive bays ) / ( 2 SSD trays included )
Expansion Slots 7+2
Cooling Fan Support Front *120mm x 3 ( ARGB VK120 fans x 3 pre-installed ) / 140mm x 2
Top 120mm x 3 / 140mm x 2
Rear 120mm
PSU Cover 120mm ( for HDD Cooling )
Maximun Number of Fans 8 Max.
Water Cooling Support Front *360mm / 280mm / 240mm / 140mm / 120 mm
Top *360mm / 280mm / 240mm / 140mm / 120mm
Rear 120mm
Onboard Lighting System Yes
RGB Sync with M/B Yes
Max. Graphics Card Length 410 (mm) / 16.1 (in)
(Horizontal graphics card slots are compatible with RTX 3090/3080/3070.)
Max. CPU Cooler Height 165 (mm) / 6.5 (in)
Max. PSU length 200 (mm) / 7.9 (in)

Packing Data

Product Number (P/N) 385BMS0.0004
EAN CODE 4710483771026
UPC CODE 192554002293
JAN CODE 4541995034770
Individual Size W/O Packaging Weight (N.Weight) 6.3 (kg)
Individual Packaging Weight (G.Weight) 7.5 (kg)
Individual Size W/O Packaging (WxHxD) 213 x 495 x 474 (mm)
Individual Packaging Size (WxHxD) 270 x 535 x 520 (mm)
