| Model Name |

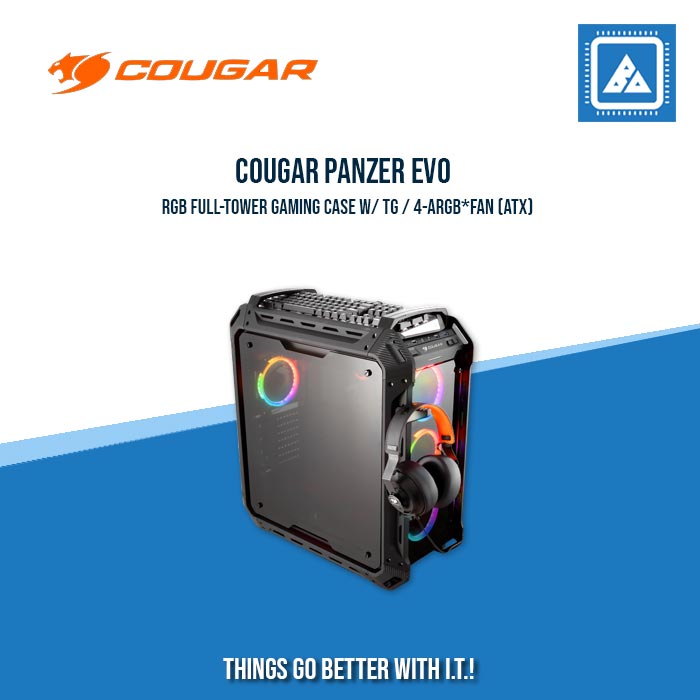

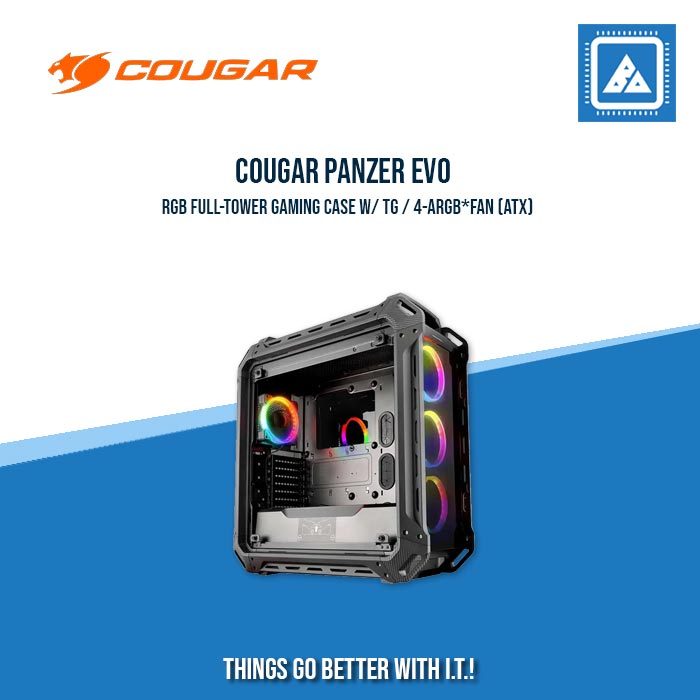

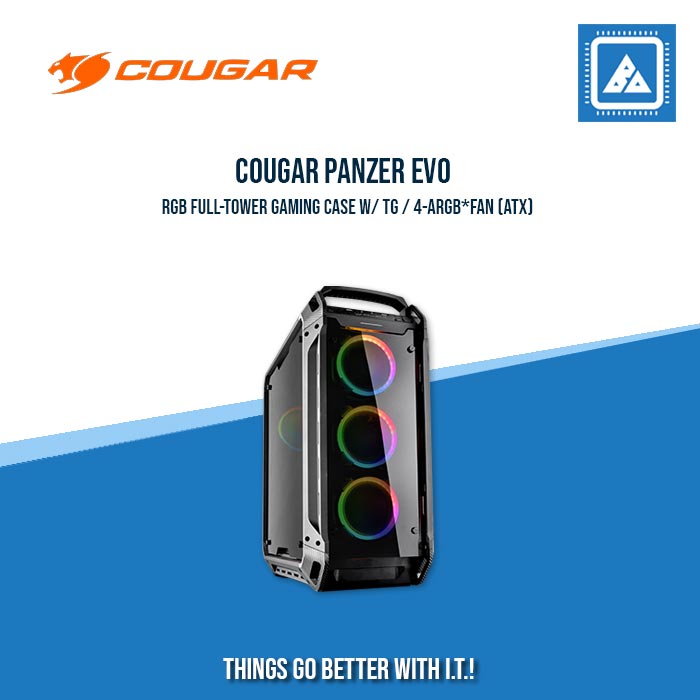

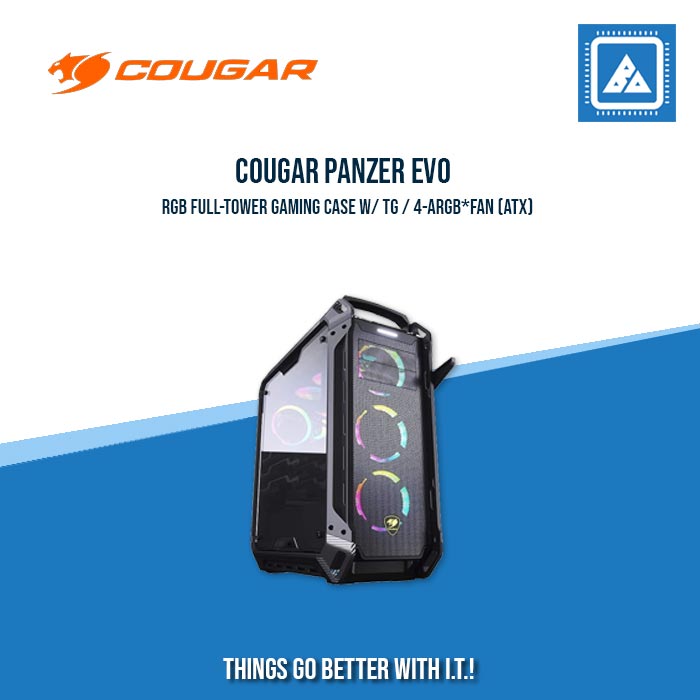

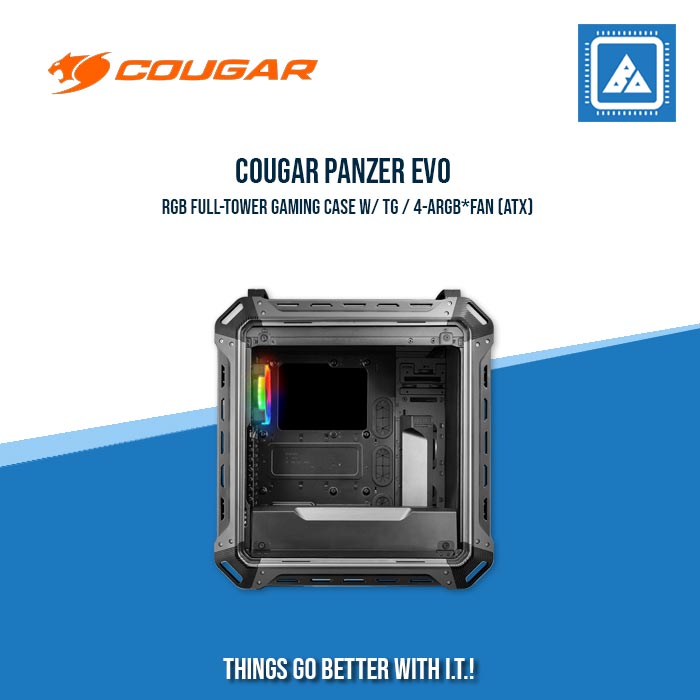

PANZER EVO RGB |
| Case Form Factor |
Full-Tower |
| Motherboard Type |
Mini ITX / Micro ATX / ATX / CEB / E-ATX ( E-ATX up to 12"x11" ) |
| Dimension (WxHxD) |
266 x 612 x 556 (mm) 10.47 x 24.09 x 21.88 (in) |
| 3.5" Drive Bay |
2 |
| 2.5" Drive Bay |
4+2 (converted from 3.5" drive bays) |
| Expansion Slots |
8 |
| Cooling System |
Front |
120mm x 3 / 140mm x 3 120mm x 3 (COUGAR Vortex ARGB fan pre-installed) |
| Top |
120mm x 3 / 140mm x 2 |
| Rear |
120mm x 1 (COUGAR Vortex ARGB fan pre-installed) |
| Bottom |
120mm x1 / 140mm x 1 |
| I/O Panel |
USB 3.1 Gen2 Type-C USB3.0 x 2 / USB2.0 x 1 Mic x 1/Audio x 1 Fan Controller |
| Water Cooling Support |
Front |
360mm / 280mm / 240mm / 140mm / 120mm |
| Top |
360mm / 280mm / 240mm / 140mm / 120mm |
| Rear |
120mm |
| Bottom |
140mm / 120mm |
| Max. Graphics Card Length |
390 (mm) / 15.35 (in) (Horizontal graphics card slots are compatible with RTX 3090/3080/3070.) |
| Max. CPU Cooler Height |
170 (mm) / 6.69 (in) |
| PSU |
Standard ATX PS2 |
| Max. PSU Length |
220 (mm) / 8.7 (in) |
| Cable Management |
Yes |
| Maximum Number of Fans |
8 Max. |
