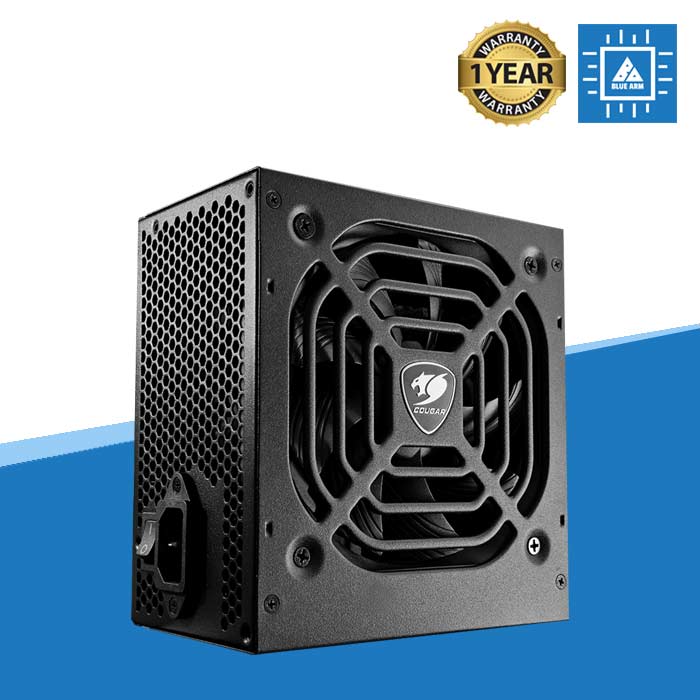

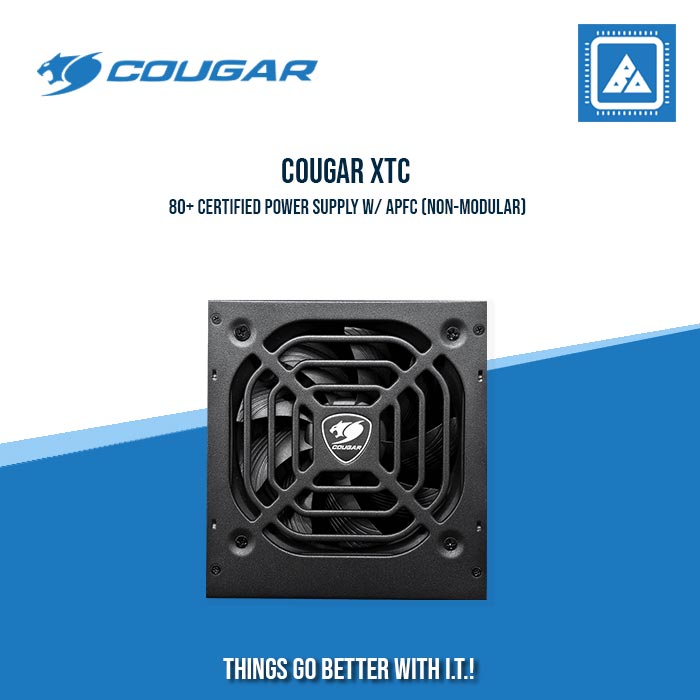

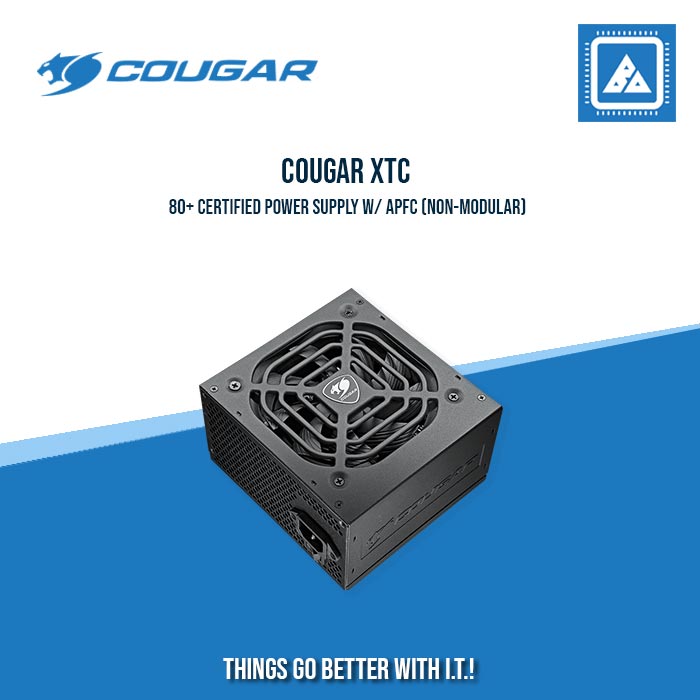

COUGAR XTC500 | XTC600 80+ CERTIFIED WHITE POWER SUPPLY

10people are viewing this right now

XTC500

XTC600

SKU: XTC500|600
Category: 2in1 Laptops, Acer Products, All In One PC,
Tags : preorder

Guaranteed safe checkout

Power Conversion Efficiency

Up to 86% efficiency under 230V. A guaranteed highly reliable power supply.

Active Power Factor Correction

High power conversion efficiency. PF value up to 99%, provides clean and reliable power

120mm Extreme Temperature Control

Using COUGAR’s exclusive 120mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads, helping you enjoy a quieter gaming experience.

Assigned Japanese Components

XTC includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.

The Japanese polypropylene capacitor minimize the noise during the voltage transition.

Massive Single +12V DC Output

Tight voltage regulation and extreme stability for powerful graphic systems.

*Comparison based on XTC600’s performance data.

Features

Active Power Factor Correction (Active PFC)

PFC value up to 99%, provides clean and reliable p

Compatible with the Newest Components

Created for use with multi-core CPU and PCI express 3.0 graphics cards with 8(6+2) pin PCI-e connector.

Superior Fan Curve Tuning

Advanced technology for noise minimization

105°C Japanese Standby Capacitors

Reliable and durable components that extend the PSU’s useful life.

Strong Safeguards : OCP, OPP, OVP, UVP & SCP

Maximum safety for your key system components

Specifications

Product Name	AC Input	DC Output
Product Name	AC Input	+3.3V	+5V	+12V	-12V	+5Vsb	Total
XTC400	200-240V~ 50Hz / 5A	15A	15A	30A	0.3A	2A	400W
XTC400		105W		360W	0.3A	2A	400W
XTC500		16A	18A	38A	0.3A	2.5A	500W
XTC500		110W		456W	0.3A	2.5A	500W
XTC600		18A	20A	49A	0.3A	3A	600W
XTC600		130W		588W	0.3A	3A	600W

Model Name	AC Input	DC Output
Model Name	AC Input	+3.3V	+5V	+12V	-12V	+5Vsb	Total
XTC450 CGR ST-450	200-240V~ 50Hz / 6.3A	15A	15A	34A	0.3A	2A	450W
XTC450 CGR ST-450		105W		408W	3.6W	10W	450W
XTC550 CGR ST-550		16A	18A	42A	0.3A	2.5A	550W
XTC550 CGR ST-550		110W		504W	3.6W	12.5W	550W
XTC650 CGR ST-650		18A	20A	52A	0.3A	3A	650W
XTC650 CGR ST-650		130W		624W	3.6W	15W	650W
XTC750 CGR ST-750	200-240V~ 50-60Hz / 6A	20A	20A	60A	0.3A	3A	750W
XTC750 CGR ST-750	200-240V~ 50-60Hz / 6A	120W		720W	3.6W	15W	750W

Packing Data

	XTC400	XTC450	XTC500	XTC550	XTC600	XTC650	XTC750
Product Number (P/N)	31XC040.0001P	31XC450.0001P	31XC050.0001P	31XC550.0001P	31XC060.0001P	31XC650.0001P	31TC075032H-01
EAN CODE	4715302442859 4710483770340(UK)	4710483770692 4710483770722(UK)	4715302442866 4710483770357(UK)	4710483770708 4710483770739(UK)	4715302442873 4710483770364(UK)	4710483770715 4710483770746(UK)	4710483770869 4710483770890(UK)
UPC CODE	192554001296	192554002057	192554001302	192554002064	192554001319	192554002071	192554002194
Individual W/O Packaging Weight (N.Weight)	1.2 (Kg)	1.3 (Kg)	1.3 (Kg)	1.35 (Kg)	1.4 (Kg)	1.4 (Kg)	1.4 (Kg)
Individual Packaging Weight (G.Weight)	1.5 (Kg)	1.6 (Kg)	1.6 (Kg)	1.65 (Kg)	1.7 (Kg)	1.7 (Kg)	1.7 (Kg)
Individual Size W/O Packaging (LxWxH)	140 x 150 x 86 (mm)
Individual Packaging Size (LxWxH)	187 X 158 x 165 (mm)
