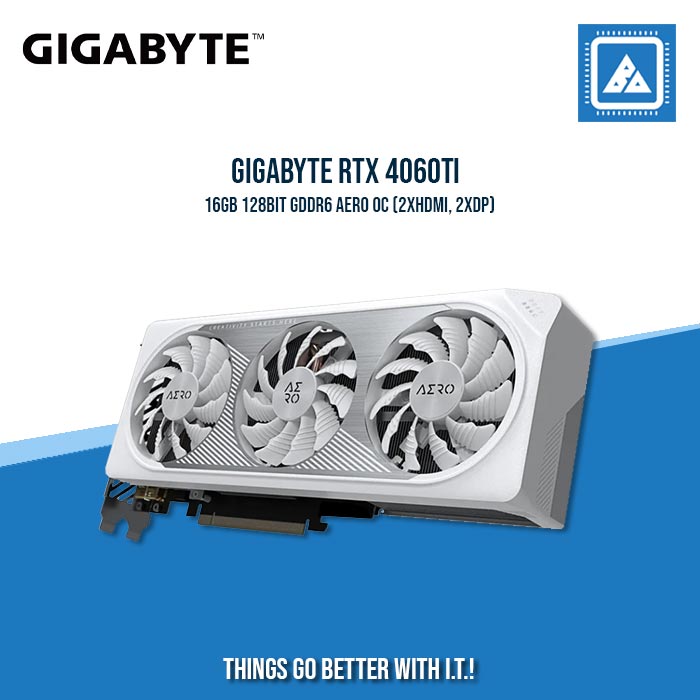

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
| Specification | Details |
|---|---|
| GPU Model | GeForce RTX™ 4060 Ti |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128-bit |
| Core Clock | 2595 MHz (Reference: 2535 MHz) |
| CUDA® Cores | 4352 |
| Memory Clock | 18 Gbps |
| Card Bus | PCI-E 4.0 |
| Digital Max Resolution | 7680x4320 |
| Multi-view | Supports up to 4 monitors |
| Card Size | L=281mm, W=117mm, H=50mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 500W |
| Power Connectors | 8-pin*1 |
| Output Ports | DisplayPort 1.4a2, HDMI 2.1a2 |
| Accessories | Quick guide |
