GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING

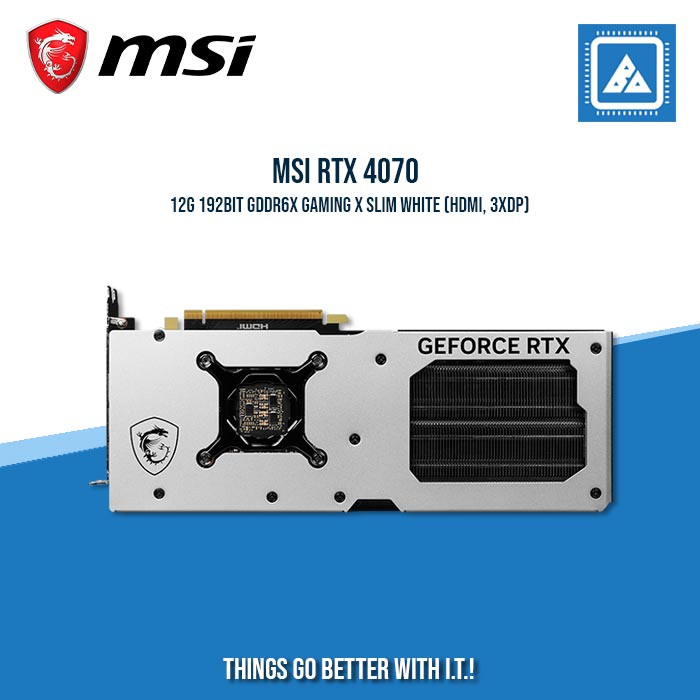

A large airflow vent on the backplate allows exhaust air to pass through directly.
| Specification | Details |
|---|---|

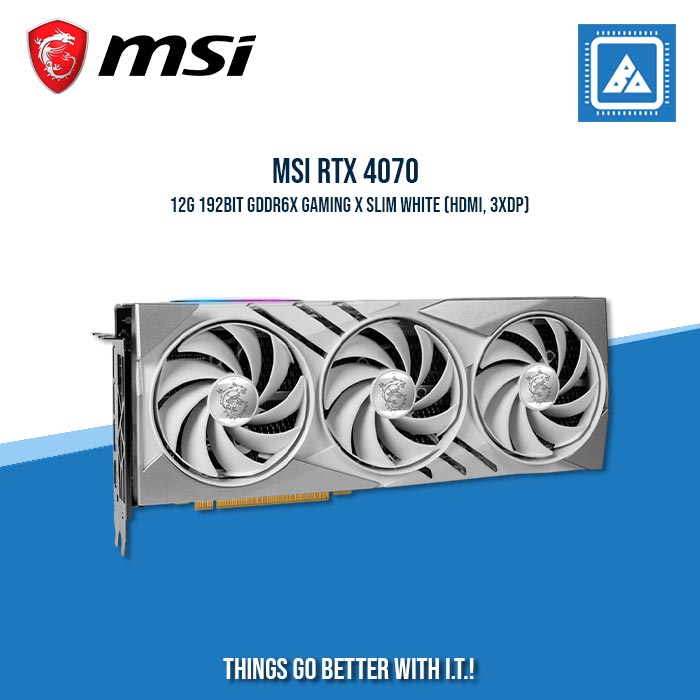

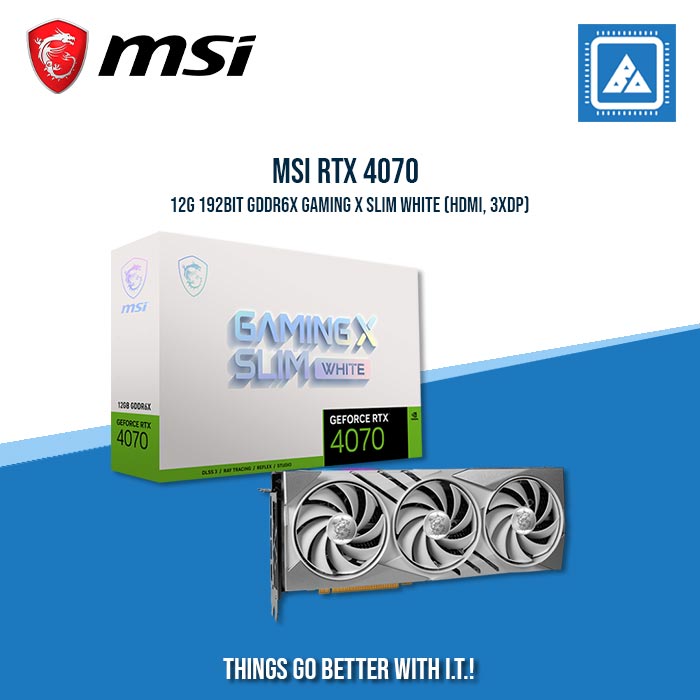

| Model Name | GeForce RTX™ 4070 GAMING X SLIM WHITE 12G |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 4070 |
| Interface | PCI Express® Gen 4 |
| Core Clocks | Extreme Performance: 2625 MHz (MSI Center) <br> Boost: 2610 MHz |
| CUDA® Cores | 5888 Units |
| Memory Speed | 21 Gbps |
| Memory | 12GB GDDR6X |
| Memory Bus | 192-bit |
| Output | DisplayPort x 3 (v1.4a) |
| HDMI™ x 1 (Supports 4K@120Hz HDR,8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) | |
| HDCP Support | Yes |
| Power Consumption | 215 W |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 650 W |
| Card Dimension (mm) | 307 x 125 x 46 |
| Weight (Card / Package) | 988 g / 1750 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
