01. SHARP LOOKS
The second iteration of SUPRIM inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan.
02. POLISHED EDGES
Beveled edges are polished several times with a diamond-tipped cutter to achieve a mirror-finish. Clean sharp lines emphasize the metal construction to sight and touch.
03. FINISHING TOUCHES
The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges.
TRI-FROZR 3S
THERMAL DESIGN
Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI.
| Feature | Specification |
|---|---|

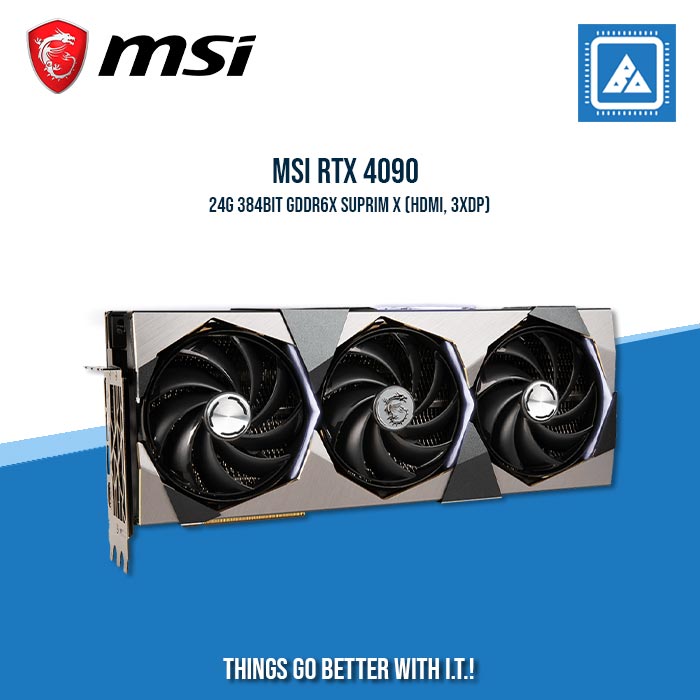

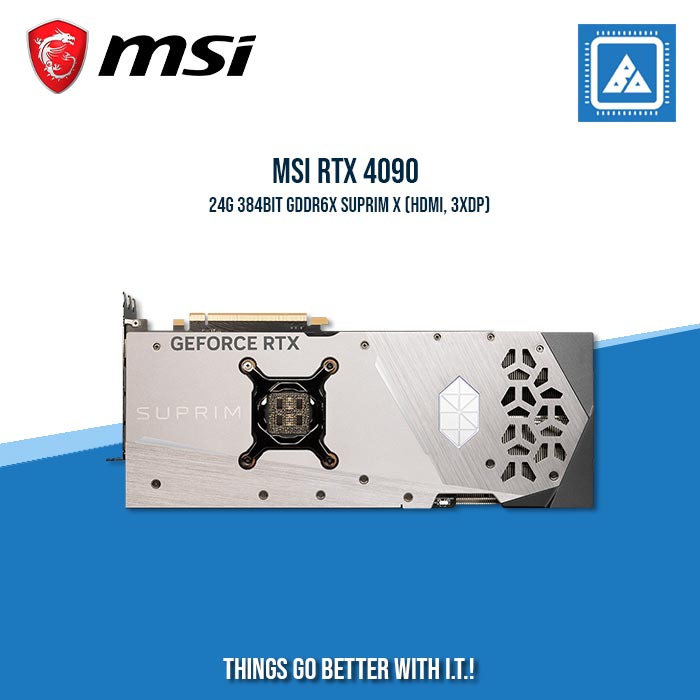

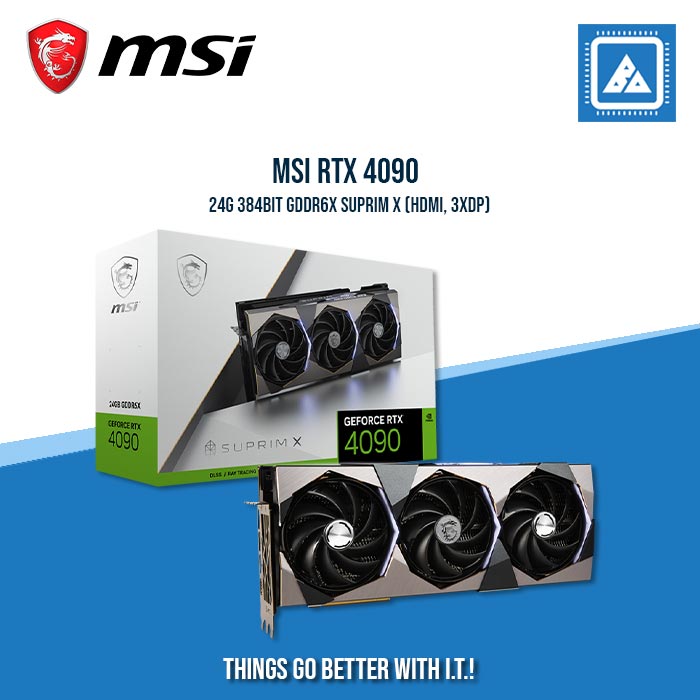

| Model Name | GeForce RTX™ 4090 SUPRIM X 24G |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 4090 |
| Interface | PCI Express® Gen 4 |
| Core Clocks | Extreme Performance: 2640 MHz (MSI Center) |
| Boost: 2625 MHz (GAMING & SILENT Mode) | |
| CUDA® Cores | 16384 Units |
| Memory Speed | 21 Gbps |
| Memory | 24GB GDDR6X |
| Memory Bus | 384-bit |
| Output | DisplayPort x 3 (v1.4a) |
| HDMI™ x 1 (Supports 4K @120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) | |
| HDCP Support | Yes |
| Power Consumption | Silent mode: 450W |
| Gaming mode: 480W | |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 1000W (Min. 850W) |
| Card Dimension (mm) | 336 x 142 x 78 |
| Weight (Card / Package) | 2413g / 3636g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
