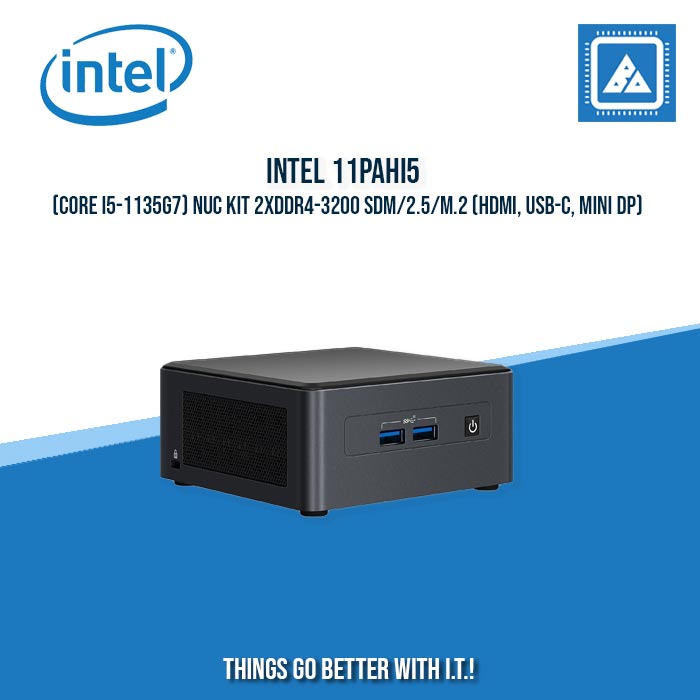

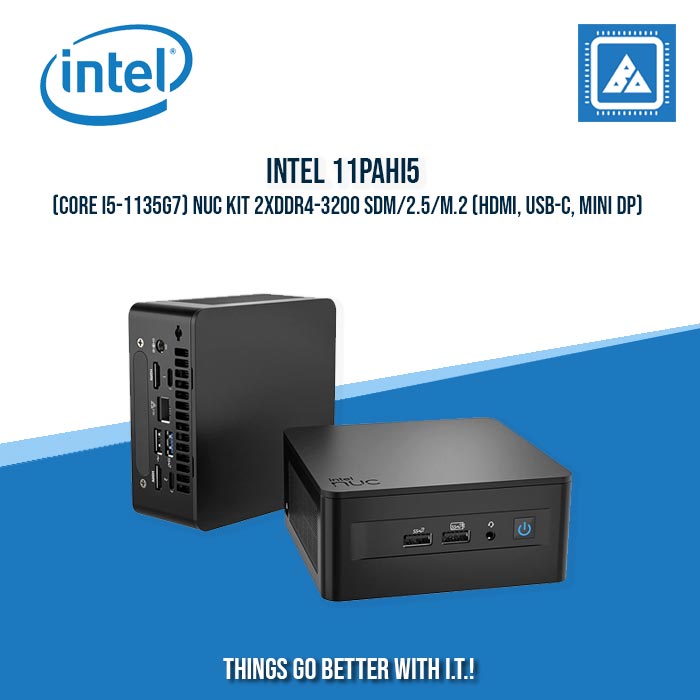

Introducing the INTEL 11PAHI5 (Core i5-1135G7) NUC Kit, a compact and powerful computing solution designed to offer versatility and high performance in a small form factor. This NUC (Next Unit of Computing) Kit is equipped with an Intel Core i5-1135G7 processor, providing excellent processing power for various computing tasks.

Product Description:

The INTEL 11PAHI5 NUC Kit features an Intel Core i5-1135G7 processor, a quad-core CPU with eight threads, and a base clock speed of 2.4 GHz, which can turbo boost up to 4.2 GHz. The processor's performance is enhanced with Intel's latest technologies, providing a seamless and efficient computing experience.

The NUC Kit supports up to 2x DDR4-3200 memory modules, allowing for a total memory capacity of up to 64GB (2x 32GB). With high-speed memory, you can handle multitasking with ease and run memory-intensive applications smoothly.

For storage, the NUC Kit offers various options. It supports an SDM (System Disk Module) for boot storage, a 2.5-inch drive bay for additional storage, and an M.2 slot for NVMe SSDs, enabling you to customize your storage setup based on your needs.

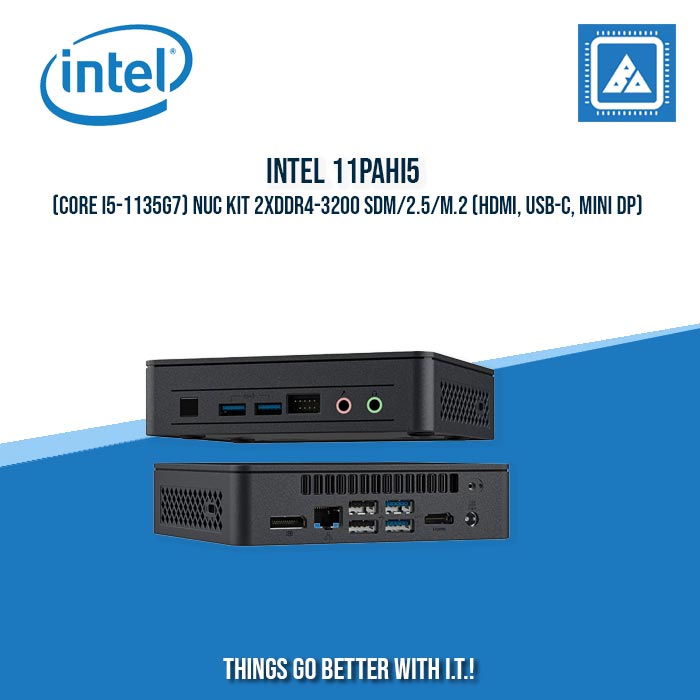

Connectivity is abundant on the NUC Kit, featuring a variety of ports for versatile usage. It includes HDMI, USB-C, and Mini DisplayPort, allowing you to connect to multiple displays and peripherals effortlessly.

The compact and small form factor design of the INTEL 11PAHI5 NUC Kit makes it perfect for space-constrained environments or for those seeking a minimalistic and clutter-free setup. Whether you use it as a home entertainment center, a productivity workstation, or a gaming platform, the NUC Kit delivers the performance you need in a compact package.

Please note that the INTEL 11PAHI5 NUC Kit is sold as a barebone unit, meaning it does not come with memory, storage, or an operating system pre-installed. Users can customize the kit with their preferred components to build a personalized and high-performance mini PC that suits their specific requirements.

In summary, the INTEL 11PAHI5 (Core i5-1135G7) NUC Kit is a feature-packed and compact computing solution that provides excellent processing power, ample storage options, and versatile connectivity. Whether for home, office, or entertainment use, this NUC Kit offers a reliable and efficient computing experience in a small and space-saving form factor.



Essentials
Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name Products formerly Panther Canyon
Processor Included Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
Board Number NUC11PABi5
Supported Operating Systems Windows 11, 64-bit*, Windows 10, 64-bit*
Supplemental Information
Marketing Status Discontinued
Launch Date Q1'21
Warranty Period 3 yrs
Embedded Options Available No
Datasheet View now
Description Other features: Includes far-field quad array microphones
CPU Specifications
Total Cores 4
Total Threads 8
Max Turbo Frequency 4.20 GHz
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
# of Memory Slots 2
Memory Types DDR4-3200 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 51.2 GB/s
ECC Memory Supported ‡ No
# of Internal Drives Supported 2
Removable Memory Card Slot SDXC with UHS-II support
M.2 Card Slot (storage) 22x80
I/O Specifications

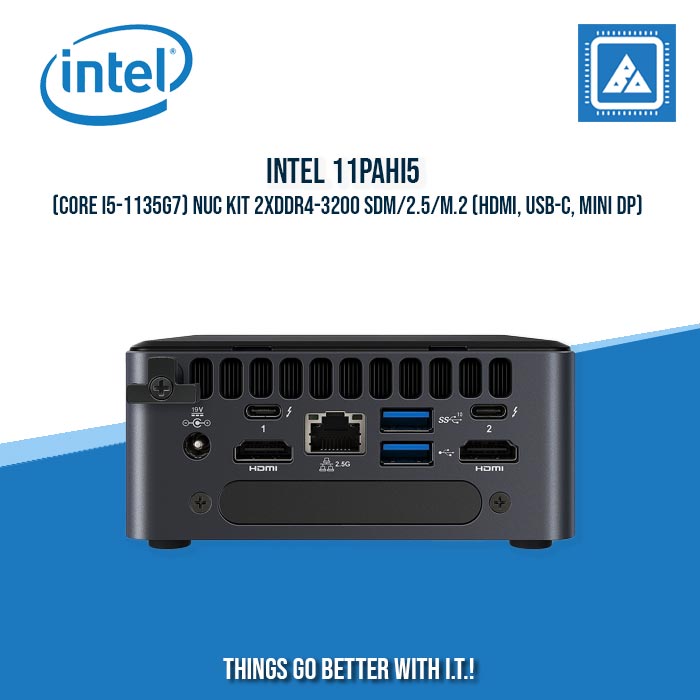

Graphics Output HDMI 2.0b; USB-C (DP1.4); MiniDP 1.4
# of Displays Supported ‡ 4
# of Thunderbolt™ Ports 2x Thunderbolt™ 3
# of USB Ports 7
USB Configuration 2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C); USB 2.0, USB 3.1 Gen2 via internal headers
USB Revision 2.0, 3.2 Gen2
USB 2.0 Configuration (External + Internal) 0 + 1
USB 3.0 Configuration (External + Internal) 2B 2F + 1
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
Audio (back channel + front channel) 7.1 digital (HDMI mDP); L+R mic (F)
Integrated LAN Intel® Ethernet Controller i225-V
Wireless Included Intel® Wi-Fi 6 AX201 (Gig+)
Bluetooth Version 5.2
Consumer Infrared Rx Sensor Yes
Additional Headers CEC, USB3.1, USB2.0, FRONT_PANEL, RGB
Expansion Options
PCI Express Revision Gen4
PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes
Package Specifications
TDP 40 W
DC Input Voltage Supported 19 VDC
Chassis Dimensions 117 x 112 x 51mm
Board Form Factor UCFF (4" x 4")
Advanced Technologies
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Security & Reliability
Intel® Platform Trust Technology (Intel® PTT) Yes
TPM No
Intel® AES New Instructions Yes
