TUF GAMING motherboards are typically known for their durability, reliability, and gaming-oriented features. Here's a general product description for a TUF GAMING motherboard:

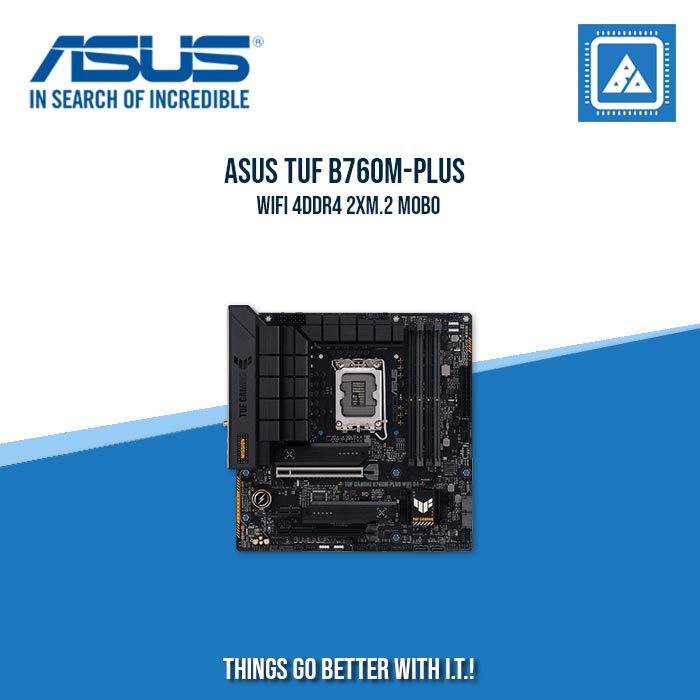

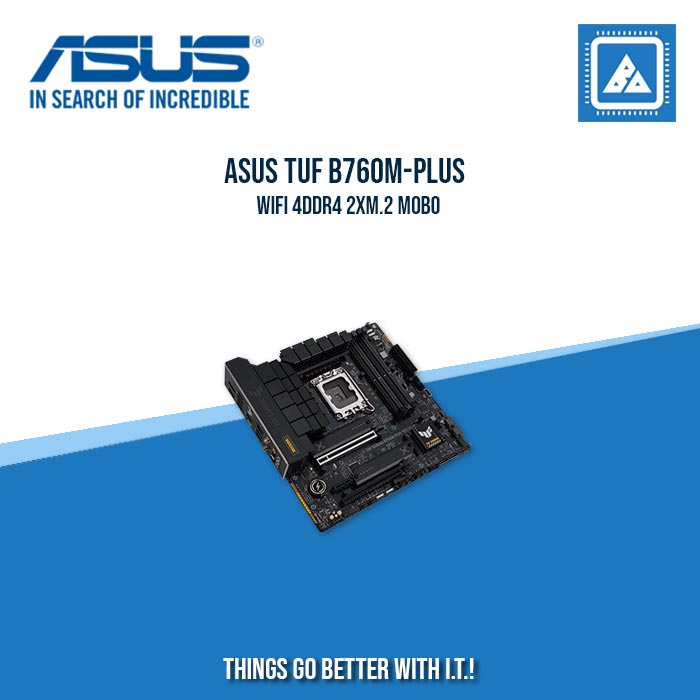

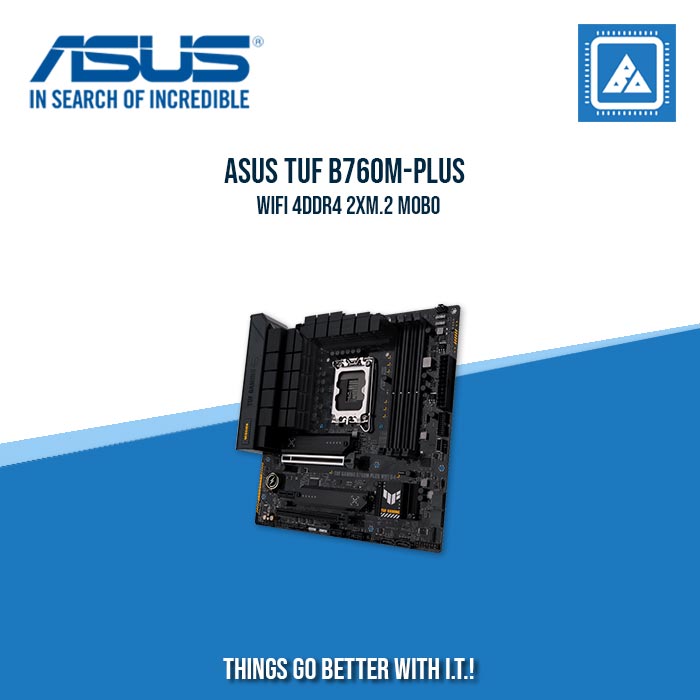

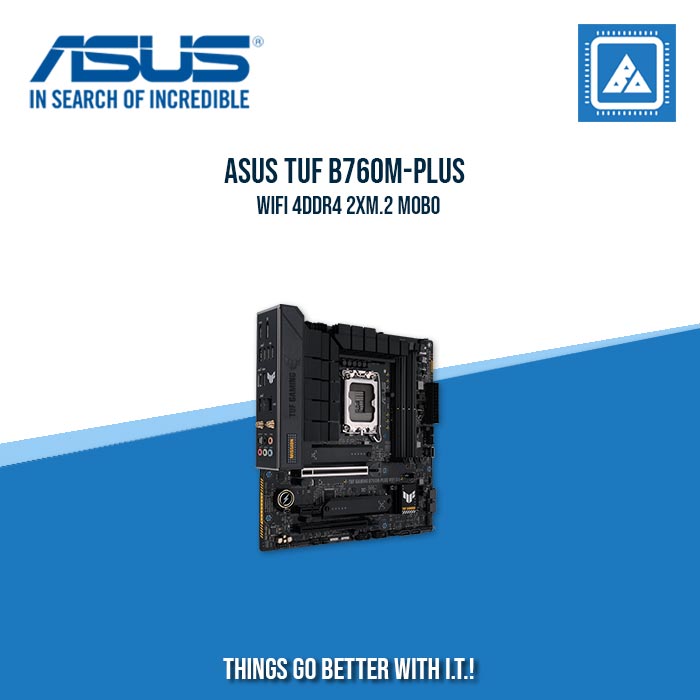

TUF GAMING B760M-PLUS WIFI D4 Motherboard
The TUF GAMING B760M-PLUS WIFI D4 motherboard is designed to meet the demands of gamers and PC enthusiasts. It combines rugged components with a focus on stability and performance, making it an ideal choice for building a gaming PC.
Key Features:
-
Military-Grade Components: TUF GAMING motherboards are built with high-quality components that undergo rigorous testing to ensure reliability and longevity.
-
WIFI Connectivity: Enjoy the convenience of wireless connectivity with built-in WIFI support, allowing you to connect to your network without the need for an additional adapter.
-
Dual M.2 Slots: Benefit from fast storage options with dual M.2 slots, supporting NVMe SSDs for quick data access.
-
DDR4 Memory Support: The motherboard supports DDR4 memory modules, providing high-speed and stable performance for your gaming and multitasking needs.
-
USB Ports: Multiple USB ports, including USB 3.2 Gen 1 and Gen 2, provide fast data transfer and connectivity options for peripherals.
-
TUF Gaming Alliance: Compatible with other TUF GAMING components, this motherboard allows you to create a cohesive and visually appealing gaming setup.
-
Comprehensive Cooling: Designed with thermal solutions in mind, the motherboard includes features such as fan headers and heatsinks to keep your system cool during intense gaming sessions.
-
Aura Sync RGB Lighting: Customize your gaming rig's appearance with customizable RGB lighting that can be synchronized with other Aura Sync-compatible components.
-
Gaming Optimization: Features like AI-based performance optimization and BIOS settings tailored for gaming help you get the most out of your system.
| Specification | Details |
|---|---|
| Model | TUF GAMING B760M-PLUS WIFI D4 |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Graphics | 1 x DisplayPort**, 1 x HDMI® port*** |
| Expansion Slots | Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot<br>Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*<br>Intel® 13th & 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)<br>Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet<br>TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band<br>Bluetooth® v5.2* (*Bluetooth version may vary) |
| USB | Rear USB (Total 8 ports): 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (4 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A)<br>Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports* |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC<br>Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking<br>Supports up to 24-Bit/192 kHz playback<br>Audio Features: Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (4 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port |
| Internal I/O Connectors | Various headers for fan and cooling, power, storage, USB, and more. |
| Miscellaneous | 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt™ (USB4®) header |
| Special Features | ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync |
| Software Features | ASUS Exclusive Software, Armoury Crate, AI Suite 3, DTS Audio Processing, MyASUS, Norton 360 for Gamers, WinRAR |
| UEFI BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables: 2 x SATA 6Gb/s cables<br>Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x TUF Gaming sticker<br>Documentation: 1 x TUF Certification card, 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor, 9.6inch x 9.6 inch (24.4 cm x 24.4 cm) |
