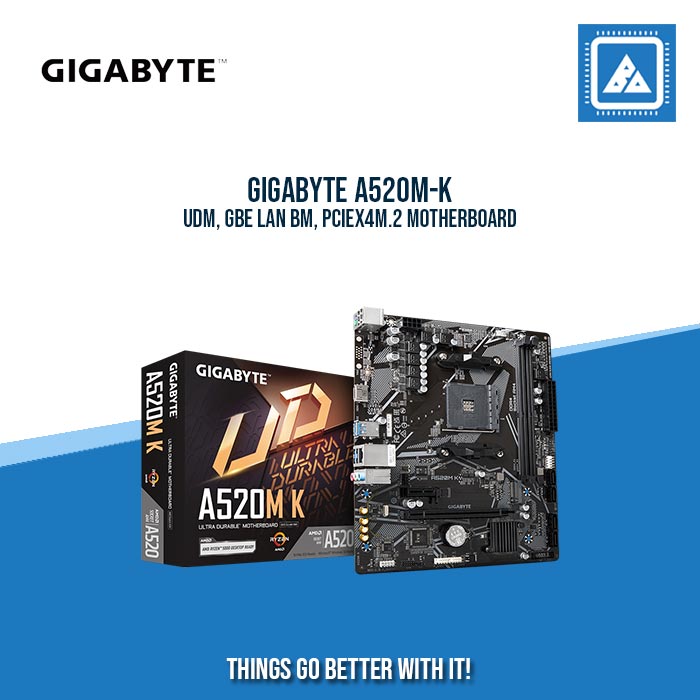

GIGABYTE A520M-K motherboard is a versatile and budget-friendly option for building a reliable PC. With support for up to two DDR4 memory modules, it allows for a maximum memory capacity of 64GB, ensuring smooth multitasking and efficient performance. The motherboard features a Gigabit Ethernet LAN port for fast and stable network connectivity.
Equipped with an M.2 slot, this motherboard provides support for high-speed NVMe SSDs, enhancing storage performance and reducing load times for applications and games. The inclusion of an HDMI port allows for easy connectivity to modern displays, providing crisp and clear visuals.
|
Component |
Specification |
|---|---|
| CPU | AMD Ryzen™ 5000 G-Series/5000 Series/4000 G-Series/3000 Series |
| Chipset | AMD A520 |
| Memory | 2 x DDR4 DIMM sockets, up to 64GB, dual channel |
| Onboard Graphics | HDMI port, max resolution 4096x2160@60Hz, max shared memory 16GB |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe x16 slot (PCIe 3.0, x16), 1 x PCIe x1 slot (PCIe 3.0, x1) |
| Storage Interface | 1 x M.2 connector (Socket 3, M key), 4 x SATA 6Gb/s connectors |
| USB | 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports |
| Internal I/O Connectors | Multiple connectors for power, cooling, storage, USB, etc. |
| Back Panel Connectors | PS/2 keyboard/mouse port, HDMI port, USB ports, RJ-45 port, audio jacks |
| BIOS | 128 Mbit flash, licensed AMI UEFI BIOS |
| Operating System | Supports Windows 11 64-bit and Windows 10 64-bit |
| Form Factor | Micro ATX, 23.3cm x 19.8cm |
