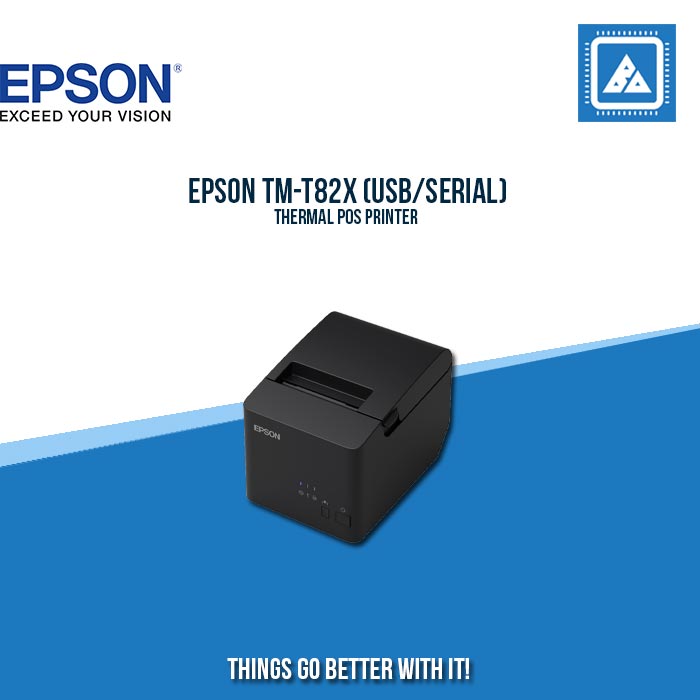

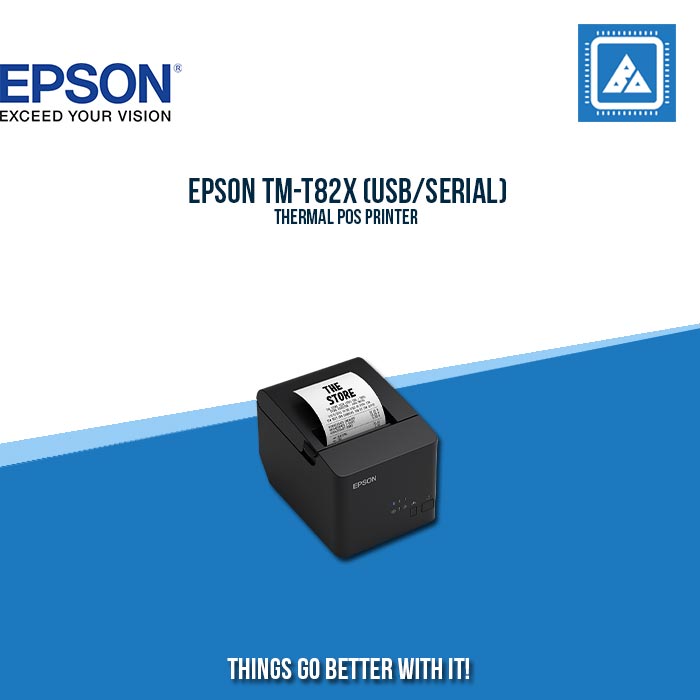

The Epson TM-T82X is a cost-effective POS printer that can print at a high speed of 200mm/s. It supports USB and RS-232 interfaces, and can be fitted anywhere thanks to its compact and durable body. It is a perfect companion for small business owners .
| Classification | Details |
|---|---|
| General Information | Supported Operating Systems: Windows, Mac, Linux<br>ePOS SDK Available for Android, iOS |
| Option | External Buzzer: Yes |
| Print Font | Font: 9 × 17 / 12 × 24, Hanji Font: 24 x 24, Thai Font: 9 x 24 / 12 x 24<br>Characters Per Inch: 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi<br>Character Size (W x H): 0.88 × 2.13 mm / 1.25 × 3 mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 3 mm / 1.25 x 3 mm<br>Character Set: 95 Alphanumeric, 18 set International, 128 × 43 pages (including Thai / Viet and user-defined page)<br>Hanzi: Simplified Chinese: GB18030-2000: 28,553<br>Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar<br>Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology |
| Print Speed | Print Speed: Max 200mm/s |
| Paper | Width and Roll Diameter: 79.5 +- 0.5mm (for TM-T82X-441, 442 model)<br>57.5 +- 0.5mm (for TM-T82X-443, 444 model) |
| Overall Dimensions (D x W x H) | Overall Dimensions (D x W x H): 192 x 149 x 140 mm |
| Printing Method | Printing Method: Thermal Line Printing |
| Standard Accessories | Standard Accessories ROM: Roll paper × 1 roll (for checking the initial movement of the printer), Setup guide, USB cable for USB + Serial model |
| Dot Density | Dot Density: 203 x 203 dpi |
| Mass | Mass: Approx. 1.5kg |
| EMI and Safety Standards | Safety Standards: Singapore IEC62368-1 |

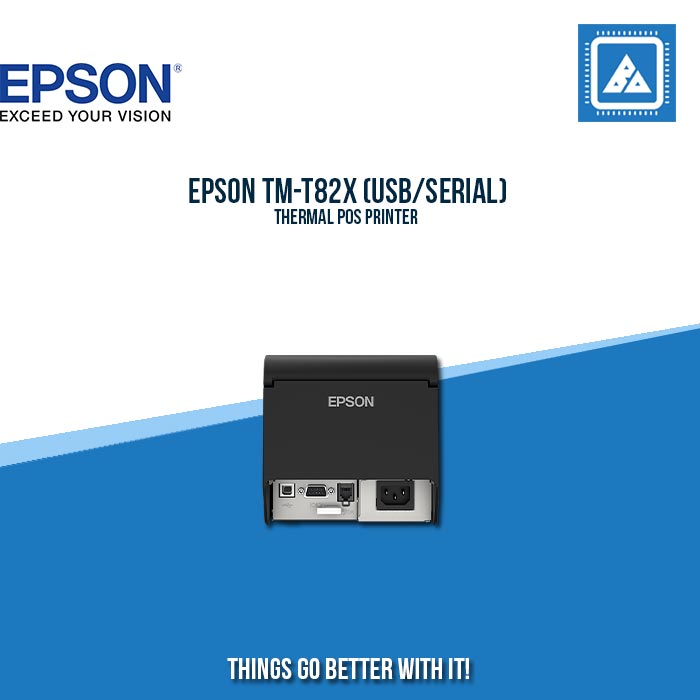

| Interface | Interface: Built-in USB + Serial (9pin) / Ethernet Interface |
| Reliability | MTBF: 360,000 hours<br>MCBF: 60,000,000 lines<br>Printer Mechanism Life: 15 million lines<br>Auto Cutter Life: 1.5 million cuts |
| Power | Power Consumption: Operating: Approx. 27.8 W<br>Standby: Approx. 0.96 W<br>Power Supply: Built-in power supply<br>Supply Voltage: AC 100 to 230V / 50 to 60 Hz |
| Receive Data Buffer | Receive Data Buffer: 4KB or 45 bytes |
