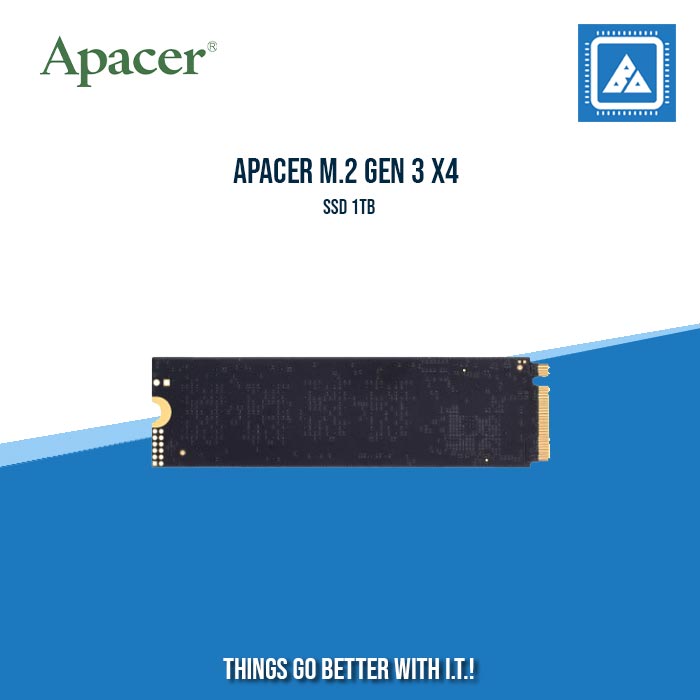

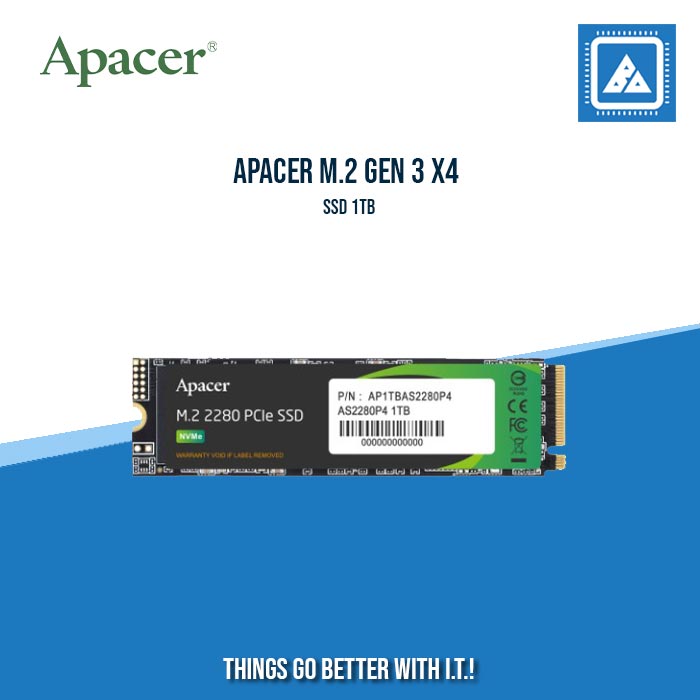

AS2280P4 M.2 PCIe Gen3 x4
- Compliant with NVMe 1.3 Standard
- Ultra Thin M.2 Form Factor
- Sequential Read/Write Speed up to 3000/2000MB/s
- Random Write Performance Up to 360,000 IOPs
Ultra-compact Body
The 22mm x 80mm ultra-compact body accommodates up to 1TB of storage space, while the ultra-thin version is only 2.25mm, which gives gamers more space for their other creative set-ups and modifications. It is definitely the top choice for ultra-thin notebooks, e-sports consoles, and mini-PCs.
Lightning-fast Speed with PCIe Gen3 x4
Apacer's proprietary SSD tuning technology now boosts read-write speeds to 3000/2000 MB/s and IOPS to 360,000 operations per second—by far the best performance in this price bracket.
Ultra-fast and Super-steady
To ensure users of a perfect high-speed experience, the AS2280P4 SSD has built-in protection technology to ensure data integrity and stability, keeping it stable and fast for longer!
| Specification | Value |
|---|---|
| Product Name | AS2280P4 |
| Capacity | 240GB to 1TB |
| Interface | PCIe Gen3 x4 |
| NAND Flash | 3D NAND |
| Sequential Read Performance | Up to 3,000MB/s |
| Sequential Write Performance | Up to 2,000MB/s |
| IOPs (4K Random Write) | Up to 360,000 IOPS |
| ECC Support | Up to 72bit/1KB |
| Shock Resistance | 1,500G for 0.5 milliseconds |
| Vibration Resistance | 7-800Hz, 3.08Grms |
| Low Power Consumption (Active/Idle) | 275mA during active use, 80mA at idle |
| MTBF (Mean Time Between Failures) | 1,500,000 hours |
| Humidity Range | 5% to 95% |
| Standard Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | (L)80mm x (W)22mm x (H)2.25mm |
| Certifications | CE, FCC, VCCI, BSMI, RoHS |
| Warranty | 3 years limited warranty |
