ASUS ZenScreen™ MB165B is ideal for life on the road. This sleek portable display weighs just 0.78kg and has an 11.8 mm slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.
ASUS ZenScreen MB165B Portable USB Monitor- 15.6 inch, HD(1366x768), Narrow Bezel, USB-powered, Anti-glare surface
- 15.6-inch portable USB-powered monitor with a single USB 3.0 cable for power and video signal transmission
- The slim and thin profile helps you get things done more efficiently when you’re on the go
- User-friendly design with embedded tripod socket on the rear and foldable sleeve for versatility.
- Can automatically sense its orientation and switch the monitor between landscape and portrait modes.
One cable is all you need
ZenScreen™ MB165B portable USB-powered monitor needs just one USB cable for both its video signal* and power, to be fully compatible with almost any laptop.
*Please install the USB Monitor Driver first (download) prior to using it. Then connect the upper micro B USB 3.0 port for video connection with PC/ laptop by inbox cable.
Work in comfort

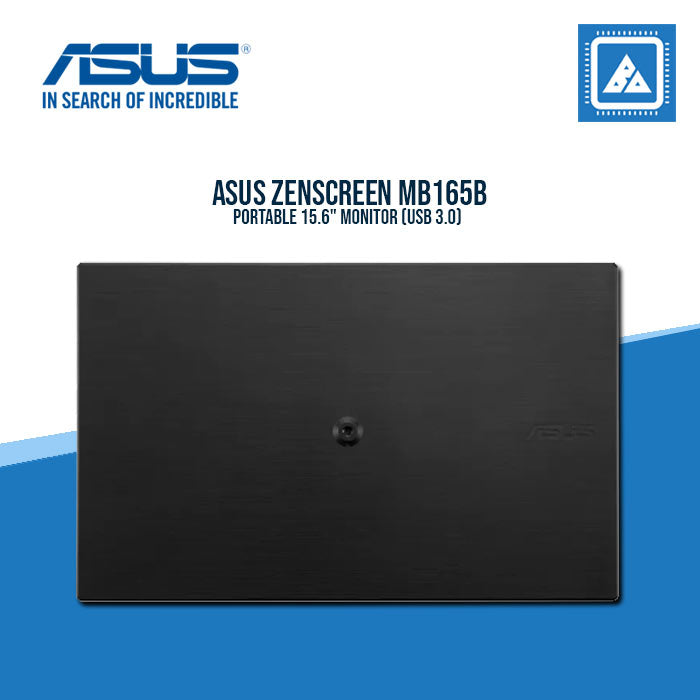

A ¼”-threaded hole at the rear of the monitor lets you to attach ZenScreen MB165B to a conventional tripod* or table-mount easily.
*Tripod is not included with ZenScreen MB165B.

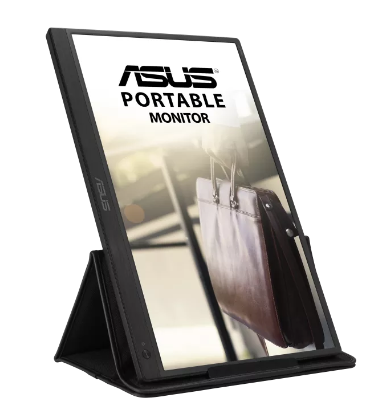

Work efficiently in portrait and landscape modes
With ASUS DisplayWidget software*, ZenScreen MB165B can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your laptop. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
*Driver required. Auto Rotate function only works with Windows OS
Display
Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.23*193.54mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : TN
Viewing Angle (CR≧10, H/V) : 90°/ 65°
Pixel Pitch : 0.252mm
Resolution : 1366x768 (WXGA )
Brightness (Typ.) : 220cd/㎡
Contrast Ratio (Typ.) : 500:1
Display Colors : 260K
Response Time : 10ms(Tr+Tf)
Refresh Rate (Max) : 60Hz
Flicker-free : No
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.23*193.54mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : TN
Viewing Angle (CR≧10, H/V) : 90°/ 65°
Pixel Pitch : 0.252mm
Resolution : 1366x768 (WXGA )
Brightness (Typ.) : 220cd/㎡
Contrast Ratio (Typ.) : 500:1
Display Colors : 260K
Response Time : 10ms(Tr+Tf)
Refresh Rate (Max) : 60Hz
Flicker-free : No
Video Feature
HDCP : Yes
DisplayWidget : Yes
DisplayWidget : Yes
Audio Feature
Speaker : No
I/O Ports
USB 3.2 (Signal) : x 1
Power Consumption
Power Consumption : <7W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : DC: 5V, 3A
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : DC: 5V, 3A
Mechanical Design
Height Adjustment : No
Tripod Socket : Yes
Tripod Socket : Yes
Dimensions (Esti.)
Phys. Dimension without Stand (W x H x D) : 360.14*225.64*11.8mm
Box Dimension (W x H x D) : 434 x 290 x 76 mm
Box Dimension (W x H x D) : 434 x 290 x 76 mm
Weight (Esti.)
Net Weight without Stand : 780g
Gross Weight : 1.65kg
Gross Weight : 1.65kg
Accessories (vary by regions)
Quick start guide
USB 3.0 cable
Warranty Card
ZenScreen sleeve
USB 3.0 cable
Warranty Card
ZenScreen sleeve
Note
For auto rotation/brightness/contrast adjustment functions, please go to product page, find "support" tab to download and install latest DisplayWidget tool. * DisplayWidget is working under Windows OS only.
