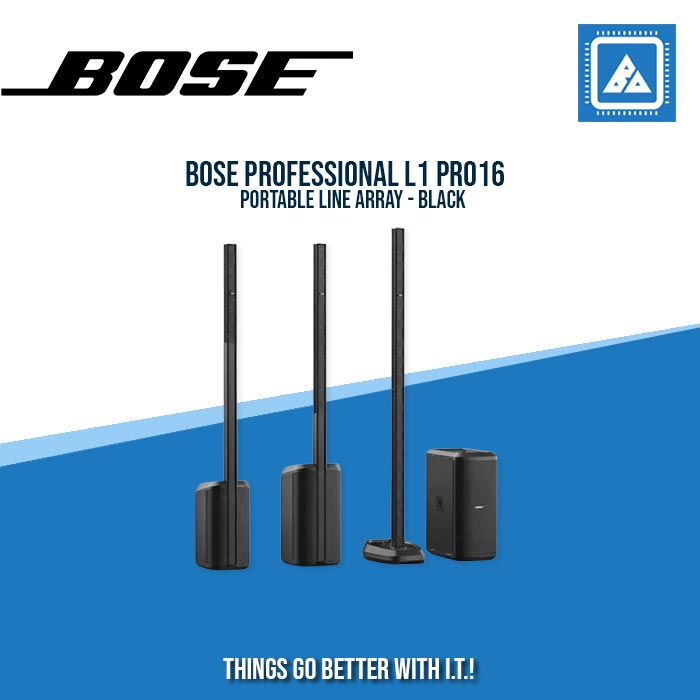

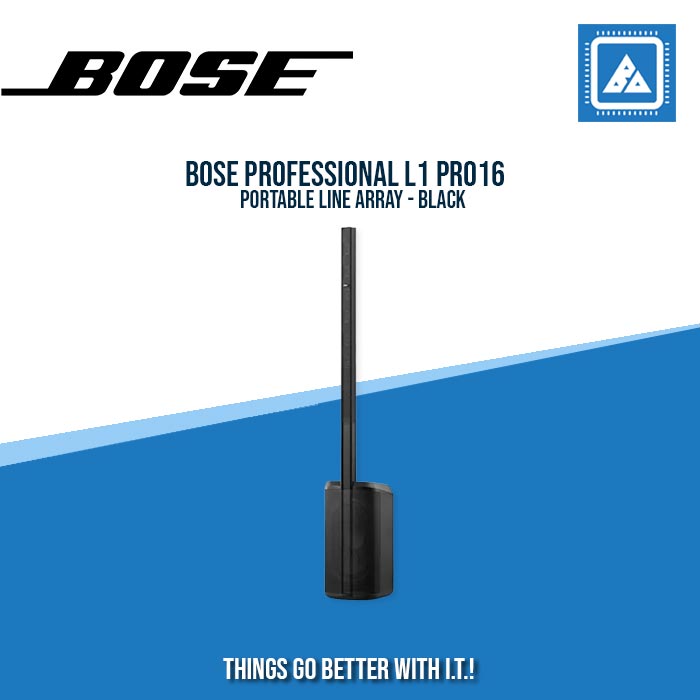

The Bose Professional L1 Pro16 Portable Line Array System is engineered to deliver high-output, full-range sound with enhanced portability, making it ideal for DJs, singer-songwriters, and small ensembles performing in small-to-medium-sized venues.

Key Features:

• J-Shaped Line Array: Equipped with 16 articulated 2-inch neodymium drivers, the L1 Pro16 offers 180-degree horizontal coverage, ensuring consistent sound distribution across the audience.

• Integrated Subwoofer: The system includes a 10 x 18-inch high-excursion neodymium RaceTrack woofer, providing extended low-frequency response and robust bass performance without the need for additional subwoofer units.

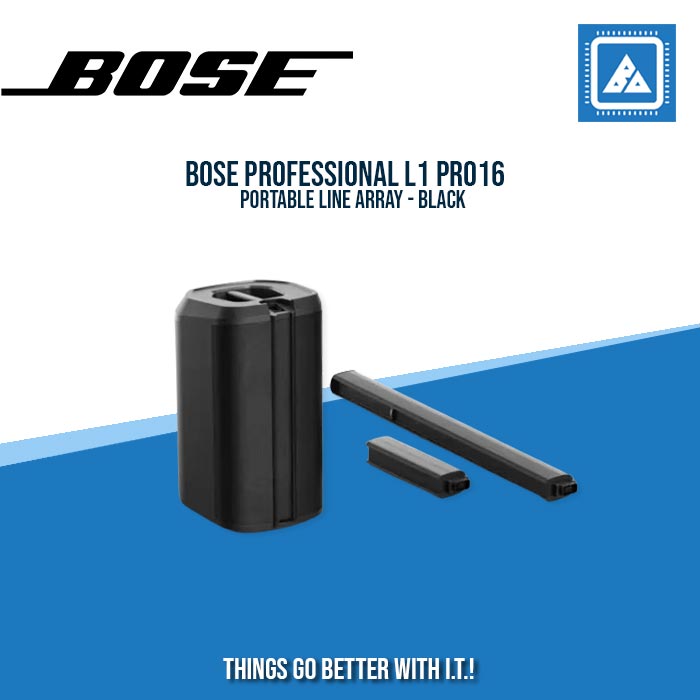

• Modular Design: Designed for easy transport and setup, the system features a three-piece modular design that simplifies packing and carrying.

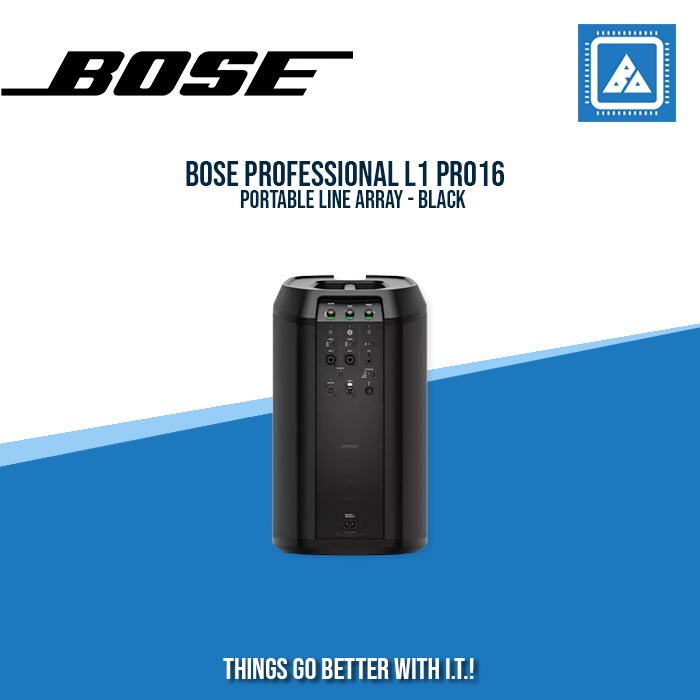

• Built-in Mixer: The L1 Pro16 comes with a built-in mixer offering two combo XLR-1/4-inch inputs, a 1/4-inch and 1/8-inch (3.5 mm) aux input, and Bluetooth® streaming capabilities. This setup allows for seamless connection of various audio sources.



• ToneMatch Presets: The system includes optimized EQ presets for live music, recorded music, and speech, ensuring optimal sound quality across different applications.



• Wireless Control: Users can adjust settings remotely using the Bose Music app, enabling real-time tuning and access to the ToneMatch library of custom EQ presets.



Specifications:

• Frequency Range: 31 Hz – 18 kHz

• Coverage: 180° horizontal, 0°/30° vertical

• Power Handling: Peak power handling of 1,000 watts

• Dimensions: 79.2 inches (2011 mm) height, 14.0 inches (355 mm) width, 18.0 inches (456 mm) depth

• Weight: 50.6 lbs (23.0 kg)

  Feature	Details

  Product Name

  Bose Professional L1 Pro16 Portable Line Array - Black

  Key Features

  Line Array

  16 articulated 2-inch neodymium drivers for 180-degree horizontal coverage

  Subwoofer

  10 x 18-inch high-excursion neodymium RaceTrack woofer for robust bass performance

  Design

  Modular 3-piece design for easy transport and setup

  Built-in Mixer

  Includes two combo XLR-1/4-inch inputs, aux input (1/4-inch and 1/8-inch), Bluetooth® streaming

  ToneMatch Presets

  Optimized EQ presets for live music, recorded music, and speech

  Wireless Control

  Bose Music app for remote adjustment and access to ToneMatch library of custom EQ presets

  Specifications

  Frequency Range

  31 Hz – 18 kHz

  Coverage

  180° horizontal, 0°/30° vertical

  Power Handling

  Peak power handling of 1,000 watts

  Dimensions (H x W x D)

  79.2 inches (2011 mm) height, 14.0 inches (355 mm) width, 18.0 inches (456 mm) depth

  Weight

  50.6 lbs (23.0 kg)

  Applications

  Suitable for live music performances, business presentations, and mobile DJ events
