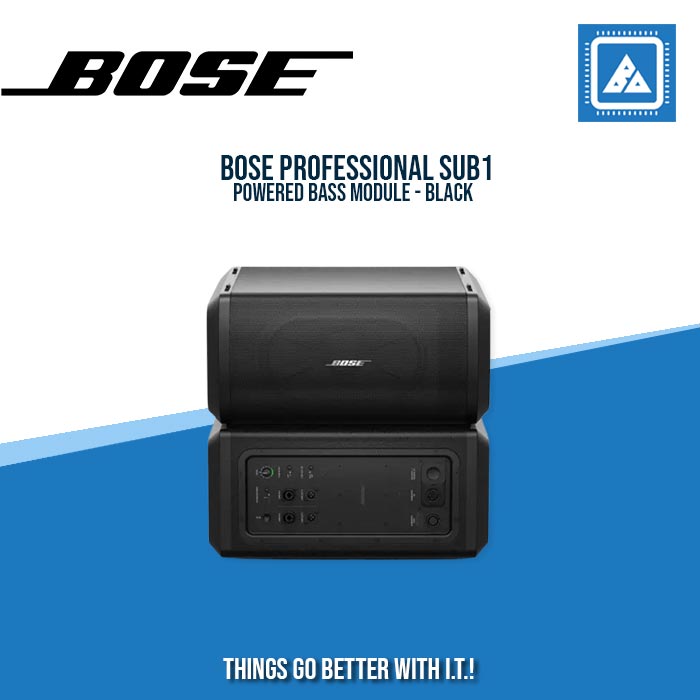

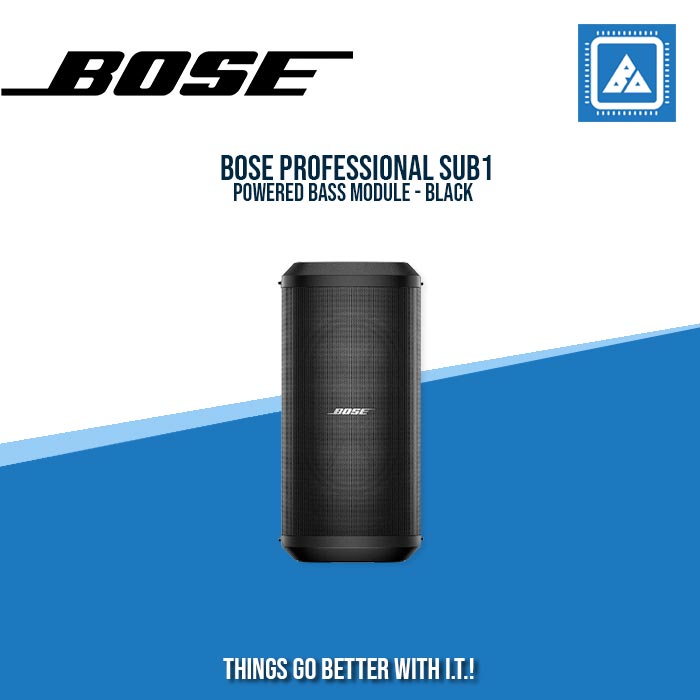

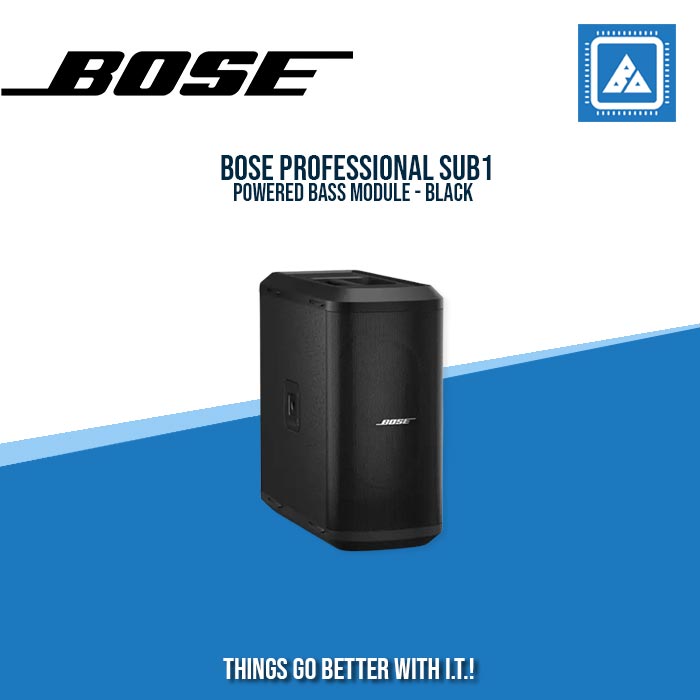

BOSE PROFESSIONAL SUB1 POWERED BASS MODULE - BLACK

The Bose Professional Sub1 Powered Bass Module is a compact yet powerful subwoofer designed to enhance the low-frequency performance of portable PA systems. Its innovative design and features make it suitable for a wide range of applications, including live music performances, corporate events, and public speaking engagements.

Key Features:

• High-Excursion RaceTrack Driver: The Sub1 features a unique 7" × 13" high-excursion RaceTrack driver, delivering deep bass response down to 40 Hz. This design allows for a slim enclosure that rivals the performance of traditional 12" woofers without the bulk.



• Built-In Amplification: Equipped with a 500-watt Class D amplifier, the Sub1 provides powerful bass performance suitable for various venues.

• Integrated Connectivity: The Sub1 connects seamlessly with the Bose L1 Pro32 portable line array via the proprietary SubMatch cable, delivering both power and audio over a single connection. It also features line inputs and outputs with selectable crossover modes, allowing compatibility with other powered loudspeakers.

• Portable Design: Designed for easy transport and setup, the Sub1's slim profile and integrated handles make it ideal for mobile DJs, bands, and event organizers.

Specifications:

• Frequency Response: 32 Hz – 250 Hz

• Coverage Pattern: Omnidirectional

• Power Handling: 480 W peak

• Dimensions: 21.0 inches (533 mm) H × 10.2 inches (260 mm) W × 20.8 inches (529 mm) D

• Weight: 34.1 lbs (15.5 kg)

  Feature	Details

  Product Name

  Bose Professional Sub1 Powered Bass Module - Black

  Key Features

  Driver

  7" × 13" high-excursion RaceTrack driver for deep bass response down to 40 Hz.

  Built-In Amplification

  500-watt Class D amplifier for powerful bass performance.

  Connectivity

  Integrated with proprietary SubMatch cable for seamless power and audio connection to the Bose L1 Pro32, with line inputs/outputs and selectable crossover modes.

  Portable Design

  Slim profile with integrated handles for easy transport and setup.

  Specifications

  Frequency Response

  32 Hz – 250 Hz

  Coverage Pattern

  Omnidirectional

  Power Handling

  480 W peak

  Dimensions (H x W x D)

  Height: 21.0 inches (533 mm), Width: 10.2 inches (260 mm), Depth: 20.8 inches (529 mm)

  Weight

  34.1 lbs (15.5 kg)

  Applications

  Suitable for live performances, mobile DJs, corporate events, and public speaking engagements.
