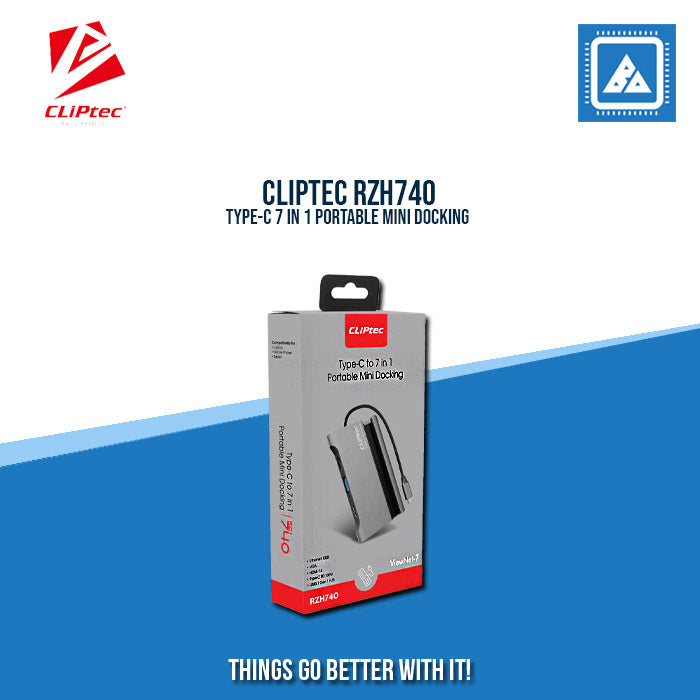

CLiPtec RZH740 TYPE-C 7 in 1 Portable Mini Docking is offering 1 port of HDMI 1.4, 1 port of VGA, 3 port of USB3.1 Gen 1, 1 port of Type –C PD 3.0 100W, and 1 port of 1000Mbps Fast Ethernet. It also backwards compatible with both USB 1.1 and 2.0 specifications. USB 3.2 (Gen 1) is the latest generation technology with (SuperSpeed), where speeds reach up to 10x faster than High-Speed USB (USB2.0), it delivers ultra-fast USB 3.1 (Gen 1) data transfer rates of up to 5Gbps. The Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
USB-A Port: USB 3.1 Gen 1, transfer rates maximum up to 5.0Gbps. (Full-speed12Mbps / High-speed 480Mbps / Super-speed 5.0Gbps)
USB-C Port: PD 3.0 version charging up to 100W.
HDMI: HDMI 1.4 Support 4K*2K@30HZ (Up to 3840*2160@24/25/30HZ & 4096*2160@24hz).
VGA: Support up to 1080p and UXGA. When HDMI&VGA output at the same time, the resolution is up to 1080p.
LAN: Full 10/100/1000 Mbps Fast Ethernet performance. (No driver install required on Win8, Win8.1, Win10, Apple Mac OS X. On other operation system, drivers can be installed from the virtual drives when the product connected to the PC, no need for additional download.)
No Device Driver Required for Hub installation, plug and play.
Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
USB-C to 3ports USB 3.1 (Gen 1) + 1port USB-C + HDMI + VGA + LAN
120.6(L) x 70(W) x 19.2(H) mm
0 to 70 °C
-40 to 85 °C
Operating System Support
Microsoft-Win7 (32bits and 64 bits), Win8, Win8.1, Win10 Apple MAC-Mac OS X v10.1 and later versions
