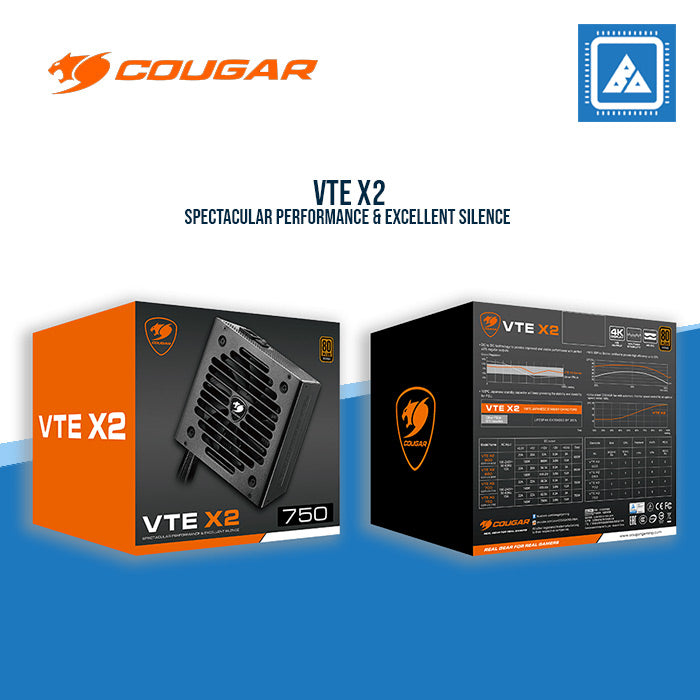

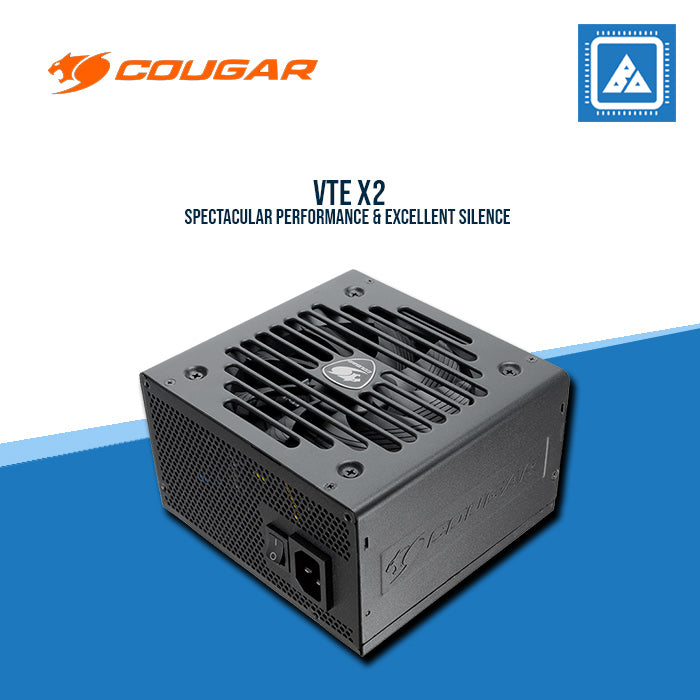

VTE X2
Spectacular Performance & Excellent Silence
600W / 650W / 700W / 750W
COUGAR VTE series is high-quality 80 PLUS Bronze certified with flawless power delivery, efficiency, silence and durability. It is the best choice for those who are looking for a high value and reliable power supply.
Solid Efficiency Certification with 80 PLUS
Highly efficient output and certified with 80 PLUS Bronze. It can provide excellent efficiency to avoid waste and minimize the electric bill.
Stable Performance Output
DC to DC technology to provide improved and stable performance with perfect ±3% regular outputs
Perfect Control Between Noise And Fan Spinning

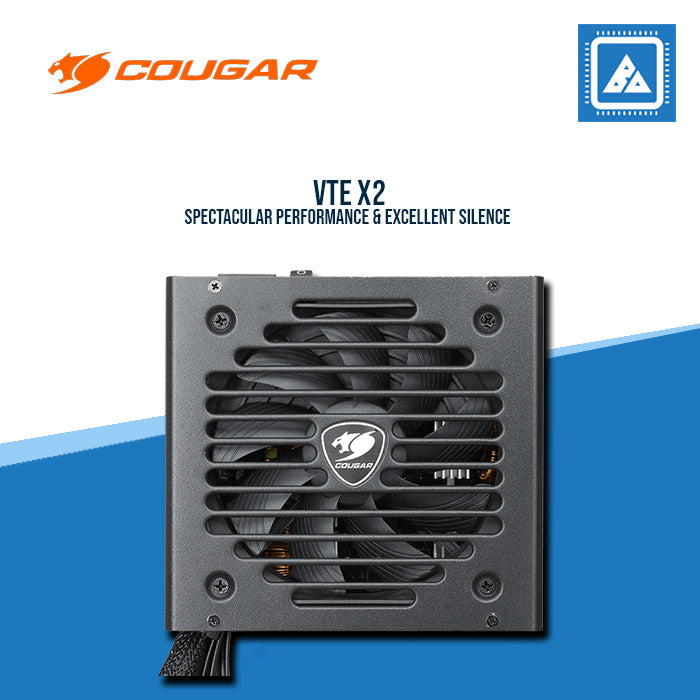

Ultra-Silent 120mm COUAGR fan with automatic thermal speed control for an optimal speed-noise ratio.
Ultra Durability
The VTE X2 is highly durable to provide continuous and flawless power delivery with constantly reliable 105ºC Japanese standby capacitors.
Massive Single +12V DC Output
Extreme Performance for Powerful Graphics Systems
Comparison based on VTE X2 750’s performance data.
Features
Single 12V DC Source
Extreme Performance for Powerful Graphics Systems
PF value up to 99%
Provides clean and reliable power
Compatible with the latest PC
TECHNOLOGY created for user with current and next-generation multi-core CPU platforms
Support PCI express 4.0 next-generation graphics cards with 8(6+2) pin PCI-E connector
FULL PROTECTIONS WITH SCP, OCP, OVP, UVP, OPP
Specifications
| Model Name | AC Input | DC output | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
|
VTE X2 600 CGR VX-600 |
100-240V 50-60Hz 12A |
20A | 20A | 50A | 0.3A | 3A | 600W |
| 130W | 600W | 3.6W | 15W | ||||
|
VTE X2 650 CGR VX-650 |
20A | 20A | 54.1A | 0.3A | 3A | 650W | |
| 130W | 649.2W | 3.6W | 15W | ||||
|
VTE X2 700 CGR VX-700 |
100-240V 50-60Hz 15A |
22A | 22A | 58.3A | 0.3A | 3A | 700W |
| 140W | 699.6W | 3.6W | 15W | ||||
|
VTE X2 750 CGR VX-750 |
22A | 22A | 62.5A | 0.3A | 3A | 750W | |
| 140W | 750W | 3.6W | 15W | ||||
| Connector | Main | CPU | Peripherals | S-ATA | PCI-E |
| Pin | 24(20+4) Pins | 8(4+4) Pins 8 Pins |
4 Pins | 5 Pins | 8(6+2) Pins |
| VTE X2 600 | 1 | 1 | 2 | 6 | 2 |
| VTE X2 650 | 1 | 1 | 2 | 6 | 2 |
| VTE X2 700 | 1 | 1 | 3 | 8 | 4 |
| VTE X2 750 | 1 | 1 | 3 | 8 | 4 |
Packing Data
Protection
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.
OPP (Over Power Protection)
If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.
