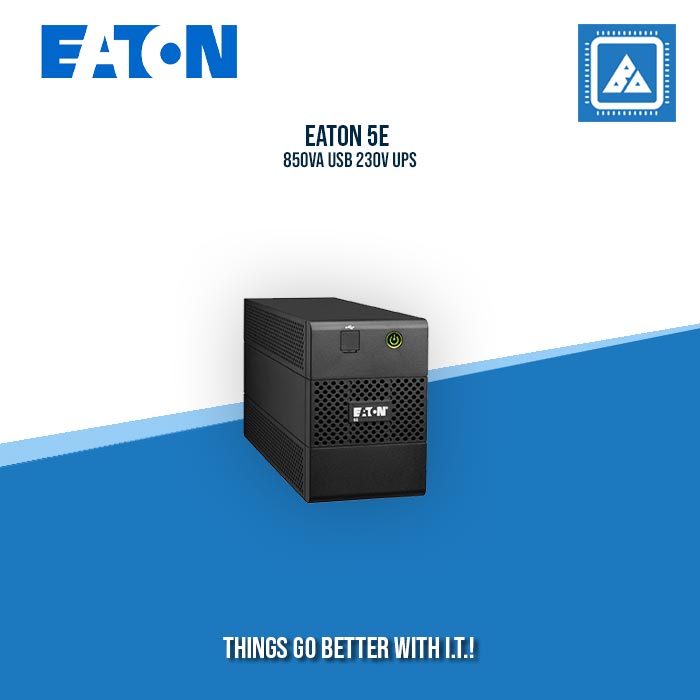

The Eaton 5E 850VA USB 230V UPS is a line-interactive UPS that provides essential power protection for a variety of electronic devices, such as computers, networking equipment, and other critical hardware. It offers the following key features:
-
Capacity: With a 850VA (Volt-Amperes) rating, this UPS can supply up to 850VA/480W of power, making it suitable for supporting several devices or a single computer system.
-
Input Voltage Range: The UPS has a wide input voltage range, allowing it to handle voltages as low as 162V and as high as 290V, ensuring consistent power delivery.
-
Output Voltage Range: It delivers a stable and clean output voltage of 230V AC ± 10% to protect connected devices from voltage fluctuations.
-
Automatic Voltage Regulation (AVR): The line-interactive design with AVR technology corrects voltage fluctuations without relying on the battery, enhancing the longevity of the battery and ensuring stable power to your devices.
-
Battery Backup: In the event of a power outage, the UPS switches to battery power, providing vital runtime for you to save your work and gracefully shut down your equipment.
-
Surge Protection: The UPS includes surge protection to safeguard your devices against voltage spikes and transient surges.
-
USB Port: The UPS features a USB port for HID (Human Interface Device) compliance, allowing it to seamlessly integrate with major operating systems such as Windows, Mac OS, and Linux.
-
Compact Tower Design: It has a space-saving tower form factor that fits easily into home or office environments.
-
Data Line Protection: This UPS also offers data line protection to ensure that your internet line, including xDSL connections, is protected against surges.
-
Battery Management: The UPS includes features such as automatic battery testing, deep-discharge protection, and cold-start capability for efficient and reliable battery performance.
-
Efficiency: The UPS is designed for high efficiency, with a rating of 95%, reducing energy consumption and heat generation.
-
Warranty: It comes with a 2-year warranty for peace of mind.
| Specification | Description |
|---|---|
| Product Name | Eaton 5E UPS |
| Catalog Number | 5E850IUSB |
| UPC | 743172047588 |
| Product Length/Depth | 288 mm |
| Product Height | 148 mm |
| Product Width | 100 mm |
| Product Weight | 5.16 kg |
| Warranty | 2 years |
| Compliances | CE Marked |
| Certifications | cULus Listed, IEC 62040-2 C1-C2, EN 55024, CISPR22 Class B, FCC part 15 Class B, IEC/EN 62040-1, IEC/EN 62040-2, EAC, CE |
| Catalog Notes | EMEA & GLOBAL |
| Product Specifications | |
| Secondary Frequency - Max | 60 Hz |
| Wattage | 480 W |
| Form Factor | Tower |
| Includes Network Card | No |
| Input Connection | C14 |
| Input Voltage - Min | 162 V |
| Output Voltage - Max | 280 V |
| Secondary Frequency - Min | 50 Hz |
| Software Compatibility | Eaton UPS Companion (enables safe system shutdown, energy usage metering, and configuration of UPS settings) |
| Battery Type | Sealed, lead-acid |
| Efficiency | 95 |
| Special Features | Automatic Voltage Regulation (AVR), Saves space with a compact tower design, HID-compliant USB port for automatic integration with major operating systems (Windows/Mac OS/Linux), Data line protection to ensure that the internet line (including xDSL) is protected against surges |
| Construction Type | Free-standing model |
| Output Voltage - Min | 170 V |
| Color | Black |
| Extended Battery Capability | No |
| Output Voltage Range | 170-280 V |
| Topology | Line-interactive |
| Surge Protection | Yes |
| Runtime at Half Load | 5 min |
| Input Nominal Voltage | 230V default (220/230/240V) |
| Input Frequency Range | 45-63 Hz |
| Input Voltage - Max | 290 V |
| Voltage Type | AC |
| Phase (Output) | 1 |
| Battery Management | Automatic battery test, deep-discharge protection, cold-start capable |
| Auto Shutdown Function | Yes |
| Number of Outputs C13 | 4 |
| Operating Temperature - Min | 0 °C |
| VA Rating | 850 VA |
| Potential Free Switch Contact | No |

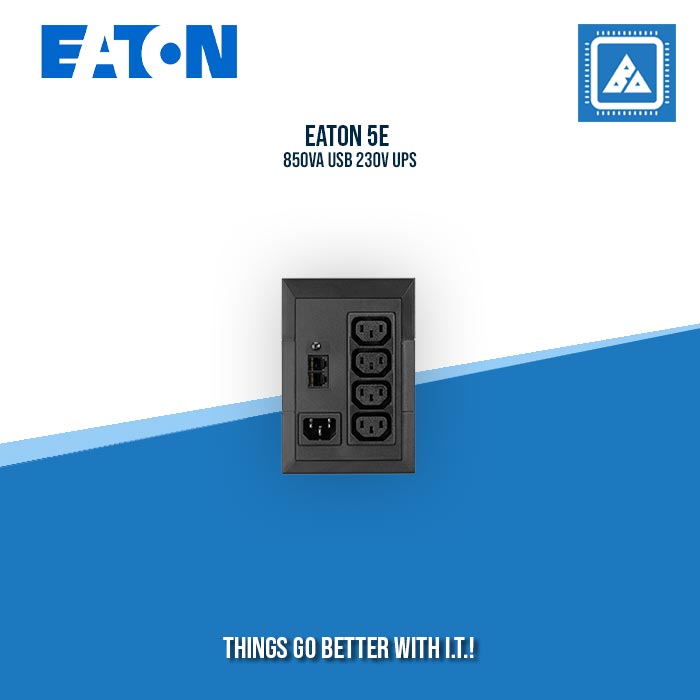

| Receptacle | (4) C13 |
| Phase (Input) | 1 |
| Package Contents | (2) IEC-IEC output cables, User manual |
| Noise Level | <40 dB at 1 meter |
| Feed Type | 1 |
| Runtime Graph | View runtime graph |
| User Interface | LEDs |
| Battery Quantity | 1 |
| Operating Temperature - Max | 40 °C |
| Voltage | 230V |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Ethernet Interface | No |
| Communication | USB port (HID compliant) |
| Relative Humidity | 0-90% non-condensing |
| Output Apparent Power | 850 VA |
| Rack Mounting Kit | No |
| Output Frequency | 50/60 Hz |
| Runtime at Full Load | 30 sec |
| Type of Interface | USB |
| Primary Frequency - Min | 45 Hz |
| Battery Rating | 12 V / 9 Ah |
| Type | UPS |
| Output Nominal Voltage | 230V |
| Expansion Slots | No |
| Input Voltage Range | 162-290 V |
| Nominal Frequency | 50/60 Hz |
| Primary Frequency - Max | 63 Hz |
| Altitude | 2000 m |
