| Projection Technology |
RGB liquid crystal shutter projection system (3LCD) |
| Brightness |
|
| White Light Output (Normal/Eco) |
4,200 lm |
| Colour Light Output |
4,200 lm |

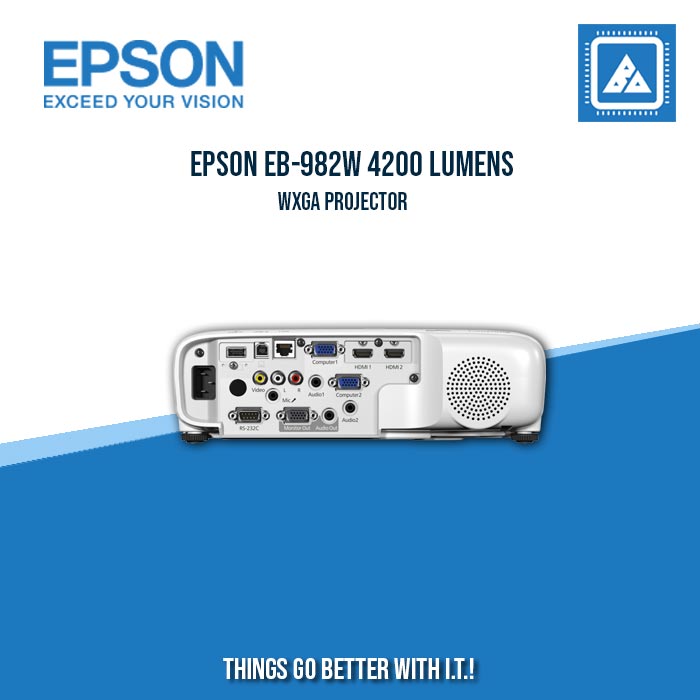

| Connectivity |
|
| USB Interface |
USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings), USB Type B: 1 (for Firmware Update, Copy OSD Settings) |
| Network |
Wireless: 1 (ELPAP11), Wired LAN: 1 |
| Analog Input |
Composite: 1 RCA, D-Sub 15pin: 2 |
| Digital Input |
HDMI: 2 |
| Output Terminal |
D-Sub 15Pin: 1 |
| Audio Input |
Stereo Mini: 2, 2RCA (White & Red): 1 |
| Audio Output |
Stereo Mini Jack: 1 |
| Mic I/O |
Stereo Mini: 1 |
| Control I/O |
RS-232C: 1 |
| Contrast Ratio |
Contrast Ratio: 16,000:1 |
| Screen Size (Projected Distance) |
Standard Size: Tele: 29” to 280” [1.40 to 13.71 m], Wide: 29” to 280” [0.85 to 8.45 m] |
| Geometric Correction |
Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only), Quick Corner: Yes |
| Operating Temperature |
Low Altitude: 5 – 40 °C <41 – 104 °F>, High Altitude: 5 – 35 °C <41 – 95 °F> (20% – 80% Humidity, No Condensation) |
| Operating Altitude |
0 – 3,048 m <0 – 10,000 ft> |
| Start-Up Period |
Up to 6 seconds, Warm-up Period: 30 seconds |
| Cool Down Period |
Instant Off |
| Direct Power On/Off |
Direct Power On/Off: Yes |
| Dimension Excluding Feet (W x H x D) |
309 x 90 x 282 mm |
| Weight |
Approx. 3.1 kg |
| Air Filter |
Type: High Efficiency Filter |
| Maintenance Cycle |
10,000 / 20,000 hours*3 |
| Fan Noise |
Fan Noise (Normal / Eco): 37dB / 28dB |
| Power |
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz |
| Projectors Facets |
Resolution: WXGA, Contrast Ratio: 16,000:1, Brightness Range Lumens: 4001, Features: Wifi, Quick Corner, Laser / Lamp: Lamp |
| Optional Wireless & Built-In Lan Specifications: |
Supported Speed for each Mode: IEEE 802.11b (2.4GHz): 11 Mbps2, IEEE 802.11g (2.4GHz): 54 Mbps2, IEEE 802.11n (2.4GHz): 72.2 Mbps2, IEEE 802.11a (5GHz): 54Mbps2, IEEE 802.11n (5GHz): 150 Mbps*2 |
|
Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK, Access Point: OPEN, WPA2-PSK (AES) |
| Specifications of Main Parts: |
|
| LCD |
Size: 0.59” (C2fine), Native Resolution: WXGA |
| Lightsource |
Life (Normal / Eco): 6,500 / 17,000 hours, Type: 230W UHE |
| Aspect Ratio |
16:10 |
| Projection Lens |
Zoom Ratio: 1 – 1.6, Focal Length: 18.20 – 29.20 mm, Type: Optical Zoom (Manual) / Focus (Manual), F-Number: 1.51-1.99, Throw Ratio: 1.38 – 2.24 (Wide to Tele) |
