TALOS M1 LITE
REFINED GLASSWORK FOR UNHINDERED AIRFLOW
Seamless Tempered Glass Window
3 Built-in 120mm Trio Rings ARGB Fans
One Touch to Easily Switch RGB Streaming Lighting Style, and LED off
Sync with Motherboard
Power Cover Design
Magnetic Dust Filter
Trapezoidal Tempered Glass Front Panel
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Seamless Tempered Glass Window
3 Built-in 120mm Trio Rings ARGB Fans
One Touch to Easily Switch RGB Streaming Lighting Style, and LED off
Sync with Motherboard
Power Cover Design
Magnetic Dust Filter
Trapezoidal Tempered Glass Front Panel
The TALOS M1 LITE is a mid-tower case with a front trapezoidal tempered glass panel that allows robust airflow. The case consists of three built-in 120mm trio-rings ARGB fans and provides a better modding experience with a PSU shroud and a tempered glass window.
SLEEK AND EDGY.
The trapezoidal tempered glass creates a perfect environment for natural airflow, while slightly reflecting the glow of the ARGB fans to further enhance the sharp and modish style of the case.
PSU SHROUD DESIGN
Building upon the inner beauty of the case, a vented power supply shroud at the bottom of the case surrounds the PSU and perfectly hides the cables within the enlarged cable compartment.
ONE CLICK. SYNC ALL.
TALOS M1 LITE supports ARGB connection to compatible motherboards in order to achieve system-wide lighting synchronization, making it easier to unite the case from chaos to calm.
SPECIFICATIONS
Model
TALOS M1-LITE
CASE
Case TypeMID Tower
MB SupportATX、Micro-ATX、Mini-ITX
Synchronization5V 3-Pin Addressable Header
CASE ColorBlack
Expansion Slots7
MaterialSPCC & ABS & Tempered glass
WindowFront. Left
Radiator SupportTop:280mm / Front:360mm、280mm / Rear:120mm
Fan SupportTop: 2 x 120mm、2 x 140mm / Front: 3 x 120mm、2 x 140mm、2 x 200mm / Rear: 1 x 120mm、1 x 140mm / Bottom: 2 x 120mm
Pre-installed FansFront: 3 x 120mm ARGB Fans
(Compatible with AEOLUS Box) / Rear: 1 x 120mm Fan
(Compatible with AEOLUS Box) / Rear: 1 x 120mm Fan
Drive Bays2 x 3.5" or 1 x 2.5" + 1 x 3.5" (HDD Cage) / 1 x 2.5"
I/O PortUSB 3.0 x1、USB 2.0 x2、HD Audio x1、Fan LED control x1、Fan Speed control x1
ClearanceCPU cooler height limitation: 170mm
VGA length limitation: 330mm
PSU length limitation: 170mm
VGA length limitation: 330mm
PSU length limitation: 170mm
Dimension (L x W x H)410 x 215 x 485 mm
Net Weight7.5 kg / 16.5 lb
Pre-installed Control BOX6 Ports Hub (3 ports are used)

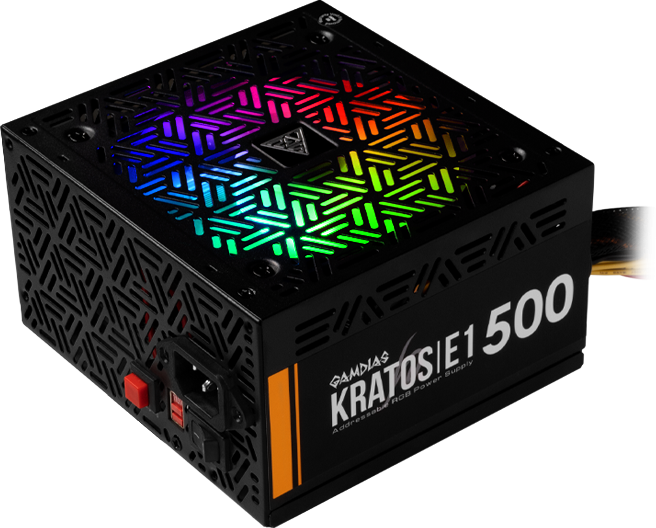

SMART AND DURABLE

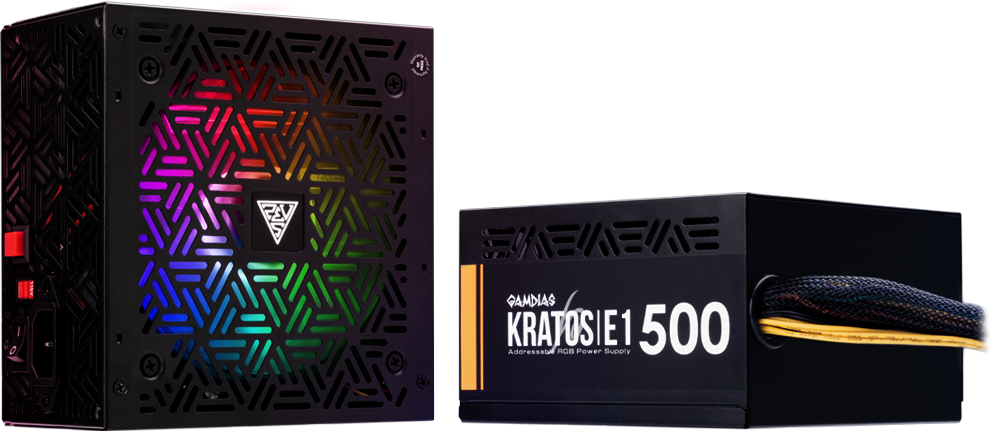

KRATOS E1 500 offers 80% energy efficiency to greatly reduce noise and operation cost. With built-in RGB lighting effects and addressable LEDs, a preferable individual style can be effortlessly achieved.
CUSTOMIZABLE AND ADAPTIVE

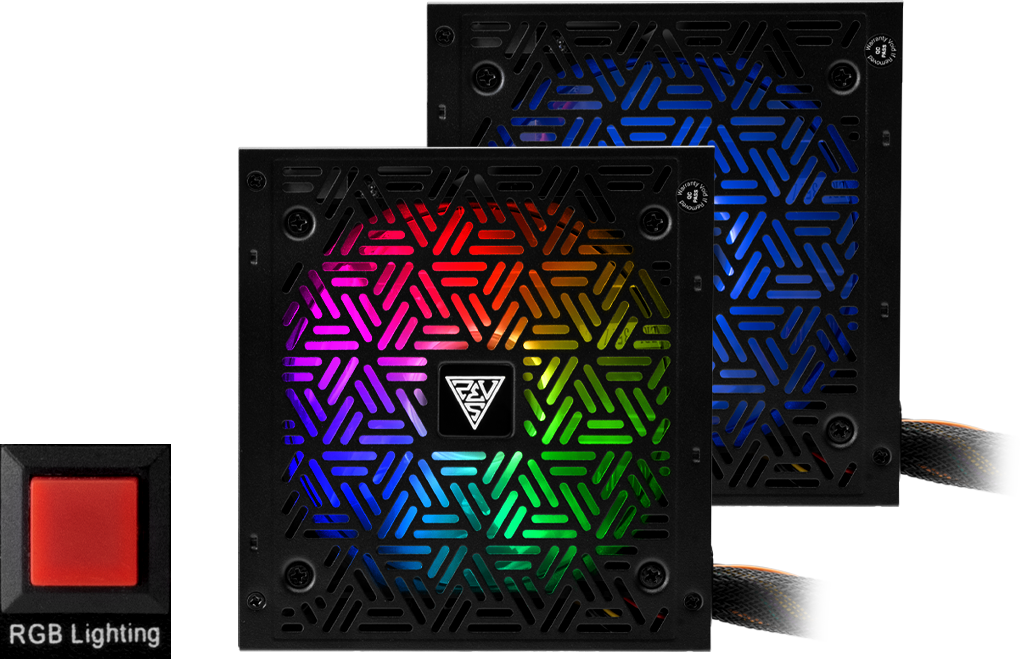

KRATOS E1-500 supports addressable RGB sync via motherboard manufacturer's sync software and also has 30 built-in lighting effects easily accessible with a simple button switch.

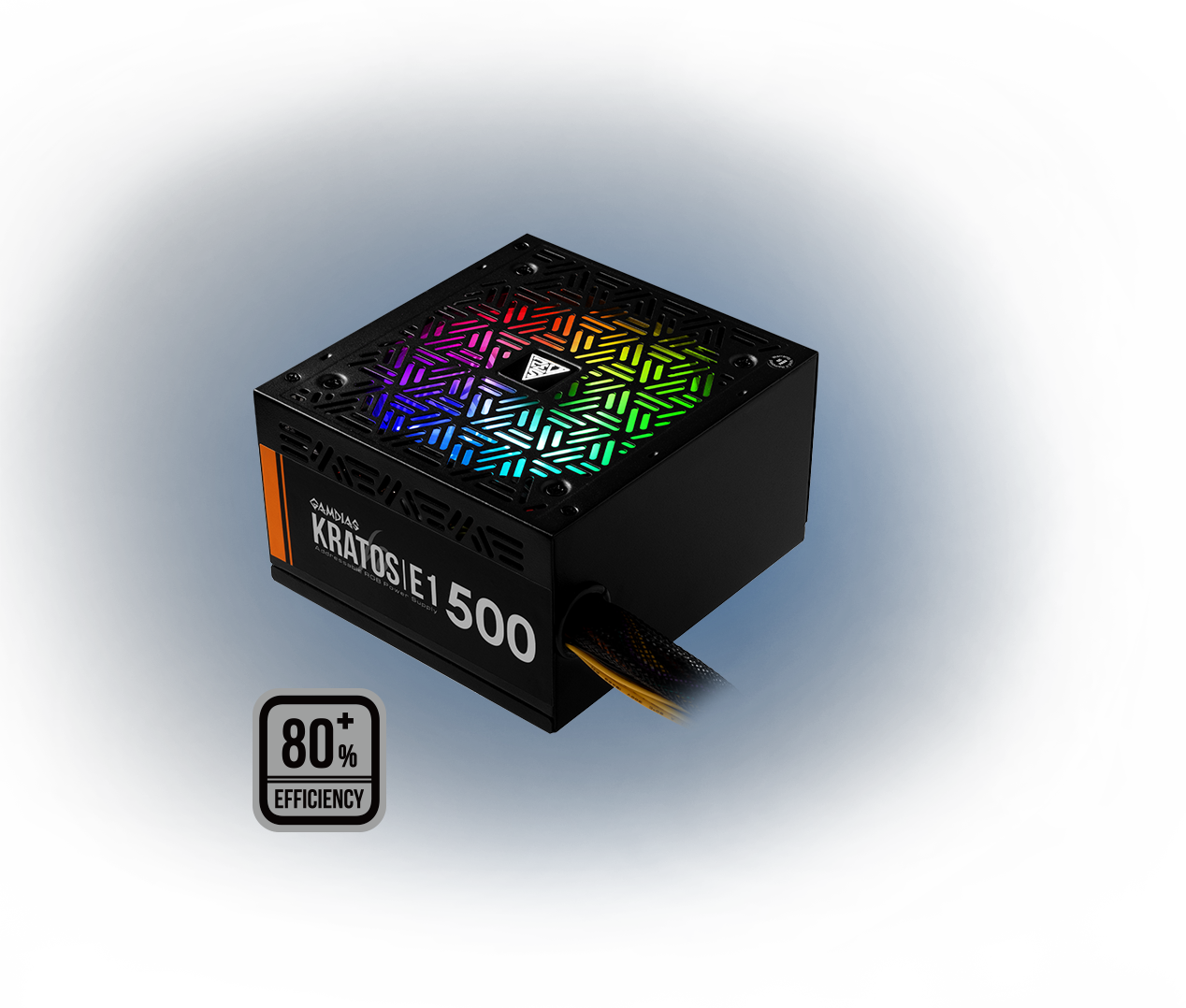

EXTRAORDINARY EFFICIENCY
KRATOS E1-500 can perfectly draw power at 80% efficiency while releasing minimal heat. With less heat generated, less noise arises.
SMART VENTILATION
The power supply unit supports automatic fan speed optimization which adjusts its fan speed according to the temperature and load.
SPECIFICATIONS
Model
KRATOS E1-500
POWER
TypeATX12V v2.4
EfficiencyMeet 80% efficiency
Support MB Sync5V 3-pin Addressable (Digital) RGB Header Only
Dimension (L x W x H)140 x 150 x 86 mm
Support C6/C7 power stateYes
AC Input100-130V;220-240V / 3.5A-7.5A / 47-63Hz
DC Output+3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current15A / 15A / 32A / 0.3A / 2.5A
Max. Output Power100W / 384W / 3.6W / 12.5W
Total Power500W
ProtectionOVP / UVP / OPP / SCP
Main Power1 (20+4 Pin)
CPU1 (4+4 Pin)
PCI-E2 (6+2 Pin)
SATA5 (5 Pin)
Molex2 (4 Pin)
Floppy1 (4 Pin)
Lighting Effect30 Neon-Flex RGB
Silent ModeNo
DC to DCNo
