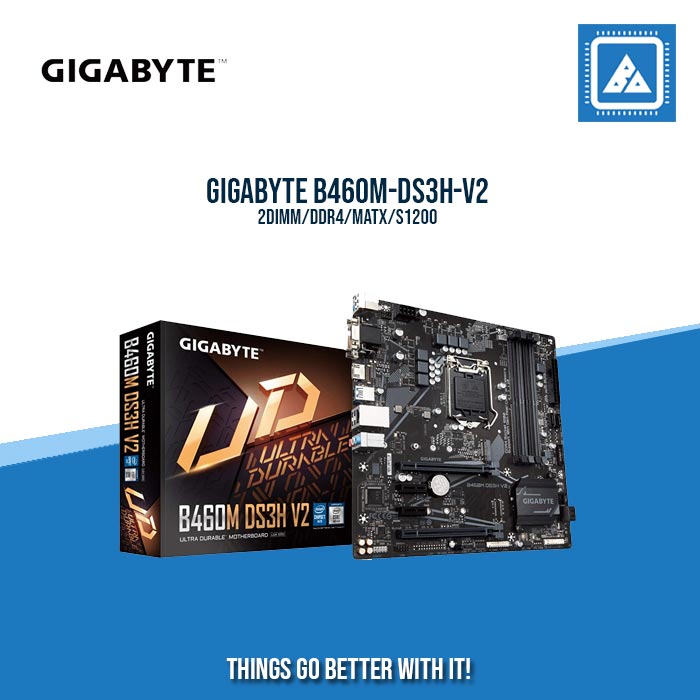

GIGABYTE B460M-DS3H-V2/2DIMM/DDR4/MATX/S1200
GIGABYTE B460M-DS3H-V2/2DIMM/DDR4/MATX/S1200

GIGABYTE B460M-DS3H-V2/2DIMM/DDR4/MATX/S1200

Product SKU: N/A
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Wishlist Compare
₱5,670.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
Intel® Ultra Durable Motherboard with Intel® GbE with cFosSpeed, PCIe Gen3 x4 M.2,  HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5, RGB FUSION 2.0

    • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
    • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
    • NVMe PCIe Gen3 X4 M.2 Connectors
    • Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
    • Intel® Optane™ Memory Ready
    • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
    • 3 Display Interfaces Support
    • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
    • Anti-Sulfur Resistors Design
    • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
    * Actual support may vary by CPU.
      • CPU
        1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
        2. L3 cache varies with CPU
        (Please refer "CPU Support List" for more information.)
      • Chipset
        1. Intel®H470 Express Chipset
      • Memory
        1. Intel® Core™ i9/i7 processors:
          Support for DDR4 2933/2666/2400/2133 MHz memory modules
        2. Intel® Core™ i5/i3/Pentium®/Celeron®processors:
          Support for DDR4 2666/2400/2133 MHz memory modules
        3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
        4. Dual channel memory architecture
        5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
        7. Support for Extreme Memory Profile (XMP) memory modules
        (Please refer "Memory Support List" for more information.)
      • Onboard Graphics
        Integrated Graphics Processor-Intel® HD Graphics support:
        1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
          * D-Sub port, supported by 10th Generation processors only.
        2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
          * The DVI-D port does not support D-Sub connection by adapter.
        3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
          * Support for HDMI 1.4 version and HDCP 2.3.
        Support up to three displays (limited to 10th Generation Intel processors only)
        Maximum shared memory of 512 MB
      • Audio
        1. Realtek® Audio CODEC
        2. High Definition Audio
        3. 2/4/5.1/7.1-channel
          * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
      • LAN
        1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
      • Expansion Slots
        1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
          * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        3. 2 x PCI Express x1 slots
          (All of the PCI Express slots conform to PCI Express 3.0 standard.)
        Supports up to ASPM L1.2 power management protocols.
      • Multi-Graphics Technology
        1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
      • Storage Interface
        1. 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
        2. 4 x SATA 6Gb/s connectors
        3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
          * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
        Intel® Optane™ Memory Ready
        M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
      • USB
        Chipset:
        1. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
        2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      • Internal I/O Connectors
        1. 1 x 24-pin ATX main power connector
        2. 1 x 8-pin ATX 12V power connector
        3. 1 x CPU fan header
        4. 1 x system fan header
        5. 1 x addressable LED strip header
        6. 1 x RGB LED strip header
        7. 1 x M.2 Socket 3 connector
        8. 4 x SATA 6Gb/s connectors
        9. 1 x front panel header
        10. 1 x front panel audio header
        11. 1 x USB 3.2 Gen 1 header
        12. 2 x USB 2.0/1.1 headers
        13. 2 x Thunderbolt™ add-in card connectors
        14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
        15. 1 x serial port header
        16. 1 x Clear CMOS jumper
        17. 1 x Q-Flash Plus button
      • Back Panel Connectors
        1. 1 x PS/2 keyboard/mouse port
        2. 1 x D-Sub port
        3. 1 x DVI-D port
        4. 1 x HDMI port
        5. 3 x USB 3.2 Gen 1 ports
        6. 2 x USB 2.0/1.1 ports
        7. 1 x RJ-45 port
        8. 3 x audio jacks
      • I/O Controller
        1. iTE® I/O Controller Chip
      • H/W Monitoring
        1. Voltage detection
        2. Temperature detection
        3. Fan speed detection
        4. Fan fail warning
        5. Fan speed control
          * Whether the fan speed control function is supported will depend on the fan you install.
      • BIOS
        1. 1 x 256 Mbit flash
        2. Use of licensed AMI UEFI BIOS
        3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
      • Unique Features
        1. Support for APP Center
          * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
          @BIOS
          EasyTune
          Fast Boot
          Game Boost
          ON/OFF Charge
          RGB Fusion
          Smart Backup
          System Information Viewer
        2. Support for Q-Flash
        3. Support for Q-Flash Plus
      • Bundled Software
        1. Norton® Internet Security (OEM version)
        2. cFosSpeed
      • Operating System
        1. Support for Windows 10 64-bit
      • Form Factor
        1. Micro ATX Form Factor; 24.4cm x 24.4cm
      • Remark
        1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
        2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
