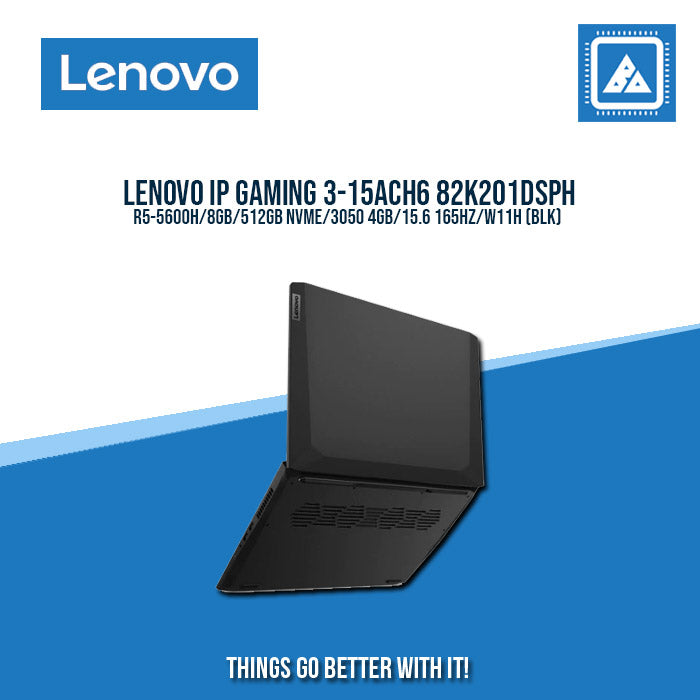

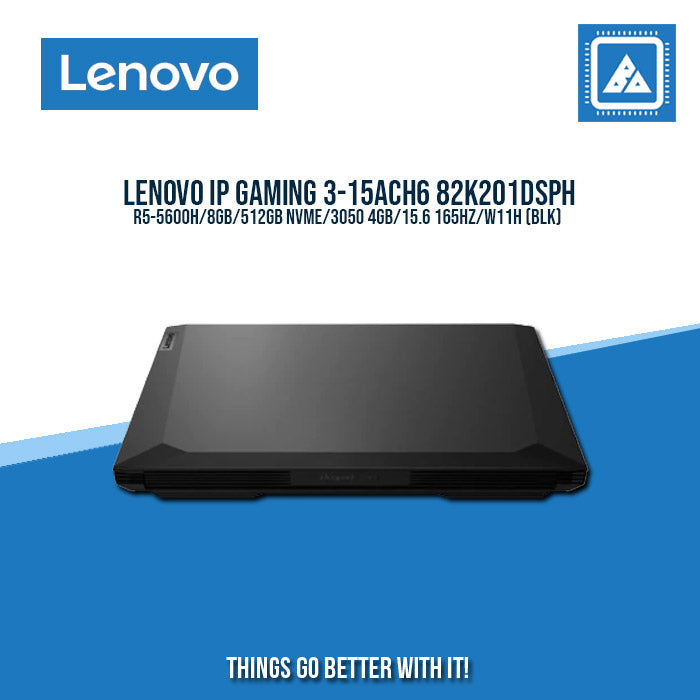

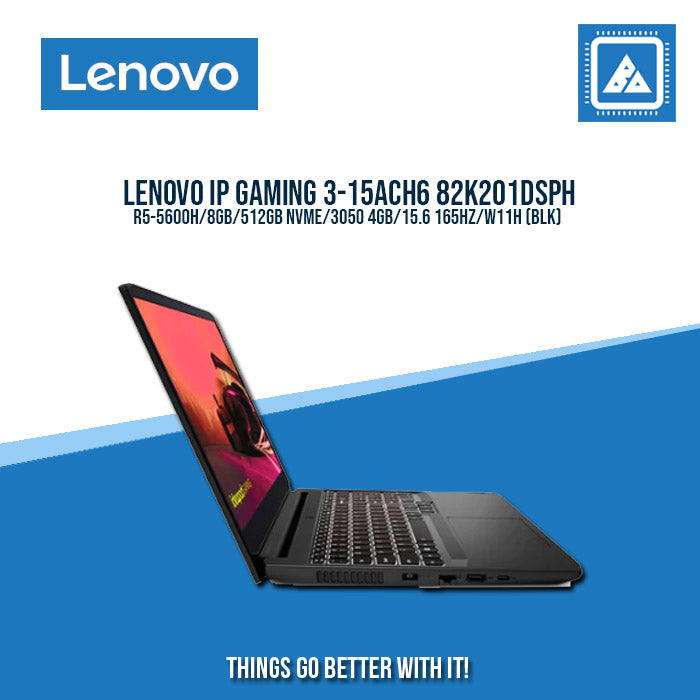

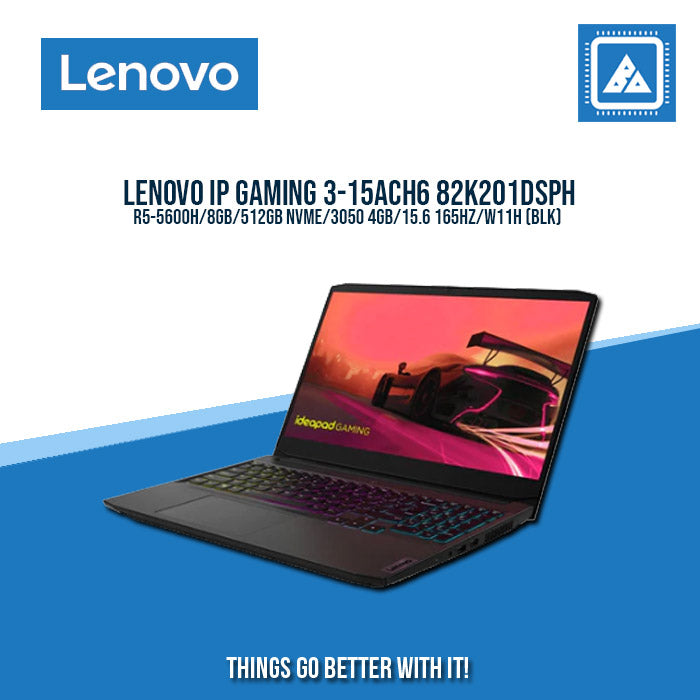

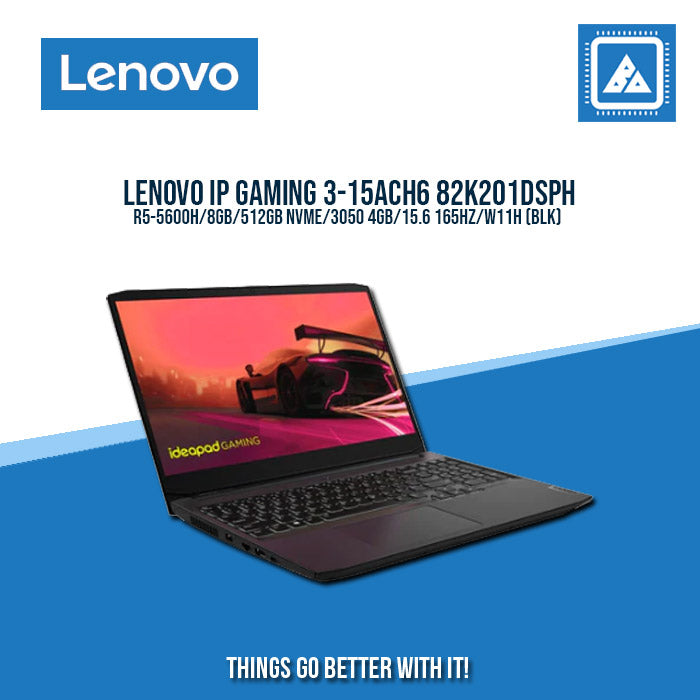

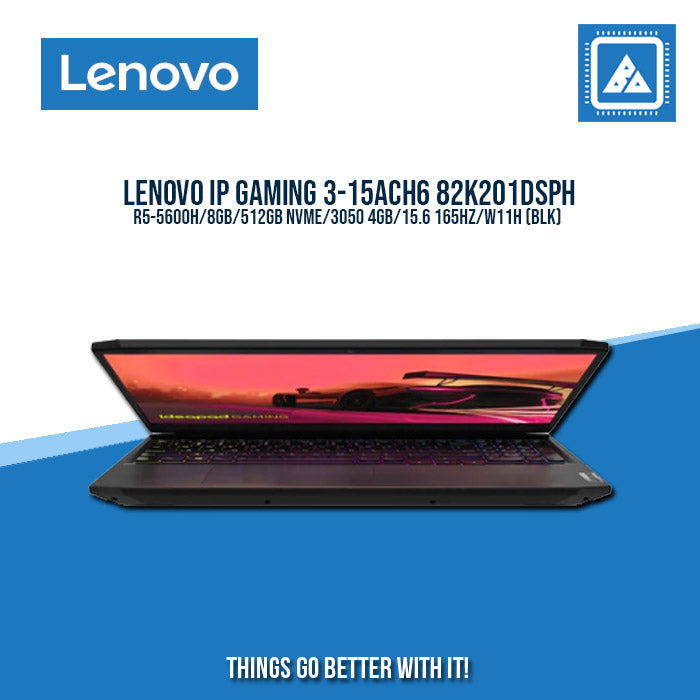

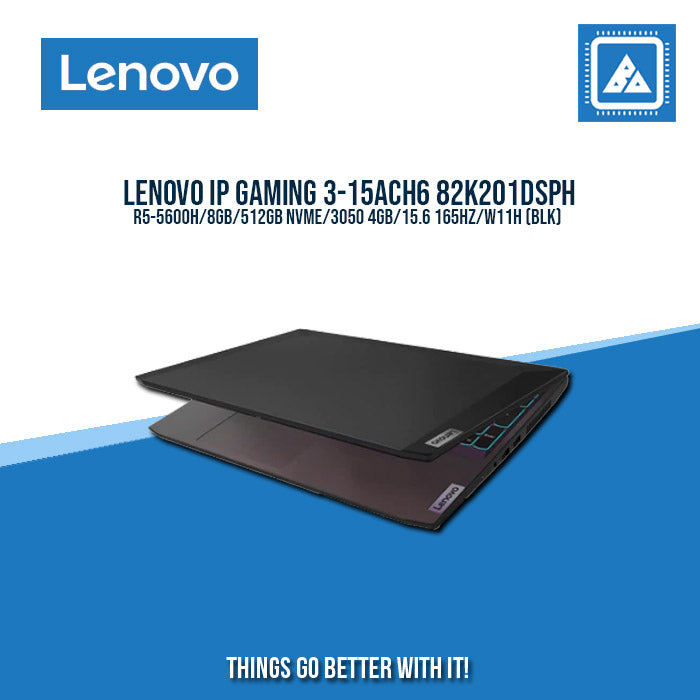

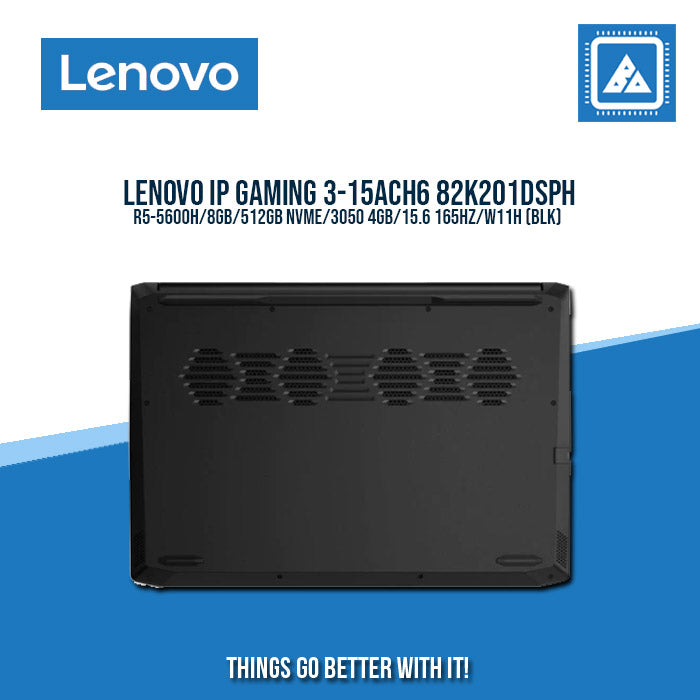

LENOVO IP GAMING 3-15ACH6 82K201DSPH | Gaming Laptop And AutoCAD Users

Technical Specification

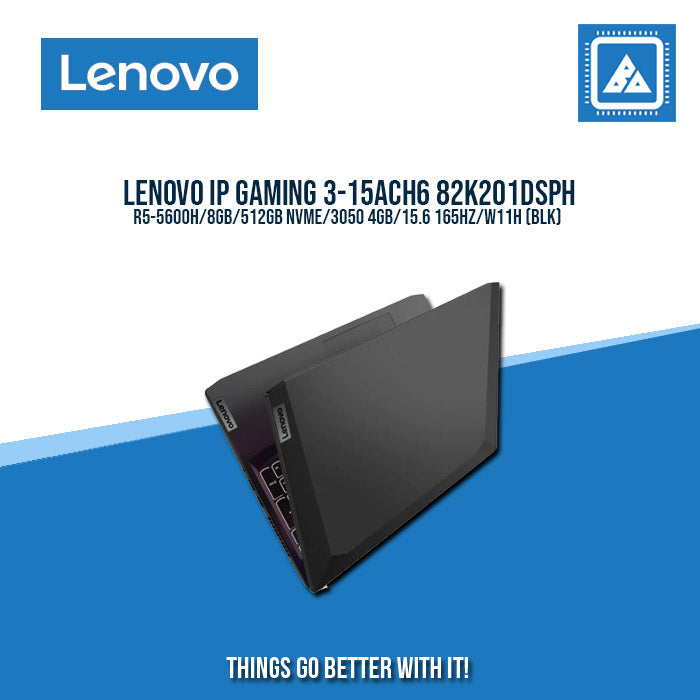

Lenovo IdeaPad Gaming 3 15ACH6

Part Number: 82K201DSPH

PERFORMANCE
Processor:  AMD Ryzen 5 5600H (6C / 12T, 3.3 / 4.2GHz, 3MB L2 / 16MB L3)
Graphics:  NVIDIA GeForce RTX 3050 4GB GDDR6, Boost Clock 1500 / 1635MHz, TGP 85W
Chipset: AMD SoC Platform

Memory:  1x 8GB SO-DIMM DDR4-3200
Memory Slots:  Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory:  Up to 16GB DDR4-3200 offering

Storage:  512GB SSD M.2 2242 PCIe 3.0x4 NVMe
Storage Support:  on-RTX 3060 model: up to two drives, 1x 2.5" HDD + 1x M.2 2242 SSD or
1x M.2 2242/2280 SSD + 1x M.2 2242 SSD ? 2.5" HDD up to 1TB ? M.2 2242 SSD up to 512GB ? M.2 2280 SSD up to 1TB

Card Reader:  None

Optical:  None

Audio Chip:  High Definition (HD) Audio, Realtek ALC3287 codec

Speakers:  Stereo speakers, 2W x2, Nahimic Audio

Camera:  720p with Camera Shutter

Microphone:  2x, Array

Battery:  Integrated 45Wh
Max Battery Life:  MobileMark 2018: 5 hr (45Wh)

Power Adapter:  170W Slim Tip (3-pin)

DESIGN
Display:  15.6 FHD (1920x1080) IPS 300nits Anti-glare, 165Hz, 100% sRGB, DC dimmer

Touchscreen:  None

Keyboard White Backlit, English

Case Color:  Shadow Black

Surface Treatment:  IMR (In-Mold Decoration by Roller)

Case Material:  PC + ABS (Top), PC + ABS (Bottom)

Dimensions (WxDxH):  359.6 x 251.9 x 24.2 mm (14.16 x 9.92 x 0.95 inches)

CONNECTIVITY
Ethernet:  100/1000M
WLAN + Bluetooth Wi-Fi 6 11ax, 2x2 + BT5.0

Standard Ports
2x USB 3.2 Gen 1
1x USB-C 3.2 Gen 1 (support data transfer only)
1x HDMI 2.0
1x Ethernet (RJ-45)
1x Headphone / microphone combo jack (3.5mm)
1x Power connector
