Product Description
Experience today’s top AAA games on the Lenovo™ Legion 5. Inside the clean, minimalist chassis of the Legion 5 is everything you ever need to compete on equal footing with the pros, including the latest generation of AMD processing and NVIDIA® GeForce RTX™ graphics for performance that’s AI-optimized by the Legion AI Engine powering the revolutionary Legion Coldfront 3.0 and Q Control. Excel across every AAA title with a 15″ FHD display at up to 165 Hz refresh rate, featuring 100% sRGB color accuracy and support for Dolby Vision®, as well as the new Nahimic 3D audio and the legendary Legion Truestrike keyboard so you can strike with pinpoint precision. Enjoy purpose-built performance on the Legion 5.
Escalate Your Game
Welcome to next-generation gaming with up to 8 high-performance cores in the AMD Ryzen™ 5 5600H mobile processor, delivering a combination of lightning-fast frame rates with uncompromised battery life.
RTX it’s On
NVIDIA® GeForce RTX™ 30 Series graphics bring 2nd Generation Ray Tracing, 3rd Generation AI Tensor Cores and more for a huge leap in graphical performance.
Fast refresh Deep Colors
Legion 5 delivers speed and color clarity for full-fidelity gaming. Enjoy up to 165 Hz refresh rate, <3 ms response time and 100% sRGB all on a 15.6″ FHD (1920 x 1080) IPS display
Boost Framerates with the Lenovo Legion AI Engine
Exclusive to Lenovo Legion laptops, the Lenovo Legion AI Engine, a system of AI solutions, dynamically shifts power between the CPU and GPU for more FPS on today’s top AAA titles.

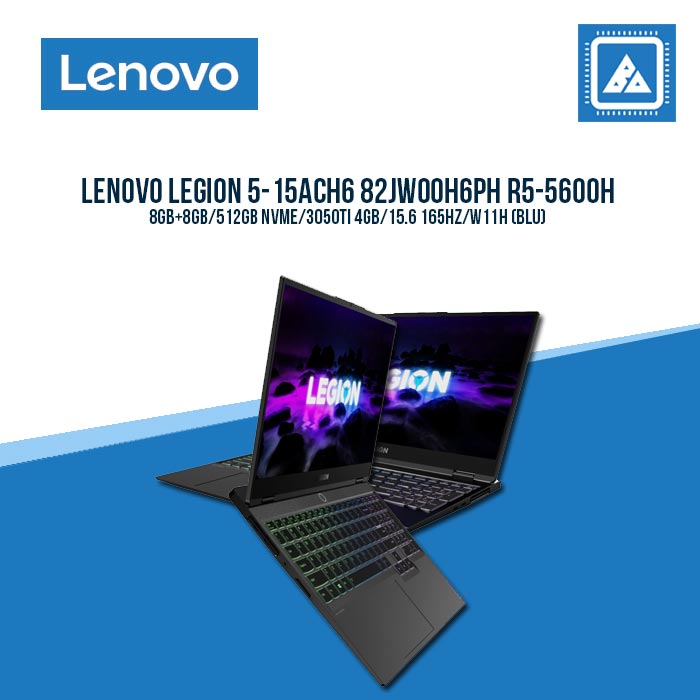

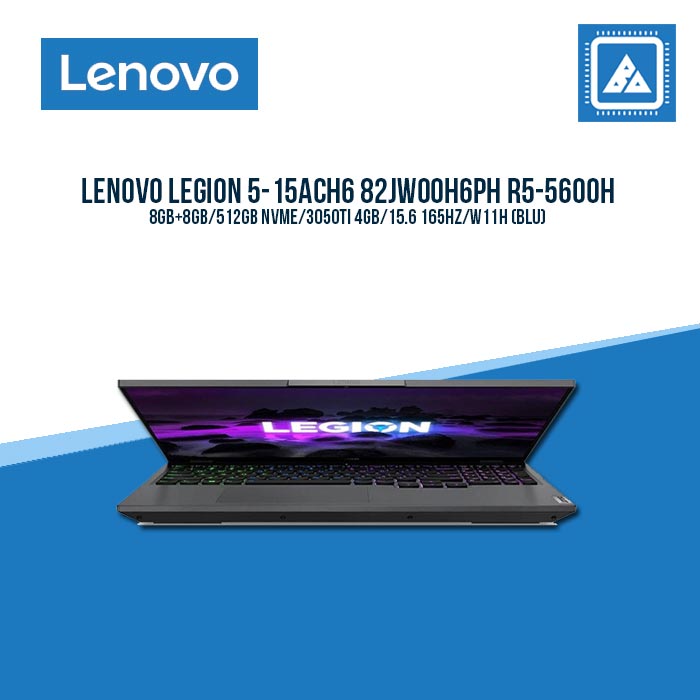

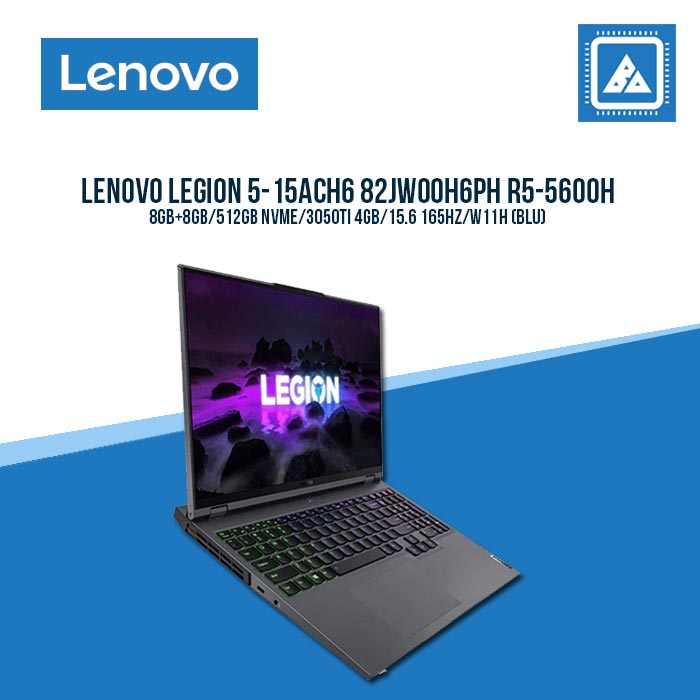

| Lenovo Legion 5 15ACH6 | |
| Model : 82JW00H6PH | |
| Announce Date | 2021-10-05 |
| EAN / UPC / JAN | 196118925936 |
| PERFORMANCE | |
| Processor | AMD Ryzen 5 5600H (6C / 12T, 3.3 / 4.2GHz, 3MB L2 / 16MB L3) |
| Graphics | NVIDIA GeForce RTX 3050 Ti 4GB GDDR6, Boost Clock 1485 / 1695MHz, TGP 95W |
| Chipset | AMD SoC Platform |
| Memory | 2x 8GB SO-DIMM DDR4-3200 |
| Memory Slots | Two DDR4 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 16GB DDR4-3200 offering |
| Storage | 512GB SSD M.2 2280 PCIe 3.0×4 NVMe |
| Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB |
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC3306 codec |
| Speakers | Stereo speakers, 2W x2, Nahimic Audio |
| Camera | 720p with E-camera Shutter |
| Microphone | 2x, Array |
| Battery | Integrated 60Wh |
| Max Battery Life | MobileMark 2018: 7.15 hr (60Wh) |
| Power Adapter | 230W Slim Tip (3-pin) |
| DESIGN | |
| Display | 15.6″ FHD (1920×1080) IPS 300nits Anti-glare, 165Hz, 100% sRGB, Dolby Vision, Free-Sync, G-Sync, DC dimmer |
| Touchscreen | None |
| Keyboard | 4-Zone RGB Backlit, English |
| Case Color | Phantom Blue (Top), Shadow Black (Bottom) |
| Surface Treatment | Painting |
| Case Material | PC + ABS (Top), PC + ABS (Bottom) |
| Dimensions (WxDxH) | 362.56 x 260.61 x 22.5-25.75 mm (14.27 x 10.26 x 0.89-1.01 inches) |
| Weight | 2.4 kg (5.3 lbs) |
| SOFTWARE | |
| Operating System | Windows 11 Home 64, English |
| Bundled Software | Office Trial |
| CONNECTIVITY | |
| Ethernet | 100/1000M |
| WLAN + Bluetooth | Wi-Fi 6 11ax, 2×2 + BT5.1 |
| Standard Ports | 3x USB 3.2 Gen 1 1x USB 3.2 Gen 1 (Always On) 1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4) 1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery and DisplayPort 1.4) 1x HDMI 2.1 1x Ethernet (RJ-45) 1x Headphone / microphone combo jack (3.5mm) 1x Power connector |
| SECURITY & PRIVACY | |
| Security Chip | Firmware TPM 2.0 |
| Fingerprint Reader | None |
| Other Security | E-Camera shutter |
| ACCESSORIES | |
| Bundled Accessories | Lenovo Legion M300 RGB Gaming Mouse |
| CERTIFICATIONS | |
| Green Certifications | ErP Lot 3 RoHS compliant |
