LENOVO LEGION 5-15IAH7H 82RB005VPH I7-12700H | Gaming Laptop And AutoCAD Users

💻💻LENOVO LEGION 5-15IAH7H 82RB005VPH I7-12700H💻💻

𝐒𝐏𝐄𝐂𝐒:


PROCESSOR: Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB
DISPLAY: 15.6" WQHD (2560x1440) IPS 300nits Anti-glare, 165Hz, 100% sRGB, Dolby Vision, G-SYNC, DC dimmer
MEMORY: 2x 8GB SO-DIMM DDR5-4800
STORAGE: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe
Graphics: NVIDIA GeForce RTX 3060 6GB GDDR6, Boost Clock 1702MHz, TGP 140W
OS: Windows 11 Home
MS OFFICE: OFC21HS
Color: Storm Grey





Technical Specification

Model: Lenovo Legion 5 15IAH7H 82RB005VPH
Color: Storm Grey
Processor: Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB
Graphics: NVIDIA GeForce RTX 3060 6GB GDDR6, Boost Clock 1702MHz, TGP 140W
Display: 15.6inch WQHD (2560x1440) IPS 300nits Anti-glare, 165Hz, 100 sRGB, Dolby Vision, G-SYNC, DC dimmer
Chipset: Intel SoC Platform
Memory: 16GB SO-DIMM DDR5-4800 (2x 8GB SO-DIMM DDR5-4800)
Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory: Up to 32GB DDR5-4800 offering
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe
Storage Support: Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 512GB ? M.2 2280 SSD up to 1TB

Storage Slot
Two M.2 slots
Two M.2 2280 PCIe Gen 4x4 slots
support M.2 2242/2280 SSD

Operating System: Windows 11 Home 64 Single Language, English
RAID Preset: None
Card Reader: None

Optical None
Audio Chip: High Definition (HD) Audio, Realtek ALC3287 codec
Speakers: Stereo speakers, 2W x2, Nahimic Audio
Camera: FHD 1080p with E-camera Shutter
Microphone: 2x, Array
Battery Integrated: 80Wh
Max Battery Life: Model with 80Wh battery: MobileMark 2018: 4.05 hr (discrete mode) or 6.68 hr (hybrid mode)
Power Adapter: 300W Slim Tip (3-pin)

DESIGN
Touchscreen: None

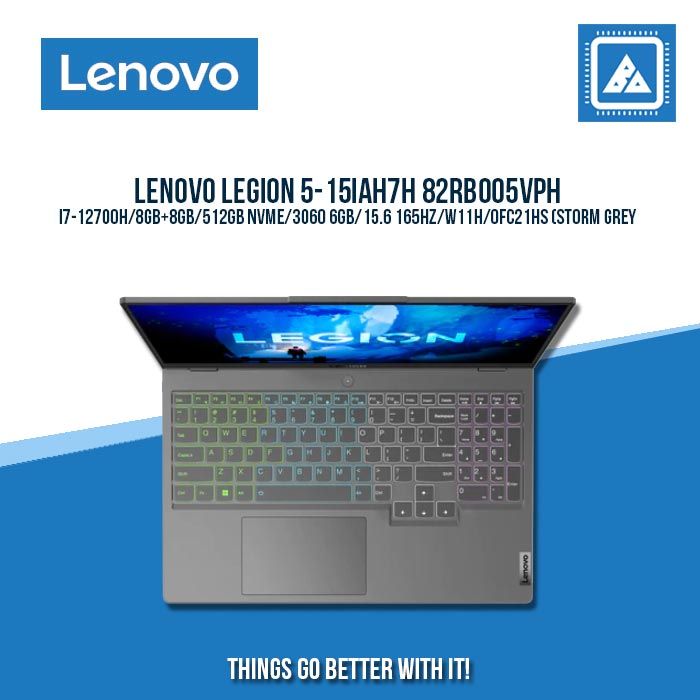

Keyboard: 4-Zone RGB Backlit, English
Surface Treatment: Anodizing
Case Material: Aluminum (Top), PC + ABS (Bottom)
Dimensions: (WxDxH) 358.8 x 262.35 x 19.99 mm (14.13 x 10.33 x 0.79 inches)
Weight: Around 2.4 kg (5.3 lbs)

CONNECTIVITY
Ethernet: 100/1000M
WLAN + Bluetooth: Wi-Fi 6 11ax, 2x2 + BT5.1

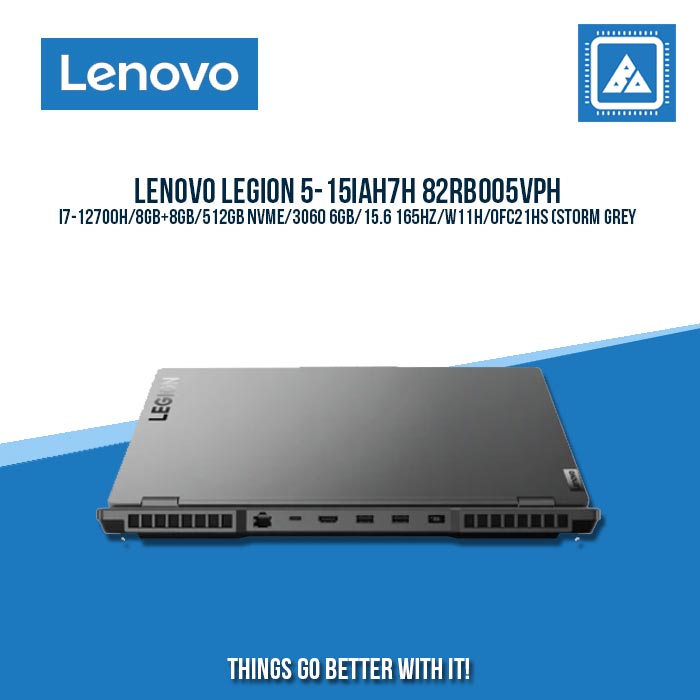

Standard Ports
2x USB 3.2 Gen 1
1x USB 3.2 Gen 1 (Always On)
1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4)
1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery 135W and DisplayPort 1.4)
1x Thunderbolt 4 / USB4 40Gbps (support data transfer and DisplayPort 1.4)
1x HDMI, up to 8K/60Hz
1x Ethernet (RJ-45)
1x Headphone / microphone combo jack (3.5mm)
1x Power connector



SECURITY & PRIVACY
Security Chip Firmware TPM 2.0
Fingerprint Reader None
Other Security E-Camera shutter
