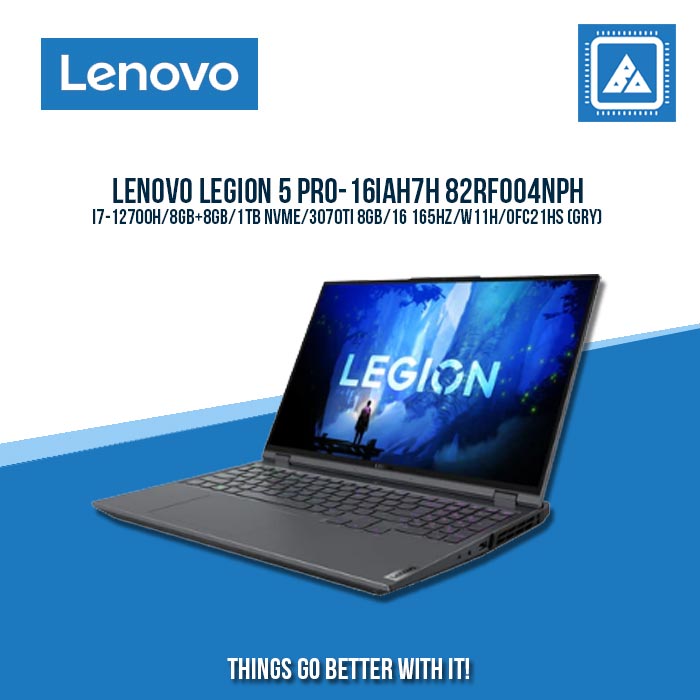

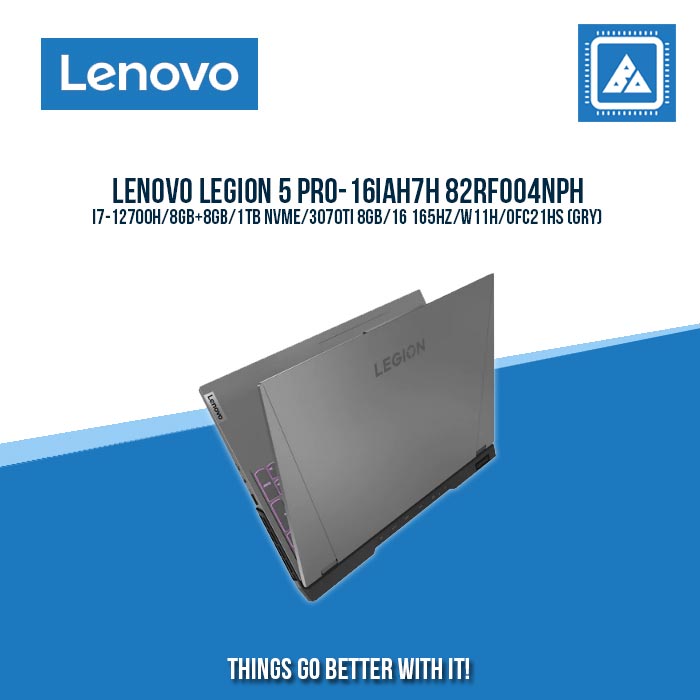

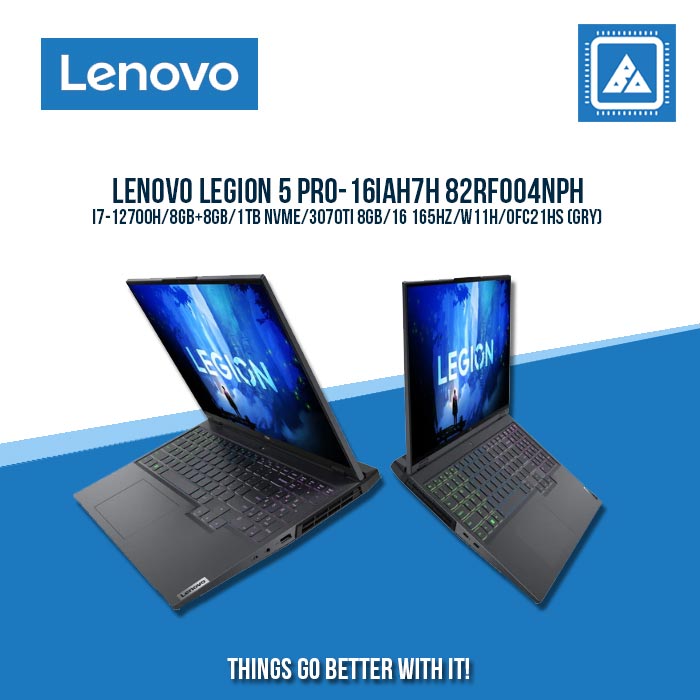

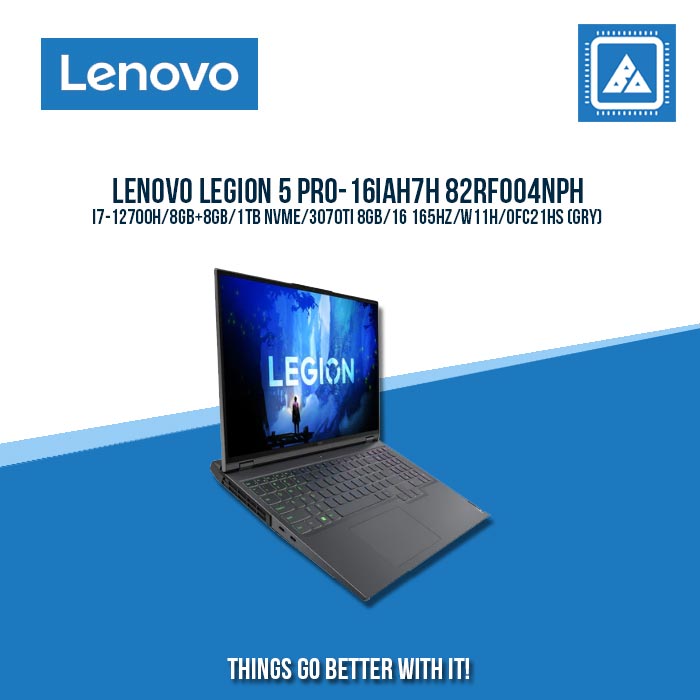

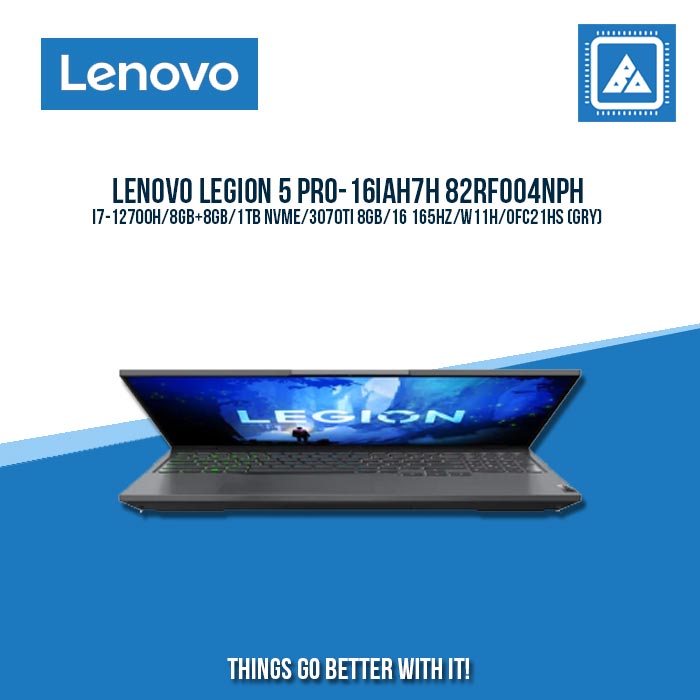

LENOVO LEGION 5 PRO-16IAH7H 82RF004NPH I7-12700H | Gaming Laptop And AutoCAD Users

Technical Specification

Lenovo Legion 5i Pro 16IAH7H 82RF004NPH
Color: Storm Grey
Processor: Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB
Graphics: NVIDIA GeForce RTX 3070 Ti 8GB GDDR6, Boost Clock 1485MHz, TGP 150W
Display: 16inch WQXGA (2560x1600) IPS 500nits Anti-glare, 165Hz, 100 sRGB, Dolby Vision, HDR 400, G-SYNC, DC dimmer, Low Blue Light, High Gaming Performance
Chipset: Intel SoC Platform
Memory; 16GB (2x 8GB SO-DIMM DDR5-4800)
Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory: Up to 32GB DDR5-4800 offering
Storage: 1TB SSD M.2 2280 PCIe 4.0x4 NVMe
Storage Support: Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 512GB ? M.2 2280 SSD up to 1TB
Storage Slot: Two M.2 slots ? Two M.2 2280 PCIe Gen 4x4 slots, support M.2 2242/2280 SSD
Operating System: Windows 11 Home 64 Single Language, English

RAID Preset: None
Card Reader: None
Optical : None
Audio Chip: High Definition (HD) Audio, Realtek ALC3287 codec
Speakers: Stereo speakers, 2W x2, Nahimic Audio
Camera: HD 720p with E-camera Shutter
Microphone: 2x, Array
Battery Integrated: 80Wh
Max Battery Life: MobileMark 2018: 4.01 hr (discrete mode) or 6.55 hr (hybrid mode)
Power Adapter: 300W Slim Tip (3-pin)

Touchscreen: None
Color Calibrator: Factory Color Calibration
Keyboard: 4-Zone RGB Backlit, English
Surface Treatment: Anodizing
Case Material: Aluminium (Top), Aluminium (Bottom)
Dimensions: (WxDxH) 359.9 x 264.4 x 19.9 mm (14.17 x 10.41 x 0.78 inches)
Weight : 2.49 kg (5.49 lbs)

Connectivity
Ethernet: 100/1000M
WLAN + Bluetooth: Wi-Fi 6 11ax, 2x2 + BT5.1

I/O Ports
2x USB 3.2 Gen 1
1x USB 3.2 Gen 1 (Always On)
1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4)
1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery 135W and DisplayPort 1.4)
1x Thunderbolt 4 / USB4 40Gbps (support data transfer and DisplayPort 1.4)
1x HDMI, up to 8K/60Hz
1x Ethernet (RJ-45)
1x Headphone / microphone combo jack (3.5mm)
1x Power connector

Security
Security Chip  Firmware TPM 2.0
Fingerprint Reader      None
Other Security E-Camera shutter

Warranty: 3Y ADP -IPMAIN(ESS) (5PS1D04072), 3Y Legion Ultimate Support -IPMAIN (ESS) (5WS1C87094)

ACCESSORIES -

Bundled Accessories None

CERTIFICATIONS

Green Certifications  ErP Lot 3

 RoHS compliant

 TÜV Rheinland High Gaming Performance (WQXGA display model only)

 TÜV Rheinland Low Blue Light (Hardware Solution)
