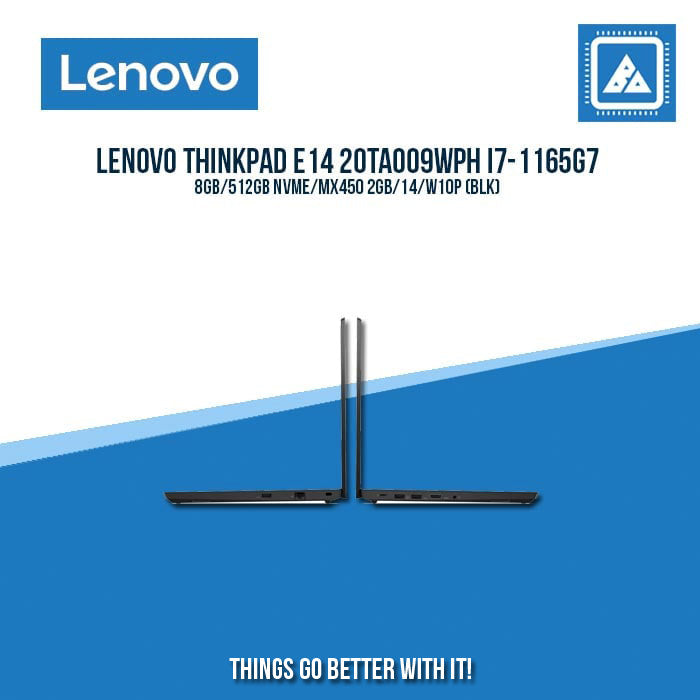

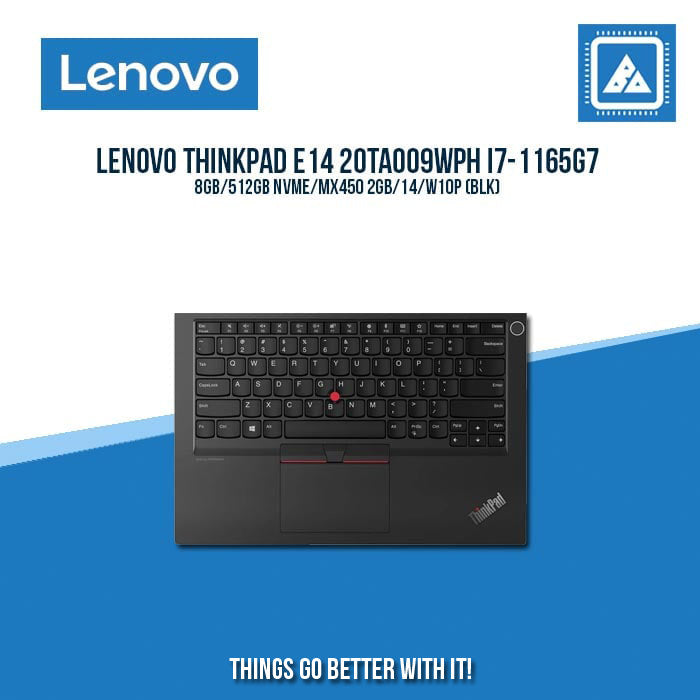

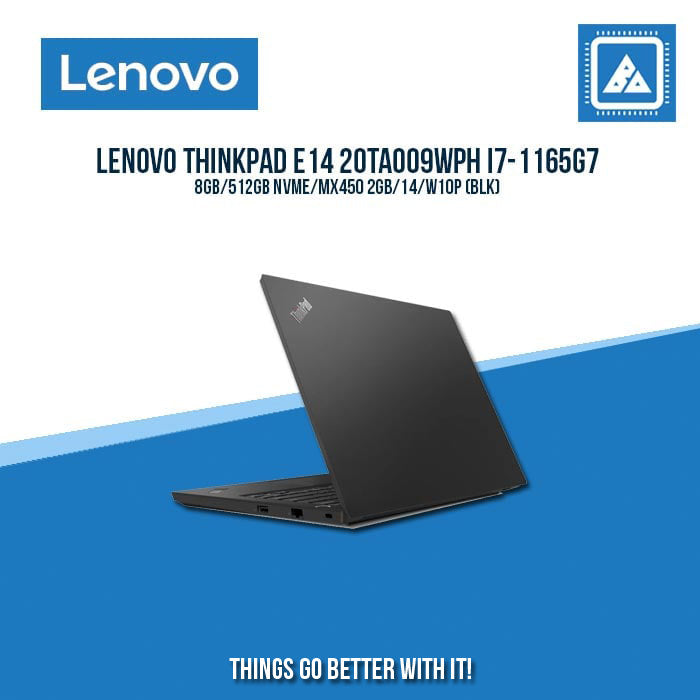

LENOVO THINKPAD E14 20TA009WPH I7-1165G7 | Best For Students and Freelancers

Technical Specifications

Model: LENOVO ThinkPad E14 Gen 2 (Intel)

Part Number :  20TA009WPH

Upgraded: 16gb ram DDR5

PERFORMANCE

Processor Intel Core i7-1165G7 (4C / 8T, 2.8 / 4.7GHz, 12MB)

Graphics NVIDIA GeForce MX450 2GB GDDR5

Chipset Intel SoC Platform

Memory 1x 8GB SO-DIMM DDR4-3200

Memory Slots One DDR4 SO-DIMM slot

Max Memory Up to 32GB DDR4-3200

Storage 512GB SSD M.2 2242 PCIe 3.0x4 NVMe

Storage Support Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 512GB ? M.2 2280 SSD up to 1TB

Card Reader No card reader

Optical None

Audio Chip High Definition (HD) Audio, Realtek ALC3287 codec

Speakers Stereo speakers, 2W x2, Dolby Audio, Harman Speakers

Camera 720p with Privacy Shutter

Microphone 2x, Array

Battery Integrated 45Wh

Max Battery Life MobileMark 2014: 11.9 hr MobileMark 2018: 8.7 hr

Power Adapter 65W USB-C (3-pin)

DESIGN

Display 14" FHD (1920x1080) IPS 250nits Anti-glare

Touchscreen None

Keyboard Non-backlit, English

Case Color Black

Case Material Aluminium (Top), PC + ABS (Bottom)

Dimensions (WxDxH) 324 x 220 x 18.9 mm (12.76 x 8.66 x 0.74 inches)

Weight 1.59 kg (3.51 lbs)

SOFTWARE

Operating System Windows 10 Pro 64, English

Bundled Software None

CONNECTIVITY

Ethernet 100/1000M

WLAN + Bluetooth Intel AX201 11ax, 2x2 + BT5.2

WWAN None

SIM Card None

NFC None

Standard Ports 1x USB 2.0

1x USB 3.2 Gen 1 (Always On)

1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4)

1x HDMI 1.4b

1x Ethernet (RJ-45)

1x Headphone / microphone combo jack (3.5mm)

Monitor Cable None

Docking Various docking solutions supported via Thunderbolt. For more compatible docking solutions, please visit Docking for ThinkPad E14 Gen 2 (Intel)

SECURITY & PRIVACY

Smart Card Reader None

Security Chip Firmware TPM 2.0

Fingerprint Reader Touch Style

Physical Locks Kensington Security Slot

Other Security Camera privacy shutter

MANAGEABILITY

System Management None

SERVICE

Base Warranty 1-year, Depot

Included Upgrade 3Y Courier/Carry-in upgrade from 1Y Courier/Carry-in (5WS0A23813)
