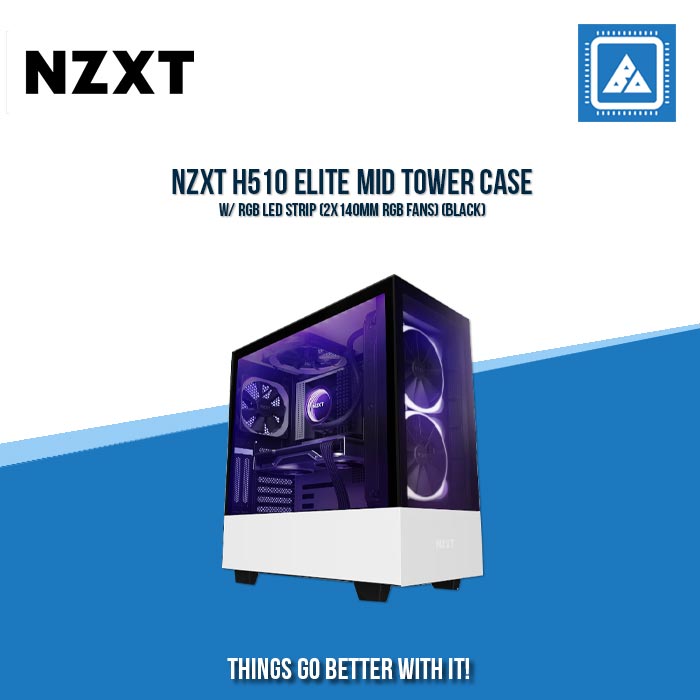

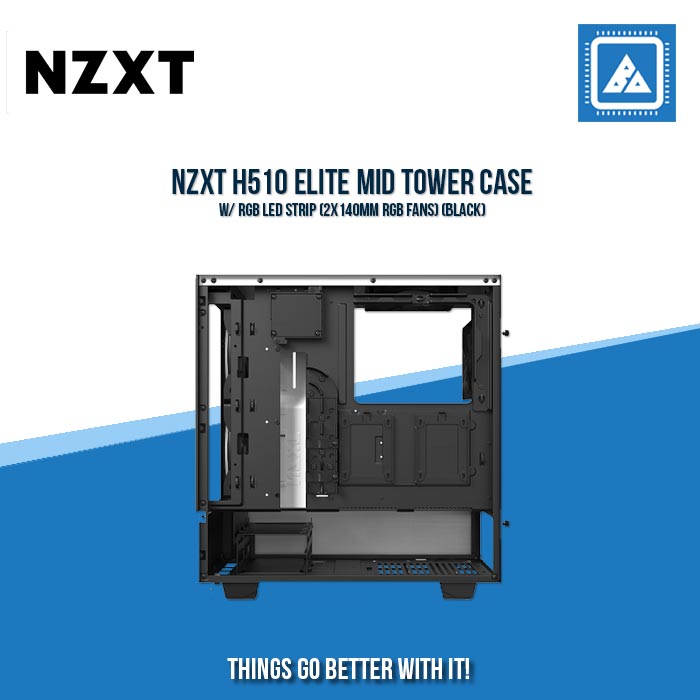

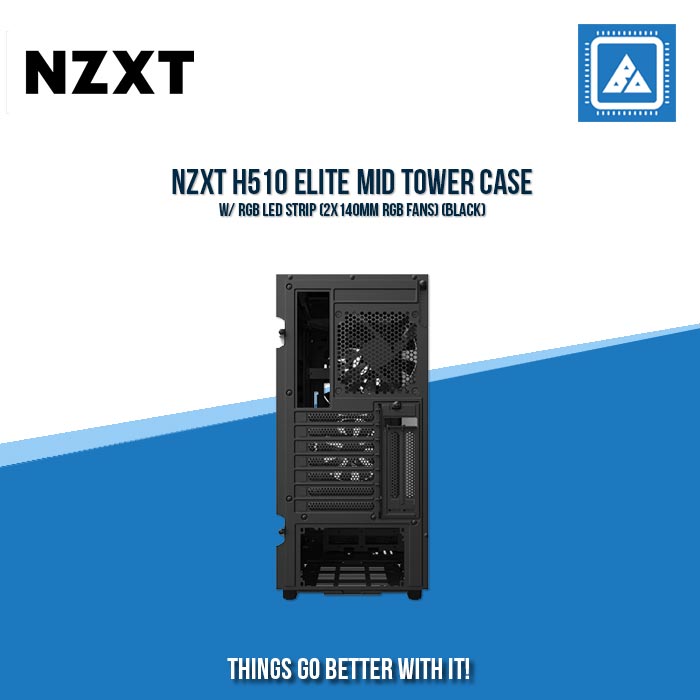

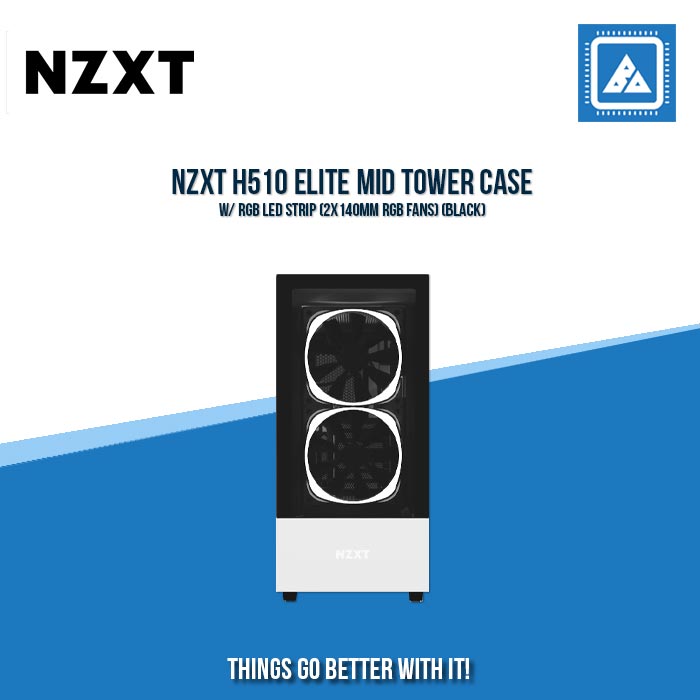

- NZXT H510 ELITE MID TOWER CASE W/ RGB LED STRIP (2X140MM RGB FANS) (BLACK) NZXT H510 ELITE MID TOWER CASE W/ RGB LED STRIP (2X140MM RGB FANS) (BLACK)
- Description
- Reviews
KEY SPECS
-
Motherboard Support:Mini-ITX, MicroATX, ATX
-
Enclosure Type:Compact Mid-Tower
-
Case Material:SGCC Steel, Dark Tinted Tempered Glass
DIMENSIONS
-
Height:460mm / 18.11 inches
-
Width:210mm / 8.27 inches
-
Depth:428mm / 16.85 inches
-
Weight:7.5 kg / 16.53 lb
COMPATIBILITY & CLEARANCE
-
Max CPU Cooler Clearance:165mm
-
Max GPU Clearance:338 - 368mm
-
Front Fan & Radiator Clearance:60mm
-
Vertical GPU Clearance:50.8mm
-
Cable Management:19 - 23mm
FRONT I/O PORTS
-
USB 3.2 Gen 2 Type-A:1
-
USB 3.2 Gen 1 Type-C:1
-
Headset Audio Jack:1
SMART DEVICE
-
Fan Channels:3 (10W max per channel)
-
NZXT RGB Connector:2 (Support up to 40 LEDs)
EXPANSION SLOTS
-
Standard:7
-
Vertical:2
DRIVE BAYS
-
2.5":2 + 1
-
3.5":2 + 1
FAN SUPPORT
-
Front:2 x 120mm / 2 x 140mm
-
Top:1 x 120mm / 1 x 140mm
-
Rear:1 x 120mm
-
Filters:All air intakes
RADIATOR SUPPORT
-
Front:280mm
-
Top:-
-
Rear:120mm
FAN SPECS
-
Model:Aer RGB 2 140mm
-
Speed:500 - 1,500 ± 300RPM
-
Airflow:30.39 - 91.19 CFM
-
Static Pressure:0.17 - 1.52 mm-H₂O
-
Noise:22 - 33 dBA
-
Fan Connector:4-pin PWM
FAN SPECS
-
Model:Aer P 140mm (Case Version)
-
Speed:1,000 ± 200RPM
-
Airflow:68.95 CFM
-
Noise:28 dBA
-
Fan Connector:3-pin
FAN SPECS
-
Model:Aer P 120mm (Case Version)
-
Speed:1,200 ± 200RPM
-
Airflow:50.42 CFM
-
Noise:28 dBA
-
Fan Connector:3-pin
