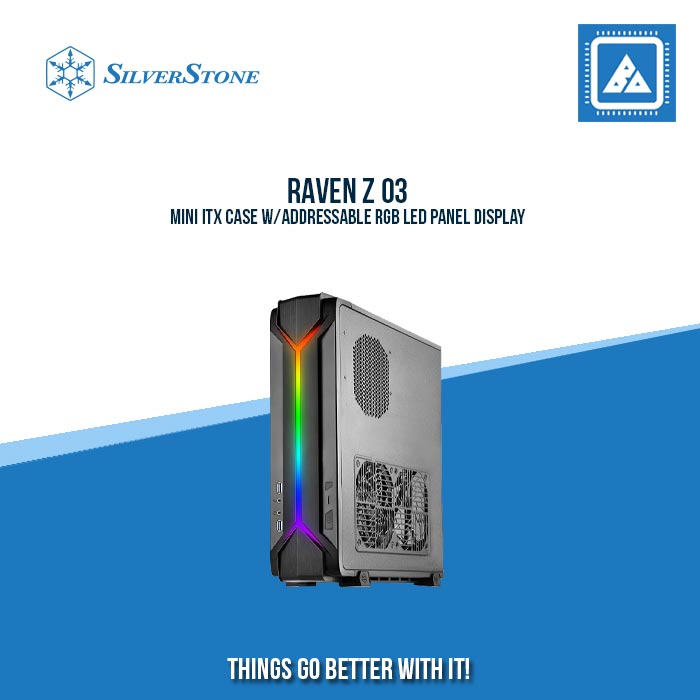

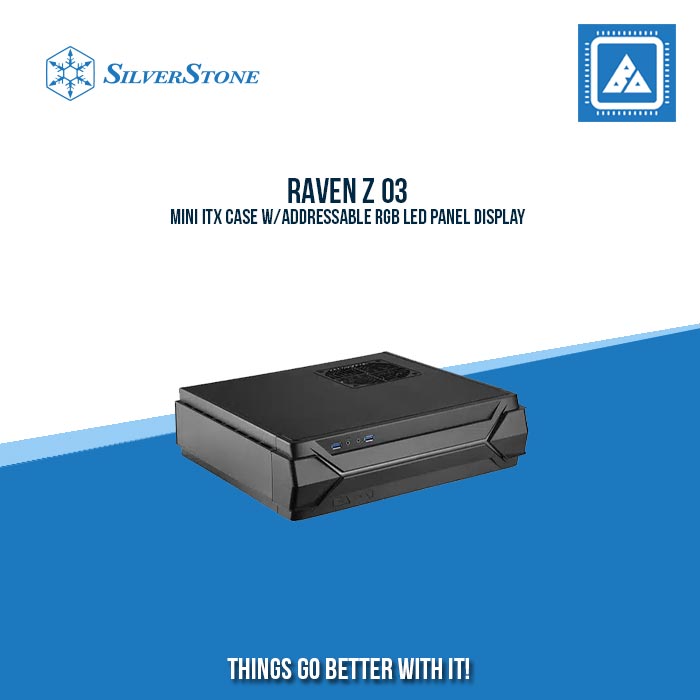

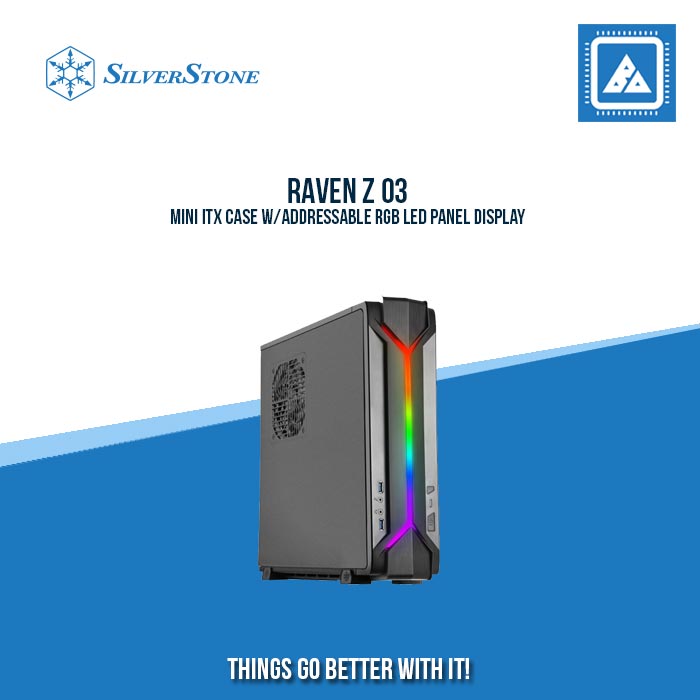

Raven Z 03 Mini ITX Case, a sleek and compact chassis that brings style and performance to your mini-ITX builds. This case features a striking black exterior and boasts an eye-catching addressable RGB LED panel display that allows you to customize your PC's aesthetics with a dazzling light show. Despite its small form factor, it offers excellent cooling support with included fans, ensuring your components stay cool under pressure. With a design that maximizes space efficiency and supports a range of hardware, the Raven Z 03 is perfect for those who desire both performance and a visually stunning PC setup. Elevate your computing experience with this remarkable mini-ITX case and showcase your build in style with its captivating RGB LED panel.
SPECIFICATIONS
| Model No. | SST-RVZ03B (black) SST-RVZ03W (white) |
|
| Material | Reinforced plastic outer shell, steel body | |
| Motherboard | Mini-DTX, Mini-ITX | |
| Drive bay | External | -- |
| -- | ||
| Internal | 2.5" x 4* | |
| Cooling system | Front | -- |
| Rear | -- | |
| Side | -- | |
| Top | 1 x 120mm fan, 1500rpm, 18dBA | |
| Bottom | 1 x 120mm fan, 1500rpm, 18dBA 1 x 120mm fan slot |
|
| Internal | -- | |
| Expansion slot | 2 | |
| Front I/O port | USB 3.0 x 2 audio x 1 MIC x 1 |
|
| Power supply | Optional PS2(ATX) | |
| Expansion card | Compatible up to 13" (330mm) long, width restriction-5.88" (149mm) | |
| Limitation of CPU cooler | 83mm | |
| Limitation of PSU | 150mm** | |
| Net weight | 4.05 kg | |
| Dimension | 382mm (W) x 105mm (H) x 364mm (D), 14.6 Liters 15.04" (W) x 4.13" (H) x 14.33" (D), 14.6 Liters |
|
| Extra | Support Kensington lock, PCI Express riser card set x 1 (V1.3) | |
