SPECIFICATIONS
| Model No. | SST-RL06BR-W (black with red trim + acrylic window) SST-RL06BR-PRO (black with red trim + LED fans + acrylic window) SST-RL06BR-G (black with red trim + tempered glass window) SST-RL06BR-GP (black with red trim + LED fans + tempered glass window) SST-RL06WS-W (white with silver trim + acrylic window) SST-RL06WS-PRO (white with silver trim + LED fans + acrylic window) SST-RL06WS-G (white with silver trim + tempered glass window) SST-RL06WS-GP (white with silver trim + LED fans + tempered glass window) |
|
| Material | Plastic panel, steel body, tempered glass side panel (G & GP versions only)* | |
| Motherboard | ATX (up to 12" x 10.2"), Micro-ATX | |
| Drive bay | External | None |
| -- | ||
| 3.5" Internal | 3.5" x 3 (compatible with 2.5") | |
| 2.5" Internal | 2.5” (5 ~ 15mm) x 2 | |
| Cooling system | Front | 120mm LED fan x 3 (PRO & GP versions only) or 140mm fan slot x 2 |
| Rear | 120mm fan x 1 | |
| Side | -- | |
| Top | 120 / 140mm fan slot x 2 | |
| Bottom | -- | |
| Internal | -- | |
| Radiator support | Front | 120mm / 140mm / 240mm x 1 |
| Rear | 120mm x 1 | |
| Top | 120mm / 240mm x 1 (1<30mm)** | |
| Bottom | N/A | |
| Expansion slot | 7 | |

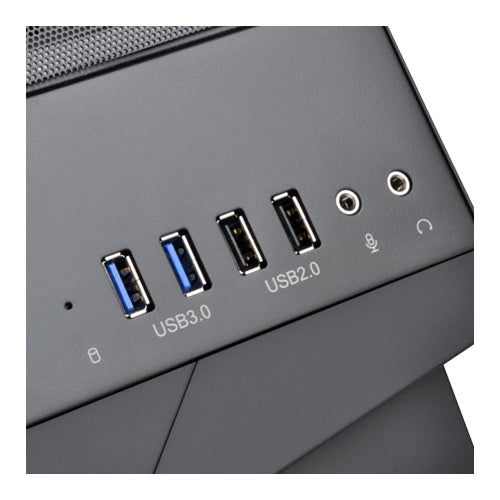

| Front I/O port | USB 2.0 x 2 USB 3.0 x 2 Audio x 1 MIC x 1 |
|
| Power supply | Standard PS2(ATX) | |
| Expansion card | Support graphics card up to 13.7" (348mm), width restriction - 6" (152mm) | |
| Limitation of CPU cooler | 160mm 162mm (PRO & GP) |
|
| Limitation of PSU | 200mm | |
| Net weight | 6 kg (standard version) 6.3 kg (PRO version) 6.87 kg (G version) 7.17 kg (GP version) |
|
| Dimension | 200mm (W) x 477mm (H) x 455mm (D), 43.4 Liters 7.87" (W) x 18.78" (H) x 17.91" (D), 43.4 Liters |
|
