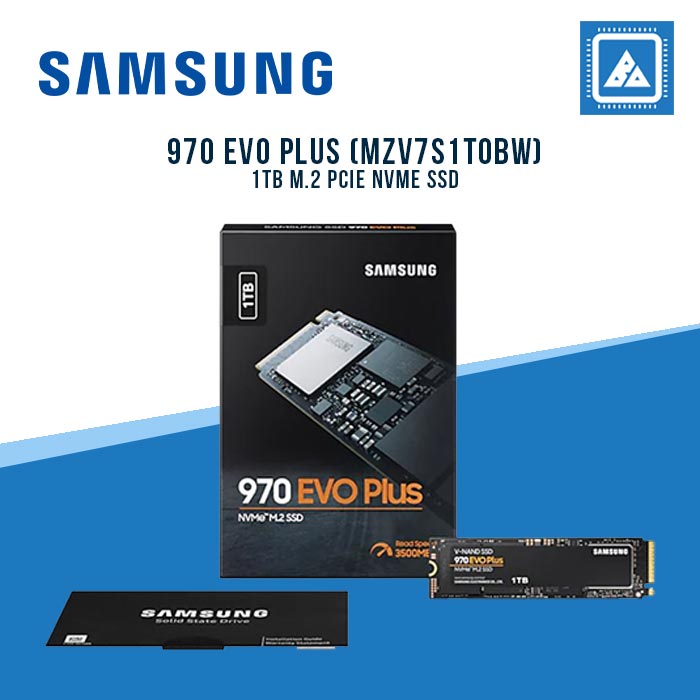

- SAMSUNG 1TB M.2 PCIE NVME SSD 970 EVO PLUS (MZV7S1T0BW) SAMSUNG 1TB M.2 PCIE NVME SSD 970 EVO PLUS (MZV7S1T0BW)
- Description
- Reviews
- Samsung’s latest V-NAND technology
- Dynamic Thermal Guard
- Intelligent TurboWrite
Specifications
-
InterfacePCIe Gen 3.0 x 4, NVMe 1.3
-
Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
-
Sequential WriteUp to 3,300 MB/s * Performance may vary based on system hardware & configuration
-
Warranty5-Year Limited Warrantyor 600 TBW Limited Warranty
-
ApplicationClient PCs
-
WeightMax 8.0 g Weight
General Feature
- ApplicationClient PCs
- Rated Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Form FactorM.2 (2280)
- InterfacePCIe Gen 3.0 x 4, NVMe 1.3
- Dimension (WxHxD)80.15 x 22.15 x 2.38 (mm)
- WeightMax 8.0 g Weight
- Storage MemorySamsung V-NAND 3-bit MLC
- ControllerSamsung Phoenix Controller
- Cache MemorySamsung 1GB Low Power DDR4 SDRAM
Special Feature
- TRIM SupportSupported
- S.M.A.R.T SupportSupported
- GC (Garbage Collection)Auto Garbage Collection Algorithm
- Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
- WWN SupportNot supported
- Device Sleep Mode SupportYes
Performance
- Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
- Sequential WriteUp to 3,300 MB/s * Performance may vary based on system hardware & configuration
- Random Read (4KB, QD32)Up to 600,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD32)Up to 550,000 IOPS * Performance may vary based on system hardware & configuration
- Random Read (4KB, QD1)Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD1)Up to 60,000 IOPS * Performance may vary based on system hardware & configuration
Environment
- Average Power Consumption (system level)* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
- Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage3.3 V ± 5 % Allowable voltage
- Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
- Operating Temperature0 - 70 ℃ Operating Temperature
- Shock1,500 G & 0.5 ms (Half sine)
Accessories
- Installation KitNot Available
Software
- Management SWMagician Software for SSD management
