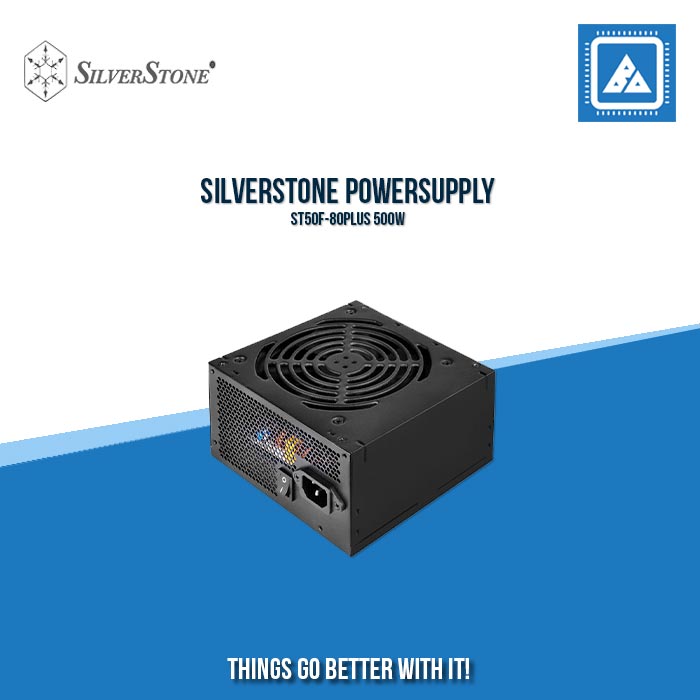

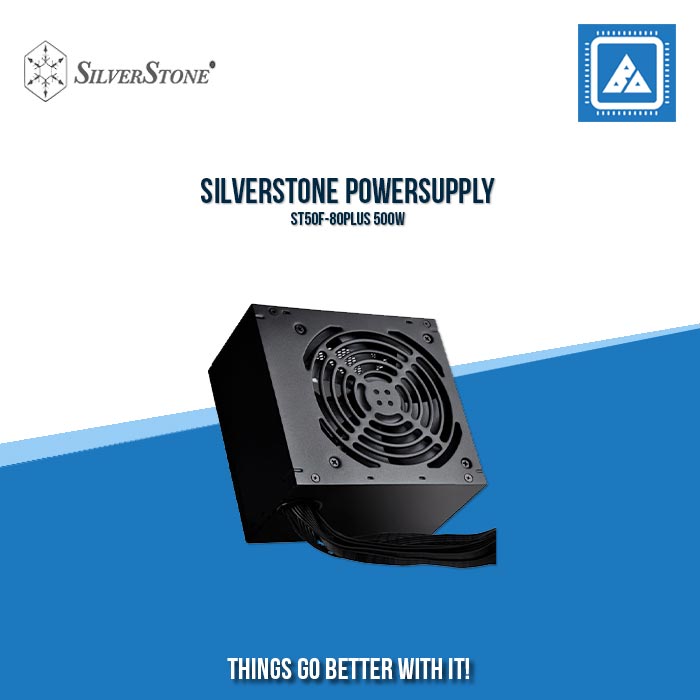

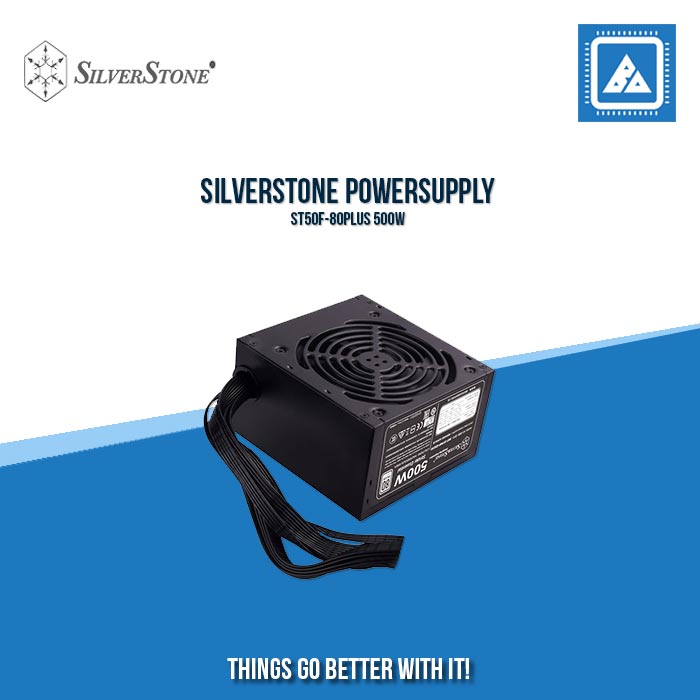

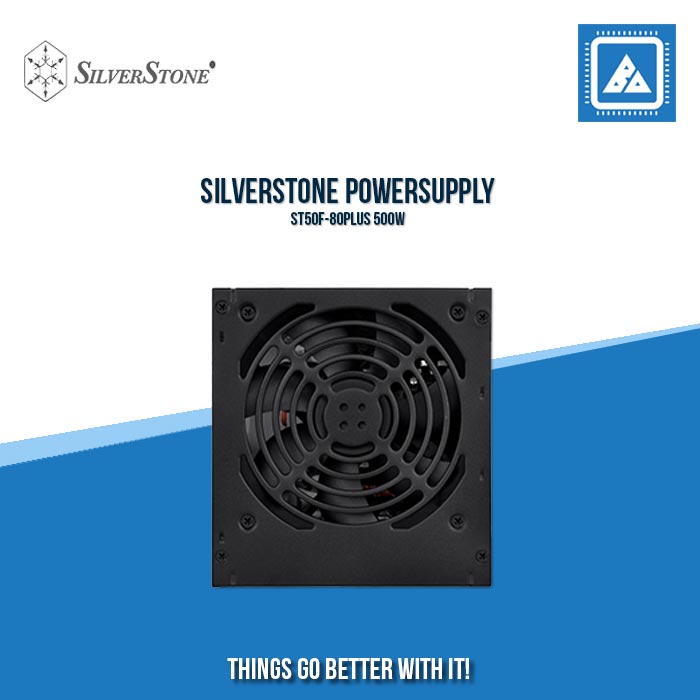

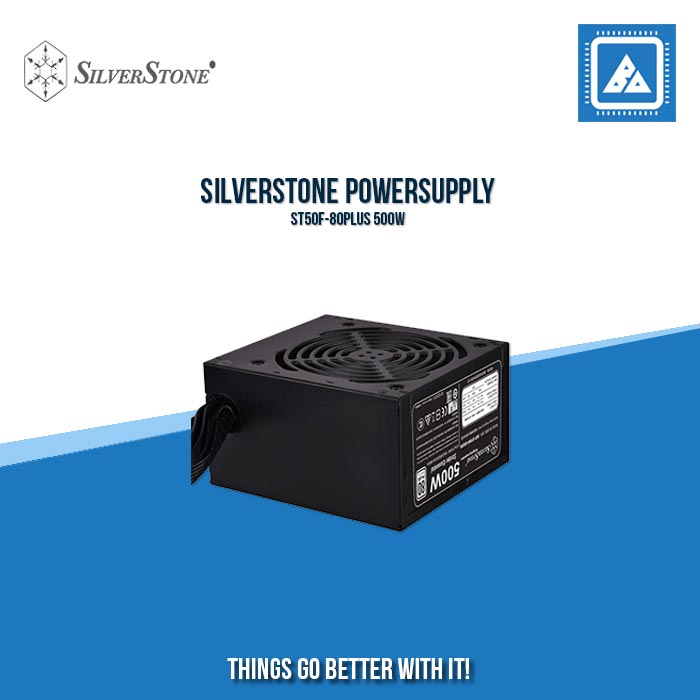

SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W
SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W

SILVERSTONE ST50F-ES230 STRIDER ESSENTIAL 500W

Product SKU: N/A
Available:
Only 4 items in stock
4 items in stock
In stock
Out of stock
Back in stock
Wishlist Compare
₱2,100.00
₱3,100.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
Product Specifications
Product No.
SST-ST50F-ES230-BK
Max. DC Output
500W
Power density
277W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 18A 17A 38A 2.5A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
110W
Combined +12V
456W
Input Voltage
180 ~ 264Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.（PF>0.9 at Full Load）
Efficiency
82%~85% @ 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
2 x 8 / 6-Pin PCIE connector（"500mm / 150mm"）
2 x SATA connector and
1 x 4-Pin Peripheral connector and
1 x 4-Pin Floppy connector （500mm / 150mm / 150mm / 150mm）
2 x SATA connector and
2 x 4-Pin Peripheral connector（500mm / 150mm / 150mm / 150mm）
Cooling System
Silent 120mm fan
Noise Level
18 dBA minimum
Certification
80 PLUS
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.31kg
