Specifications
| Model No. | SST-ST1000-PTS |
| Max. DC Output | 1000W |
| Power density | 554W per liter |
| Load Range | +3.3V, +5V, +12V, +5VSB, -12V |
| Max.(Amps) | 25A , 22A, 83A, 3A, 0.3A |
| Min.(Amps) | 0A, 0A, 0.15A, 0A, 0A |
| Range (%) | ±3%, ±3%, ±3%, ±5%, ±10% |
| Line Reg.(%) | ±1%, ±1%, ±1%, ±1%, ±1% |
| Ripple(mVp-p) | 50mV, 50mV, 120mV, 50mV, 120mV |
| Color | Black（Lead-Free Paint） |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 996W |
| Input Voltage | 90V~264V |
| Input Frequency Range | 47Hz~63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 89%~92% at 20%~100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection Over current protection Over voltage protection Over Temperature protection Under voltage protection Short circuit protection |

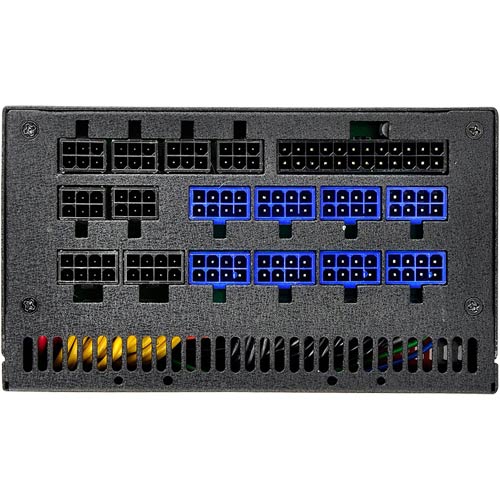

| Connectors | 1 x 24 / 20-Pin motherboard connector（”600mm”） 1 x 8 / 4-Pin EPS / ATX 12V connector（”550mm”） 1 x 8 / 4-Pin EPS / ATX 12V connector（”750mm”） 8 x 8 / 6-Pin PCIE connector（”550mm/150mm” X4） 8 x SATA connector（"600mm /150mm / 150mm / 150mm" X2） 6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” X2） 2 x 4-Pin Floppy connector（”150mm” X2） |

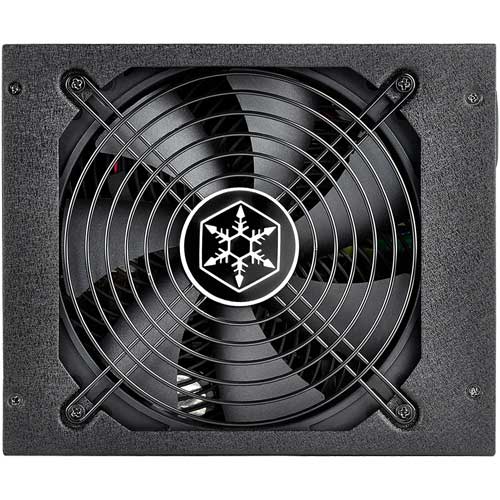

| Cooling System | Single 120mm HYB fan |
| Form factor | ATX |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 1.98kg |
| Certification | 80 PLUS Platinum |
| Other | GPU Support list Compatible with ATX12V v2.4 |
