- ATX12V / EPS12V
- Ultra Flexible Ribbon Cables & 80 PLUS Gold Certified
- LLC + DC-DC design ensures overall system stability and performance.
- 5 Years Warranty
- +3.3V@20A, +5V@20A, +12V@62A, -12V@0.5A, +5Vsb@3A
Features
LEGION HX series are 80+ Gold certified with ultra flexible ribbon fixed cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
It provides high efficiency & stable power output and come with a 12cm cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
It provides high efficiency & stable power output and come with a 12cm cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦ All Ultra Flexible Ribbon Cables For Easy Cable Management.
♦ 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
♦ 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦ Comply With ATX 12V v2.52, EPS 12V v2.92 Specification.
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
♦ Fourth-Generation Intel® Haswell™ CPU Compatible.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦ More than 2,000 times On / Off test.
♦ Lead-Free Green Materials with RoHS / WEEE Compliance.
♦ Full Range Auto Voltage Detection Design from 100-240V(Active PFC).
♦ Japanese 105°C Main Capacitor.
♦ LLC Resonant Converter With DC-DC Platform.
♦ German well-known Brand “infineon” Low Rds (on) Cool Mos.
♦ Patent Core Enhancing Overall Efficiency.
♦ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
♦ New Patented Technology Of (20+4) Pin Connector.
♦ Perfect For Professional & High Performance Gaming System
♦ Exclusive Patent (Taiwan & China Patents Approved. USA, Germany & Japan Patents Pending)
1.Multi Patent Pending Extreme High Efficiency Main Transformer (Taiwan Patent no: I641006 ;China Patent no: 201410414373.3 )
2.Dual Voltage Circuit with Intelligence Thermal Control System (Taiwan Patent No:M381102)
♦ Comply With ATX 12V v2.52, EPS 12V v2.92 Specification.
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
♦ Fourth-Generation Intel® Haswell™ CPU Compatible.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦ More than 2,000 times On / Off test.
♦ Lead-Free Green Materials with RoHS / WEEE Compliance.
♦ Full Range Auto Voltage Detection Design from 100-240V(Active PFC).
♦ Japanese 105°C Main Capacitor.
♦ LLC Resonant Converter With DC-DC Platform.
♦ German well-known Brand “infineon” Low Rds (on) Cool Mos.
♦ Patent Core Enhancing Overall Efficiency.
♦ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
♦ New Patented Technology Of (20+4) Pin Connector.
♦ Perfect For Professional & High Performance Gaming System
♦ Exclusive Patent (Taiwan & China Patents Approved. USA, Germany & Japan Patents Pending)
1.Multi Patent Pending Extreme High Efficiency Main Transformer (Taiwan Patent no: I641006 ;China Patent no: 201410414373.3 )
2.Dual Voltage Circuit with Intelligence Thermal Control System (Taiwan Patent No:M381102)
Specification
| Model No. | SF-750P14XE(HX) | |
| Transform Efficiency | >87% 90% 87% Efficiency At 20% 50% 100% Rated Load (115V) | |
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 2.52 | |
| AC Input | Frequency | 100-240V | 60 / 50Hz , Full Range APFC | |

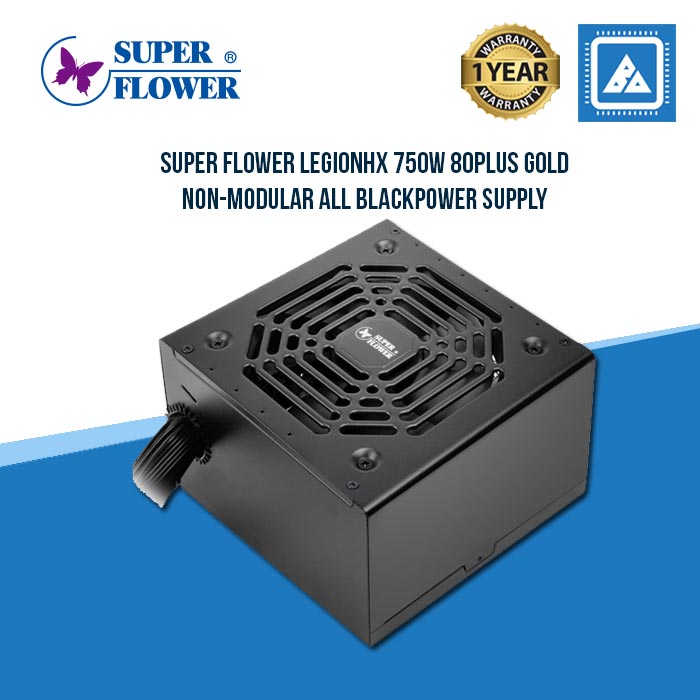

| Fan Size | 120mm H.L.B. Silent Fan | |
| Dimension | 140(D) x 150(W) x 86(H) mm | |
| Protection | OVP / OCP / OPP / OTP / SCP / UVP / NLO / SIP | |
| Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / EAC / KCC / RoHS | |
| Temperature | Passed 50℃ Hot Testing | |
| Cable Wires | ||
| 20+4 Pin | Fixed Cables | One Cable (600mm) |
| 8(4+4) Pin CPU | Two Cables (700mm) | |
| SLI (2 x PCI 6+2 Pin) | Two Cables (550+150mm) | |
| 4 SATA | One Cable (550+130+130+130mm) | |
| 3 SATA | One Cable (550+130+130mm) | |
| 4 Molex | One Cable (550+150+150+150mm) | |

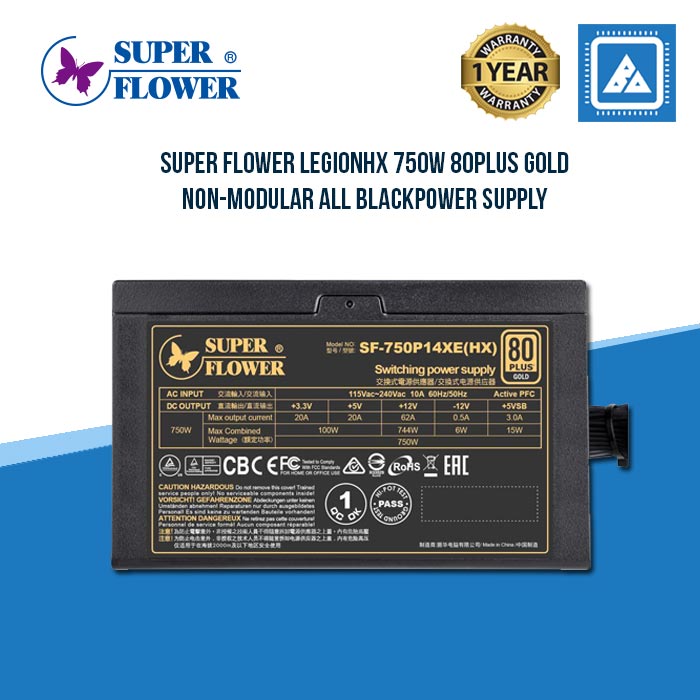

| model no.: SF-750P14XE(HX) | ||||||
| AC INPUT | 115-240V~ 10A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 750W | Max output Current | 20A | 20A | 62A | 0.5A | 3.0A |
| Max combined Wattage | 100W | 744W | 6W | 15W | ||
|
750W |
||||||
