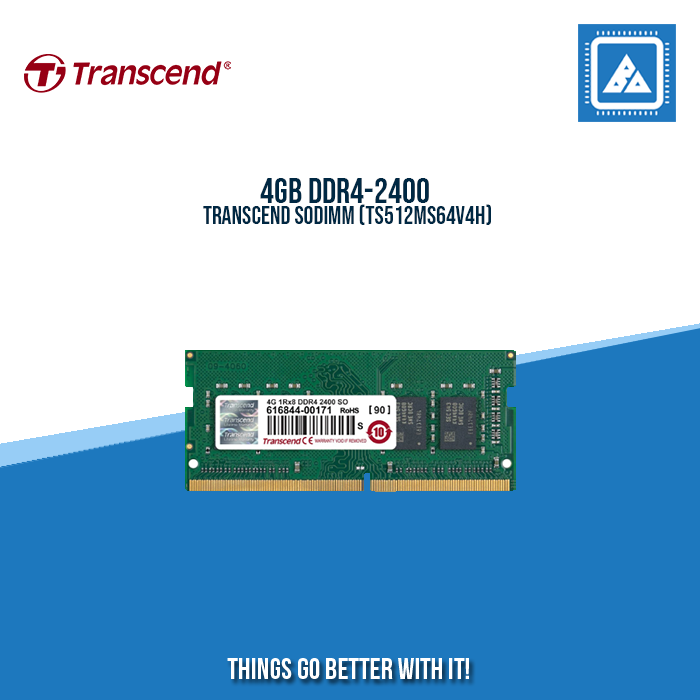

4GB DDR4-2400 TRANSCEND SODIMM (TS512MS64V4H)

1. RAM Type: DDR4

   • DDR4 stands for Double Data Rate 4, which is the fourth generation of DDR RAM. It offers improvements over previous generations, such as higher speed and efficiency.

2. DIMM Type: Unbuffered SO-DIMM

   • SO-DIMM stands for Small Outline Dual In-line Memory Module. These are typically used in laptops and compact systems. "Unbuffered" indicates that the module does not include a buffer or register, which is common for consumer-grade memory.

3. Speed: 2400

   • This indicates the data transfer rate, measured in MT/s (Megatransfers per second). DDR4-2400 means the RAM can transfer data at a rate of 2400 MT/s.

4. CAS Latency: CL17

   • CAS Latency (Column Address Strobe Latency) is the delay time between the memory controller sending a request and the RAM responding. CL17 means the latency is 17 clock cycles.

5. Capacity: 4GB

   • This is the total storage capacity of the RAM module, which is 4 Gigabytes.

6. Rank x Org.: 1Rx8

   • This indicates the rank and organization of the memory. "1Rx8" means the module has a single rank (1R) and each chip has an 8-bit wide data bus (x8).

7. Component Composition: (512Mx8)x8

   • This specifies the internal organization of the memory chips. Each chip has a density of 512 Megabits by 8 bits (512Mx8), and there are 8 such chips on the module.

8. Voltage: 1.2V

   • This is the operating voltage of the RAM module, which is 1.2 volts, standard for DDR4 memory.

9. Pin Count: 260 pin

   • The module has 260 pins that connect it to the motherboard.

10. PCB Height: 1.18 inches

    • The height of the printed circuit board (PCB) is 1.18 inches.

11. PCB Gold Finger Thickness: 30 µ”

    • This indicates the thickness of the gold plating on the connector pins, which is 30 microinches.

12. Anti-Sulfuration: Default

    • The anti-sulfuration feature protects the module from sulfur-induced corrosion, which can be crucial in certain environments. "Default" suggests this feature is included in the standard configuration.

This RAM module is suitable for laptops and compact systems requiring DDR4 memory, offering moderate speed and capacity with standard consumer-grade features.
